T41305 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

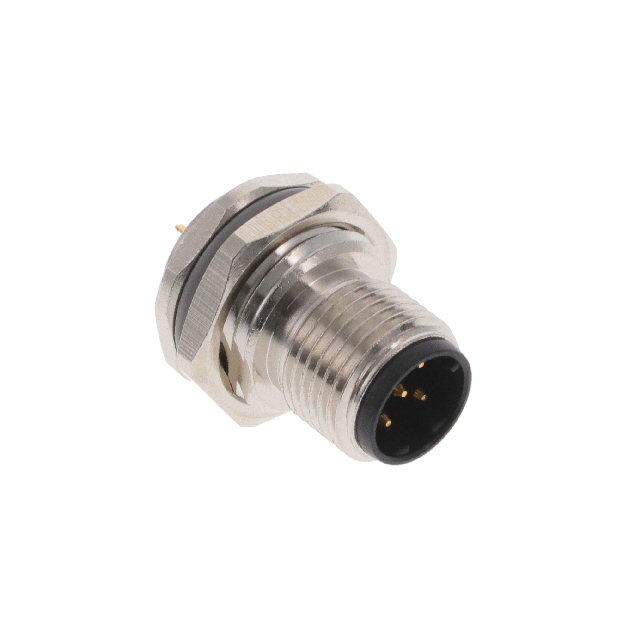

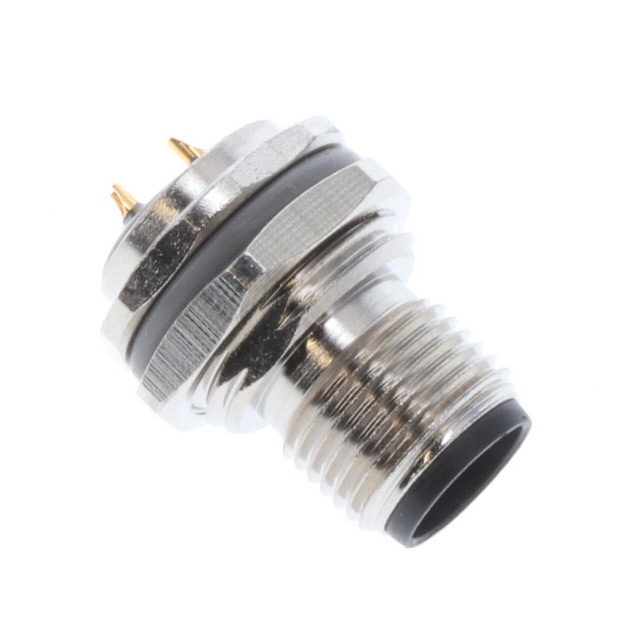

CONN CIRCULAR PIN 4 POS SOLDER CUP ST PANEL MOUNT 4 TERMINAL 1 PORT
| Part | Ingress Protection | Shell Finish | Voltage Rating | Shell Material | Fastening Type | Current Rating (Amps) | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Shell Size - Insert | Mounting Type | Shielding | Insert Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Material Flammability Rating | Contact Material | Primary Material | Mounting Feature | Contact Finish - Mating | Applications | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | IP67 - Dust Tight Waterproof | Nickel | 250 V | Copper Alloy | Threaded | 4 A | Receptacle Male Pins | 0.076 µm | 3 µin | D | M12-3 | Panel Mount | Unshielded | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | Silver | UL94 V-0 | Copper Alloy | Metal | Bulkhead - Front Side Nut | Gold | Industrial | |
 TE Connectivity AMP Connectors | IP67 - Dust Tight Waterproof | Nickel | 60 VDC | Copper Alloy | Threaded | 4 A | Receptacle Male Pins | 0.076 µm | 3 µin | D | M12-5 | Panel Mount | Unshielded | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | Silver | UL94 V-0 | Copper Alloy | Metal | Bulkhead - Front Side Nut | Gold | Industrial | 5 |
 TE Connectivity AMP Connectors | IP67 - Dust Tight Waterproof | Nickel | 250 V | Copper Alloy | Threaded | 4 A | Receptacle Male Pins | 0.076 µm | 3 µin | D | M12-4 | Panel Mount | Unshielded | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | Silver | UL94 V-0 | Copper Alloy | Metal | Bulkhead - Front Side Nut | Gold | Industrial | 4 |
 TE Connectivity AMP Connectors | IP67 - Dust Tight Waterproof | Nickel | 250 V | Copper Alloy | Threaded | 4 A | Receptacle Male Pins | 0.076 µm | 3 µin | D | M12-2 | Panel Mount | Unshielded | Nylon 6/6 Polyamide (PA66) | 85 °C | -40 C | Silver | UL94 V-0 | Copper Alloy | Metal | Bulkhead - Front Side Nut | Gold | Industrial | 2 |
