68000 Series

Catalog

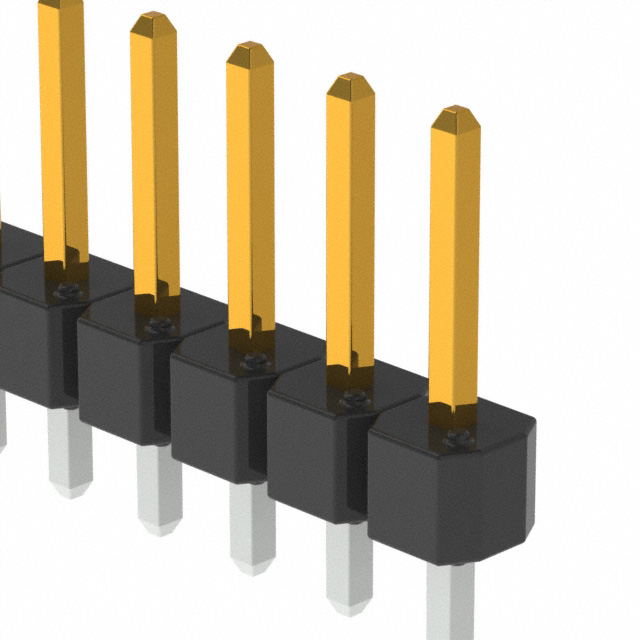

CONN HEADER VERT 36000POS 2.54MM

...

Part	Contact Material	Contact Length - Mating [x]	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Shape	Insulation Color	Insulation Height	Insulation Height	Insulation Material	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Number of Positions	Fastening Type	Number of Positions

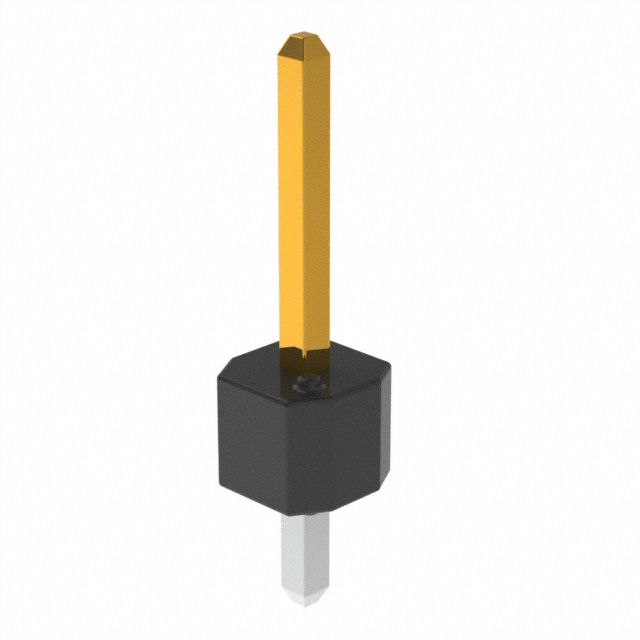

Amphenol ICC (FCI) 68000-100H	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Unshrouded	30 Áin	0.76 Ám	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A	Tin	Cuttable	Push-Pull

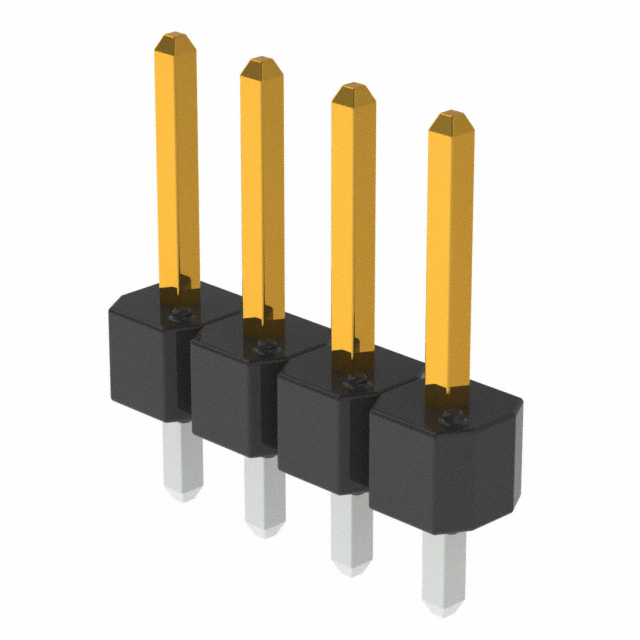

Amphenol ICC (FCI) 68000-204	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	15 µin	0.38 µm	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	4
Amphenol ICC (FCI) 68000-230HLF	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	15 µin	0.38 µm	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	30
Amphenol ICC (FCI) 68000-223HLF	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	15 µin	0.38 µm	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	23
Amphenol ICC (FCI) 68000-100HLF	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Unshrouded	30 Áin	0.76 Ám	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A	Tin	Cuttable	Push-Pull

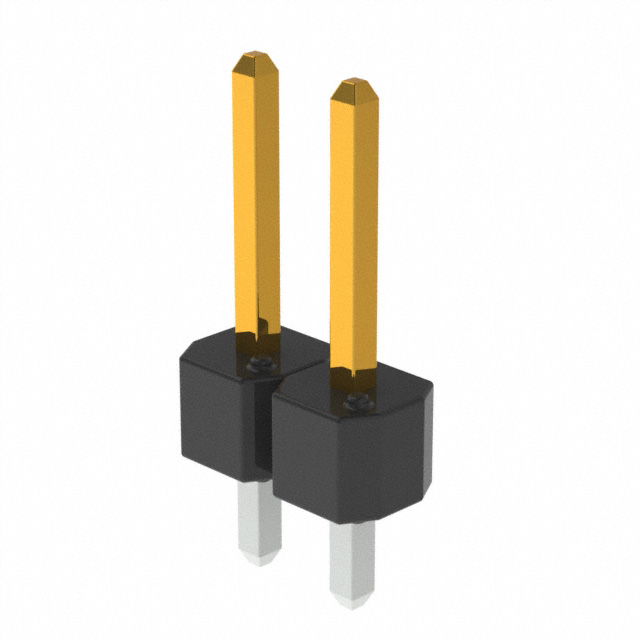

Amphenol ICC (FCI) 68000-602H	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	30 Áin	0.76 Ám	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	2
Amphenol ICC (FCI) 68000-129HLF	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	30 Áin	0.76 Ám	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	29
Amphenol ICC (FCI) 68000-102H	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	30 Áin	0.76 Ám	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	2
Amphenol ICC (FCI) 68000-302HLF	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	50 µin	1.27 µm	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	2
Amphenol ICC (FCI) 68000-606H	Phosphor Bronze	0.23 in	5.84 mm	125 °C	-65 ░C	1	UL94 V-0	0.1 in	2.54 mm	Square	Black	0.1 in	2.54 mm		Unshrouded	30 Áin	0.76 Ám	All	Header	Gold or Gold GXT™	Solder	2.41 mm	0.095 in	Male Pin	Through Hole	3 A			Push-Pull	6
