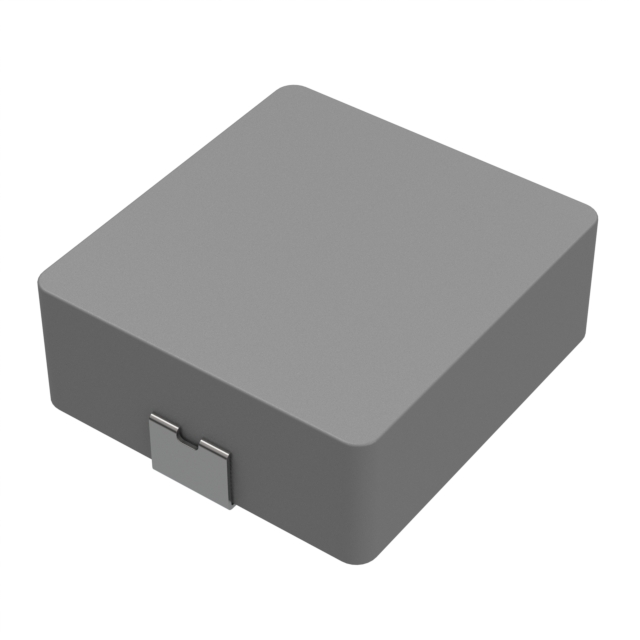

CMLB136T Series

Catalog

FIXED IND 100UH 3A 198 OHM SMD

Part	Shielding	Inductance Frequency - Test	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	Material - Core	DC Resistance (DCR) (Max)	Current - Saturation (Isat)	Package / Case	Height - Seated (Max)	Mounting Type	Inductance	Current Rating
Delta Electronics/Cyntec CMLB136T-101MS	Shielded	100 kHz	0.496 in	0.53 in	125 °C	-55 °C	20 %	Metal	198 mOhm	3.5 A	Nonstandard	0.236 in	Surface Mount	100 µH	3 A
Delta Electronics/Cyntec CMLB136T-220MS	Shielded	100 kHz	0.496 in	0.53 in	125 °C	-55 °C	20 %	Metal	39 Ohm	6.9 A	Nonstandard	0.236 in	Surface Mount	22 µH	7 A
Delta Electronics/Cyntec CMLB136T-470MS	Shielded	100 kHz	0.496 in	0.53 in	125 °C	-55 °C	20 %	Metal	88 Ohm	5.2 A	Nonstandard	0.236 in	Surface Mount	47 µH	4.5 A
Delta Electronics/Cyntec CMLB136T-330MS	Shielded	100 kHz	0.496 in	0.53 in	125 °C	-55 °C	20 %	Metal	70 Ohm	5.4 A	Nonstandard	0.236 in	Surface Mount	33 µH	5 A
Delta Electronics/Cyntec CMLB136T-150MS	Shielded	100 kHz	0.496 in	0.53 in	125 °C	-55 °C	20 %	Metal	27.5 Ohm	9 A	Nonstandard	0.236 in	Surface Mount	15 µH	8 A
Delta Electronics/Cyntec CMLB136T-100MS	Shielded	100 kHz	0.496 in	0.53 in	125 °C	-55 °C	20 %	Metal	20.7 Ohm	11.5 A	Nonstandard	0.236 in	Surface Mount	10 µH	10 A
