PNG.M1 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 14P SOLDER CUP

Part	Applications	Shielding	Mounting Type	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Shell Size - Insert	Shell Material	Orientation [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Primary Material	Mounting Feature	Color	Ingress Protection	Fastening Type	Insert Material
LEMO PNG.M1.4GL.LG	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Panel Mount	Gold	2 A	14	M14	Polysulfone (PSU)	G	90 °C	-50 °C	Receptacle Female Sockets	Plastic	Bulkhead - Rear Side Nut	Gray	IP64 - Dust Tight Water Resistant	Detent Lock Push-Pull	Polyetheretherketone (PEEK)
LEMO PNG.M1.0SL.LG	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Panel Mount	Gold	3 A	10	M10	Polyetherimide (PEI)	G	170 °C	-50 °C	Receptacle Female Sockets	Plastic	Bulkhead - Rear Side Nut	Gray	IP64 - Dust Tight Water Resistant	Detent Lock Push-Pull	Polyetheretherketone (PEEK)

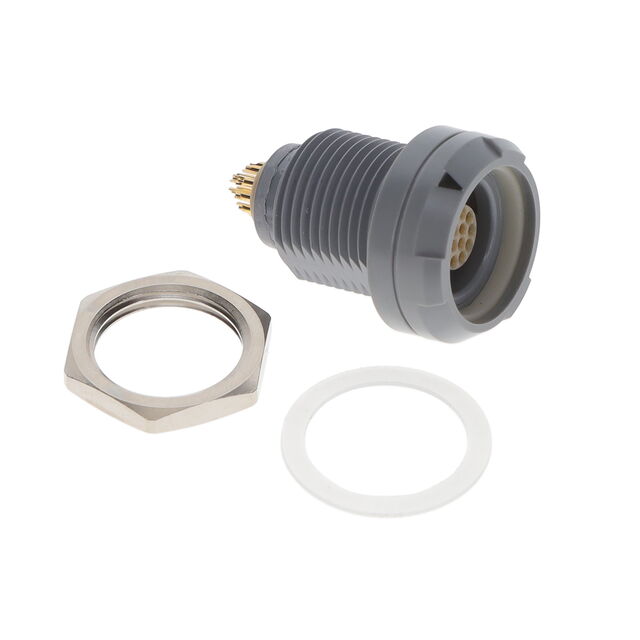

LEMO PNG.M1.4SL.LG	Automotive Industrial Medical Testing Equipment & Measurement	Unshielded	Panel Mount	Gold	2 A	14	M14	Polyetherimide (PEI)	G	170 °C	-50 °C	Receptacle Female Sockets	Plastic	Bulkhead - Rear Side Nut	Gray	IP64 - Dust Tight Water Resistant	Detent Lock Push-Pull	Polyetheretherketone (PEEK)
