1634220 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN D-SUB PLUG 25POS VERT SLDR
| Part | Voltage Rating | Features | Connector Style | Termination | Material Flammability Rating | Number of Rows | Contact Finish | Mounting Type | Color | Shell Material, Finish | Contact Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

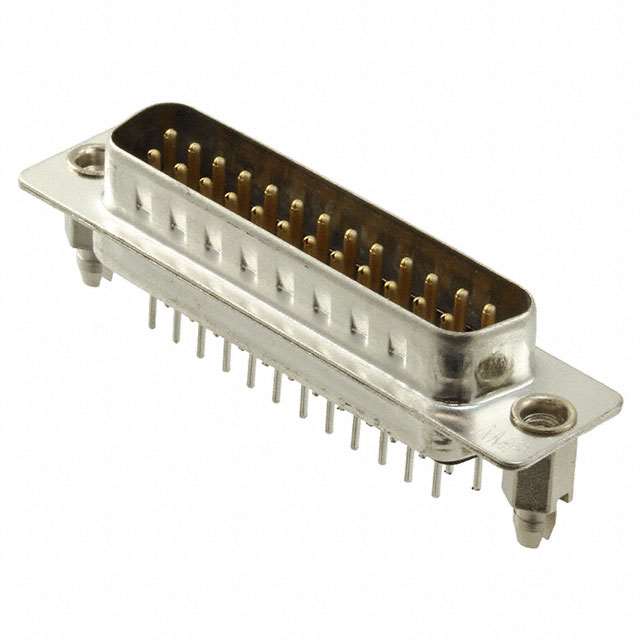

 TE Connectivity Raychem Cable Protection | 250 VDC | Board Lock Grounding Indents | D-Sub | Solder | UL94 V-0 | 2 | Gold | Through Hole | Black | Nickel Plated Steel | Signal | Housing/Shell (4-40) | 15 µin | 0.38 µm | Brass | Thermoplastic | B DB | 3 | 105 ░C | -55 °C | 3 A | Male Pins Plug |

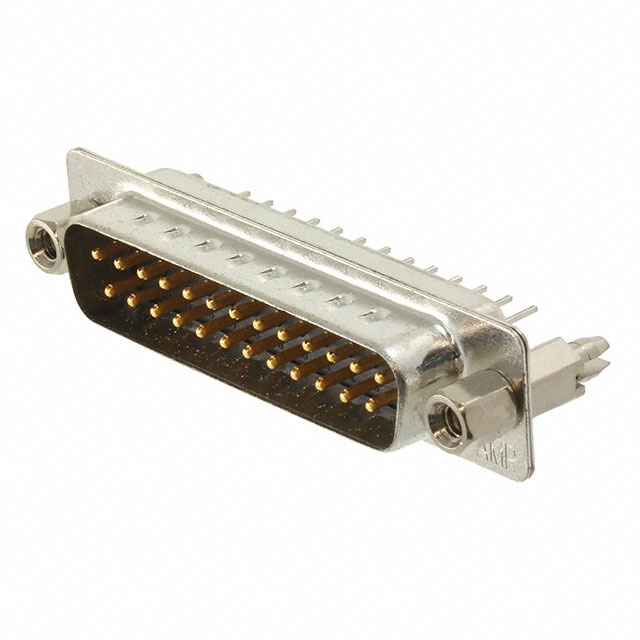

 TE Connectivity Raychem Cable Protection | 250 VDC | Board Lock Grounding Indents | D-Sub | Solder | UL94 V-0 | 2 | Gold | Through Hole | Black | Nickel Plated Steel | Signal | Female Screwlock (4-40) Mating Side | 15 µin | 0.38 µm | Brass | Thermoplastic | B DB | 3 | 105 ░C | -55 °C | 3 A | Male Pins Plug |
