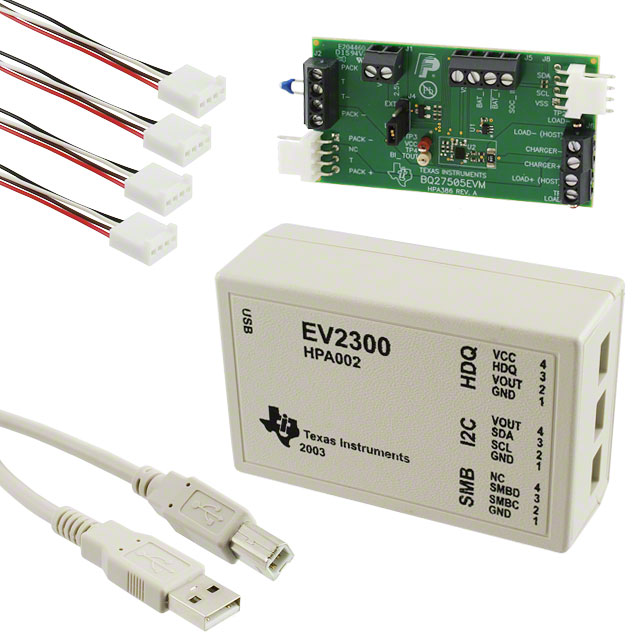

BQ27505-J3 Series
System-side Impedance Track™; fuel gauge with FW v2.29
Manufacturer: Texas Instruments
Catalog
System-side Impedance Track™; fuel gauge with FW v2.29
Key Features
• Battery Fuel Gauge for 1-Series Li-Ion ApplicationsResides on System Main BoardWorks With Embedded or Removable Battery PacksUses PACK+, PACK-, and T Battery TerminalsMicrocontroller Peripheral Provides:Accurate Battery Fuel GaugingInternal Temperature Sensor for Battery Temperature ReportingBattery Low Interrupt WarningBattery Insertion IndicatorConfigurable Level of State of Charge (SOC) InterruptsState of Health Indicator96 Bytes of Non-Volatile Scratch-Pad FLASHBattery Fuel Gauge Based on Patented Impedance Track™ TechnologyModels the Battery Discharge Curve for Accurate Time-to-Empty PredictionsAutomatically Adjusts for Battery Aging, Battery Self-Discharge, and Temperature/Rate InefficienciesLow-Value Sense Resistor (10 mW or Less)400-kHz I2C™ Interface for Connection to System Microcontroller PortIn a 12-Pin NanoFree™ (CSP) PackagingAPPLICATIONSSmartphonesPDAsDigital Still and Video CamerasHandheld TerminalsMP3 or Multimedia PlayersImpedance Track, NanoFree are trademarks of Texas Instruments.I2C is a trademark of Philips Electronics.Battery Fuel Gauge for 1-Series Li-Ion ApplicationsResides on System Main BoardWorks With Embedded or Removable Battery PacksUses PACK+, PACK-, and T Battery TerminalsMicrocontroller Peripheral Provides:Accurate Battery Fuel GaugingInternal Temperature Sensor for Battery Temperature ReportingBattery Low Interrupt WarningBattery Insertion IndicatorConfigurable Level of State of Charge (SOC) InterruptsState of Health Indicator96 Bytes of Non-Volatile Scratch-Pad FLASHBattery Fuel Gauge Based on Patented Impedance Track™ TechnologyModels the Battery Discharge Curve for Accurate Time-to-Empty PredictionsAutomatically Adjusts for Battery Aging, Battery Self-Discharge, and Temperature/Rate InefficienciesLow-Value Sense Resistor (10 mW or Less)400-kHz I2C™ Interface for Connection to System Microcontroller PortIn a 12-Pin NanoFree™ (CSP) PackagingAPPLICATIONSSmartphonesPDAsDigital Still and Video CamerasHandheld TerminalsMP3 or Multimedia PlayersImpedance Track, NanoFree are trademarks of Texas Instruments.I2C is a trademark of Philips Electronics.
Description
AI
The Texas Instruments bq27505-J5 system-side Li-Ion battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell Li-Ion battery packs. The device requires little system micro-controller firmware development. The bq27505-J5 resides on the system’s main board and manages an embedded battery (nonremovable) or a removable battery pack.
The bq27505-J5 uses the patented Impedance Track algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), run-time to empty (min), battery voltage (mV), temperature (°C) and state of health(%).
Battery fuel gauging with the bq27505-J5 requires only PACK+ (P+), PACK– (P–), and Thermistor (T) connections to a removable battery pack or embedded battery circuit. The CSP option is a 12-ball package in the dimensions of 2.43mm × 1.96mm with 0.5mm lead pitch. It is ideal for space constrained applications.
The Texas Instruments bq27505-J5 system-side Li-Ion battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell Li-Ion battery packs. The device requires little system micro-controller firmware development. The bq27505-J5 resides on the system’s main board and manages an embedded battery (nonremovable) or a removable battery pack.
The bq27505-J5 uses the patented Impedance Track algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), run-time to empty (min), battery voltage (mV), temperature (°C) and state of health(%).
Battery fuel gauging with the bq27505-J5 requires only PACK+ (P+), PACK– (P–), and Thermistor (T) connections to a removable battery pack or embedded battery circuit. The CSP option is a 12-ball package in the dimensions of 2.43mm × 1.96mm with 0.5mm lead pitch. It is ideal for space constrained applications.
