19620031 Series

Manufacturer: HARTING

Catalog

HEAVY DUTY CONNECTOR, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 3A

Part	Lock Location	Thread Size	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Style	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Size	Ingress Protection	Housing Material	Connector Type	Size / Dimension [y]	Size / Dimension [z]	Size	Features

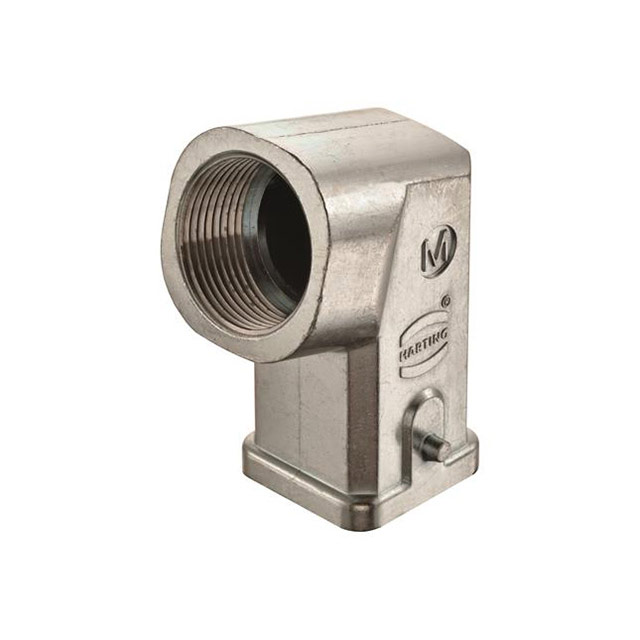

HARTING 19620031645	Locking Clip (1) on Base Bottom	M25	2.425 in	61.6 mm	28 mm	1.102 "	27 mm	1.063 in	Side Entry	Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Hood - 90°

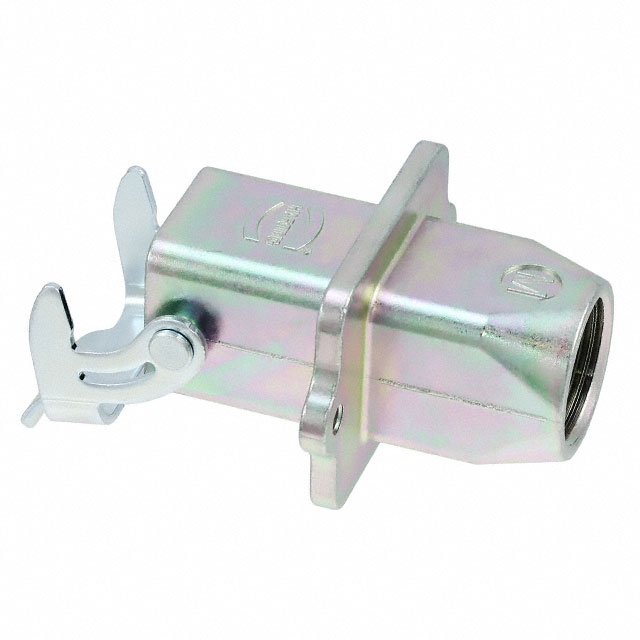

HARTING 19620031120	Locking Clip (1) on Hood	M20	2.268 in	57.6 mm	35 mm	1.378 in	54 mm	2.126 "		Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Hood - Panel Mount Hood/Housing - Panel Mount

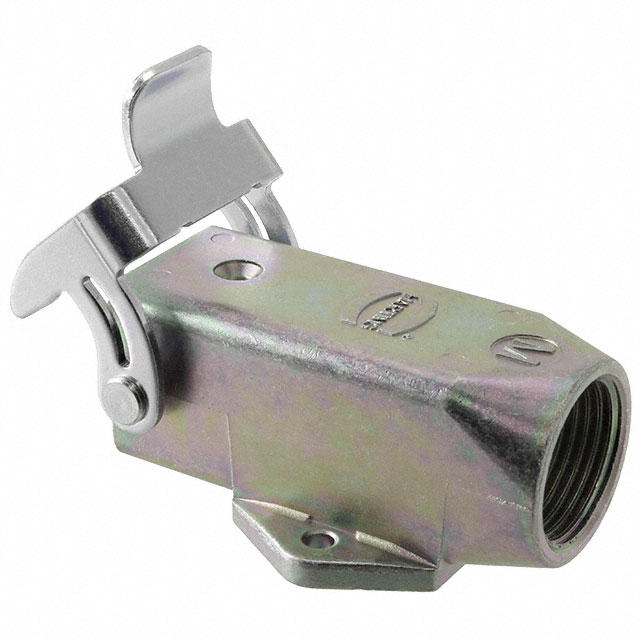

HARTING 19620031250	Locking Clip (1) on Base Bottom	M20	1.043 in			1.102 "	40 mm	1.575 in	Side Entry	Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Base - Panel Mount 90°	28 mm	26.5 mm

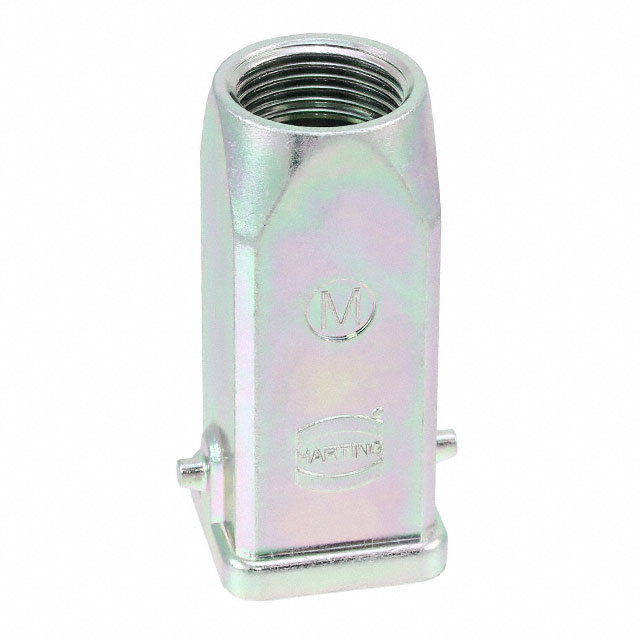

HARTING 19620031443	Locking Clip (1) on Base Bottom	M20	2.362 in	60 mm	28 mm	1.102 "	27 mm	1.063 in	Top Entry	Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Hood

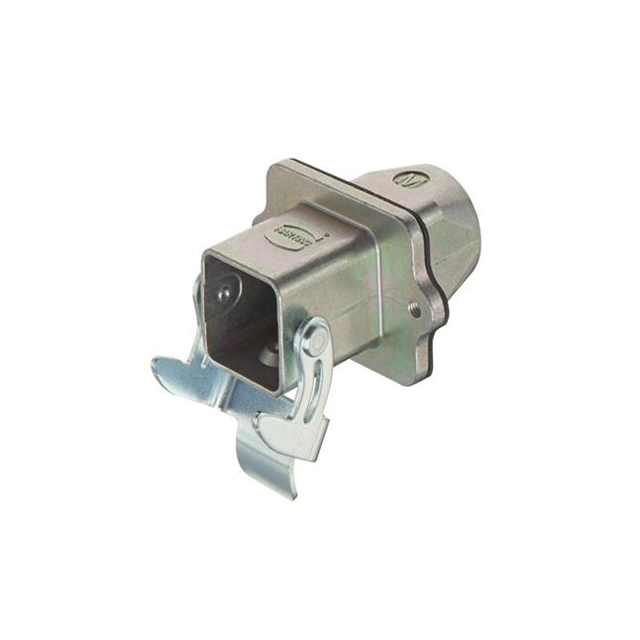

HARTING 19620031121	Locking Clip (1) on Hood	M20	2.268 in	57.6 mm	35 mm	1.378 in	54 mm	2.126 "		Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Hood - Panel Mount Hood/Housing - Panel Mount

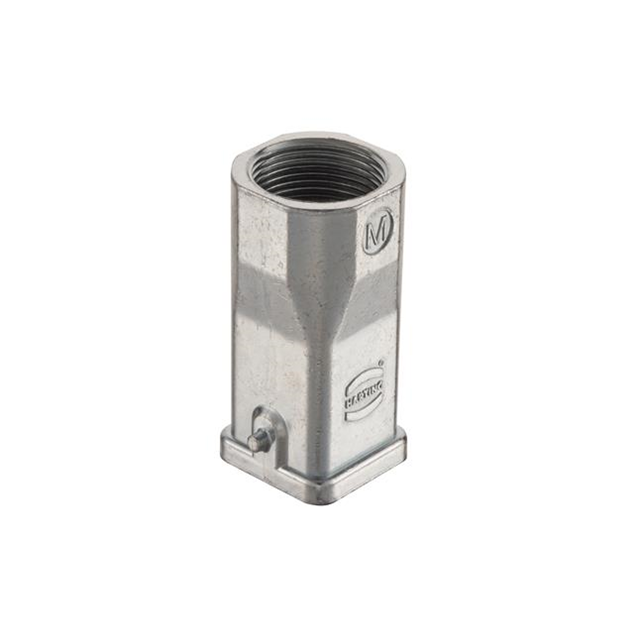

HARTING 19620031447	Locking Clip (1) on Base Bottom	M25							Top Entry		125 °C	-40 C		IP44	Zinc Die Cast	Hood			A3
HARTING 19620031643	Locking Clip (1) on Base Bottom	M20	2.138 "	54.3 mm	28 mm	1.102 "	27 mm	1.063 in	Side Entry	Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Hood

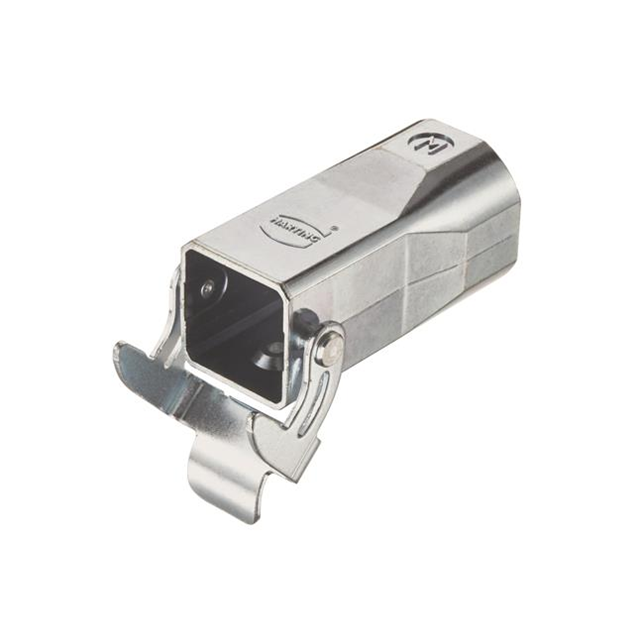

HARTING 19620031755	Locking Clip (1) on Hood	M25	2.244 "	57 mm	24.2 mm	0.953 in	24.2 mm	0.953 in		Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Hood - Coupling Hood/Housing - Coupling				Cable to Cable

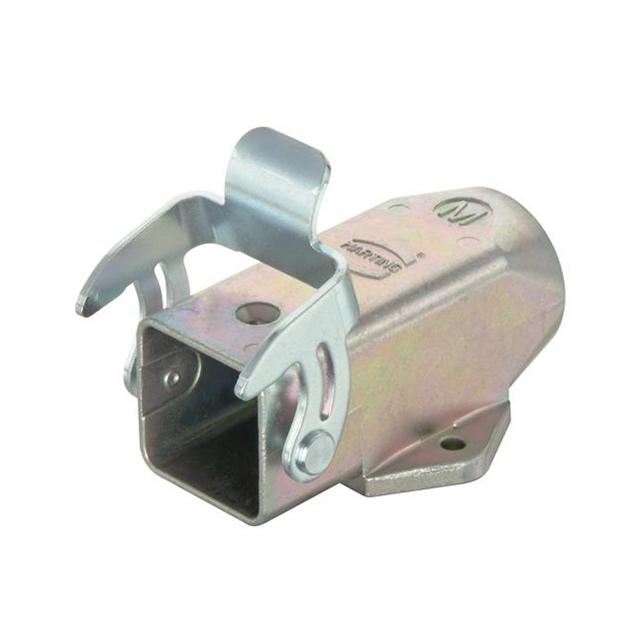

HARTING 19620031252	Locking Clip (1) on Base Bottom	M20							Side Entry	Gray	125 °C	-40 C	3 A	IP44	Zinc Die Cast	Base - Panel Mount 90°
