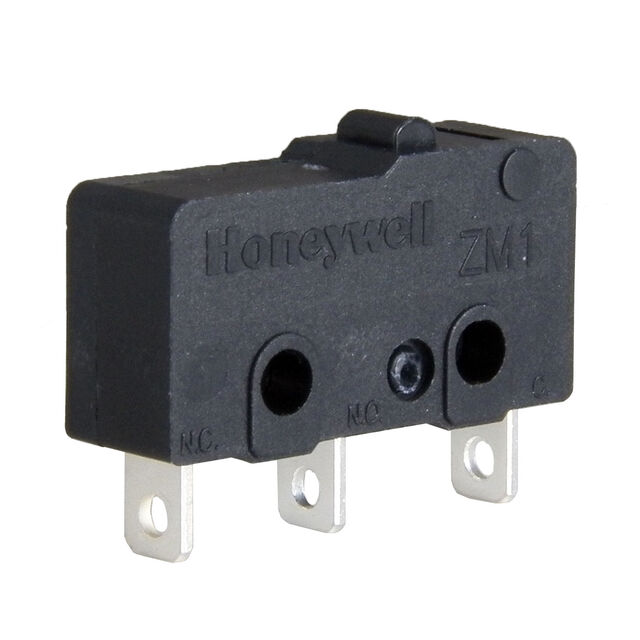

ZM160 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 125V
| Part | Actuator Type | Termination Style | Ingress Protection | Current Rating (Amps) | Pretravel | Pretravel | Voltage Rating - AC | Mounting Type | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Mechanical Life | Release Force | Overtravel [custom] | Overtravel [custom] | Operating Force | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Lever Straight | Solder Lug | IP40 | 6 A | 4.8 mm | 0.188 in | 125 V | Chassis Mount | On-Mom | 125 °C | -40 C | SPDT | 5000000 Cycles | 1 gf | 0.025 in | 0.6 mm | |||
 Honeywell Sensing and Productivity Solutions | Round (Pin Plunger) | Solder Lug | IP40 | 6 A | 1.14 mm | 0.045 in | 125 V | Chassis Mount | On-Mom | 125 °C | -40 C | SPDT | 5000000 Cycles | 25 gf | 0.015 " | 0.4 mm | 150 gf | 0.2 mm | 0.008 in |
