208294 Series

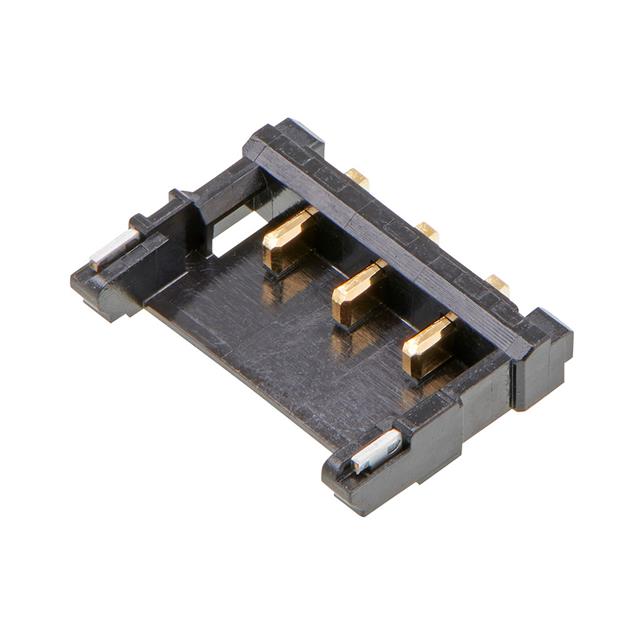

Pico-EZmate HC PCB Header, 1.80mm Pitch, Single Row, Gold (Au) Plating, 3 Circuits
Manufacturer: Molex
Catalog
Pico-EZmate HC PCB Header, 1.80mm Pitch, Single Row, Gold (Au) Plating, 3 Circuits
Beta
⌘K
Pico-EZmate HC PCB Header, 1.80mm Pitch, Single Row, Gold (Au) Plating, 3 Circuits
Pico-EZmate HC PCB Header, 1.80mm Pitch, Single Row, Gold (Au) Plating, 3 Circuits
Pico-EZmate HC PCB Header, 1.80mm Pitch, Single Row, Gold (Au) Plating, 3 Circuits
| Part | Termination | Contact Shape | Insulation Color | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Material | Insulation Material | Insulation Height | Insulation Height | Material Flammability Rating | Contact Type | Contact Finish - Post | Mounting Type | Contact Finish - Mating | Voltage Rating | Number of Rows | Style | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Solder | Rectangular | Black | All | -40 °C | 105 ░C | 5 A | Brass | Nylon Polyamide (PA) | 0.063 in | 1.6 mm | UL94 V-0 | Male Blade | Gold | Surface Mount Right Angle | Gold | 250 VAC | 1 | Board to Cable/Wire | Plug | 0.071 in | 1.8 mm | 3.94 µin | 0.1 µm | Shrouded - 4 Wall | Push-Pull |
