A63-113 Series

Manufacturer: EDAC Inc.

Catalog

CONN JACK 1PORT 100 BASE-T PCB

Part	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Shield Material	Number of Ports	Orientation	Mounting Type	Termination	Number of Rows	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Height Above Board	Height Above Board	Contact Finish	LED Color	Tab Direction	Connector Type	Contact Material	Height Above Board [z]	Height Above Board [z]

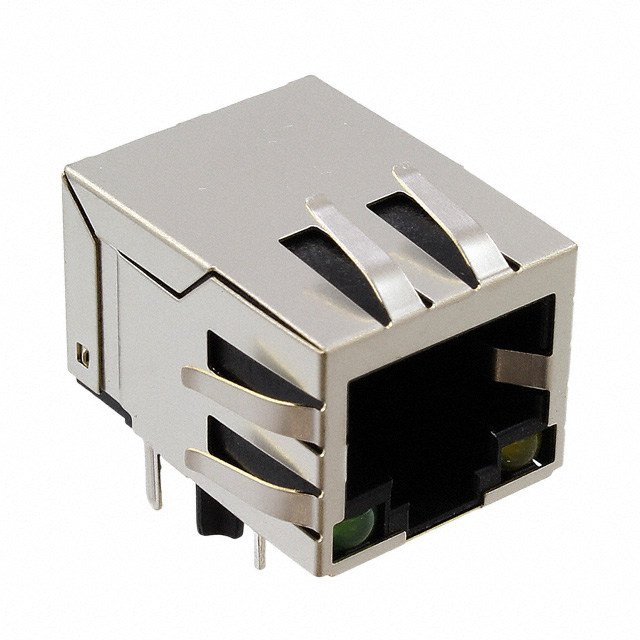

EDAC Inc. A63-113-331P422	Thermoplastic	0.38 µm	15 µin	Copper Alloy	1	90 °	Through Hole	Solder	1	10/100 Base-T AutoMDIX	Board Lock	70 °C	0 °C	EMI Finger Shielded	13.49 mm	0.531 in	Gold	Green - Yellow	Down	RJ45	Copper Alloy
EDAC Inc. A63-113-300P13B	Polybutylene Terephthalate (PBT) Polyester	0.38 µm	15 µin		1	90 °	Through Hole	Solder	1	10/100 Base-T AutoMDIX	Board Lock			Shielded			Gold	Does Not Contain LED	Down	RJ45
EDAC Inc. A63-113-300P422	Thermoplastic	0.38 µm	15 µin	Copper Alloy	1	90 °	Through Hole	Solder	1	10/100 Base-T AutoMDIX	Board Lock	70 °C	0 °C	EMI Finger Shielded	13.49 mm	0.531 in	Gold	Does Not Contain LED	Down	RJ45	Copper Alloy
EDAC Inc. A63-113-213N491	Nylon Polyamide (PA) Polyester	0.38 µm	15 µin	Copper Alloy	1	90 °	Through Hole	Solder	1	10/100 Base-T AutoMDIX	Board Lock	70 °C	0 °C	EMI Finger Shielded			Gold	Yellow - Green	Up	RJ45	Phosphor Bronze	0.53 in	13.45 mm

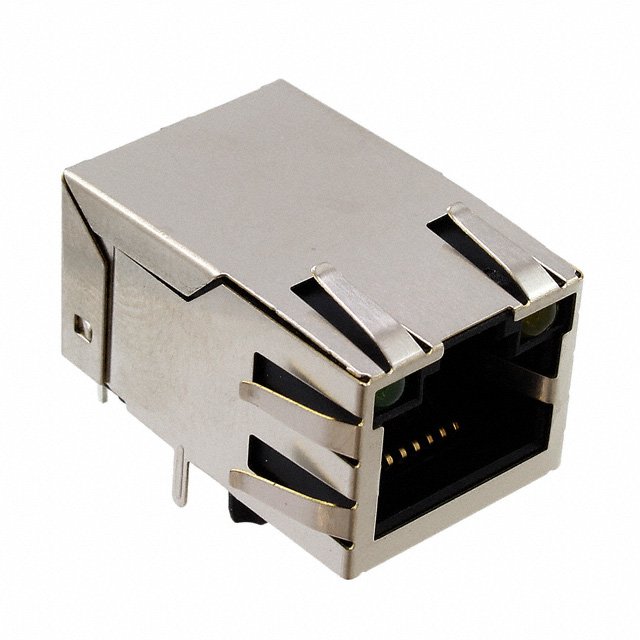

EDAC Inc. A63-113-231N435	Thermoplastic	0.38 µm	15 µin	Copper Alloy	1	90 °	Through Hole	Solder	1	10/100 Base-T AutoMDIX	Board Lock	70 °C	0 °C	EMI Finger Shielded	13.49 mm	0.531 in	Gold	Green - Yellow	Up	RJ45	Copper Alloy

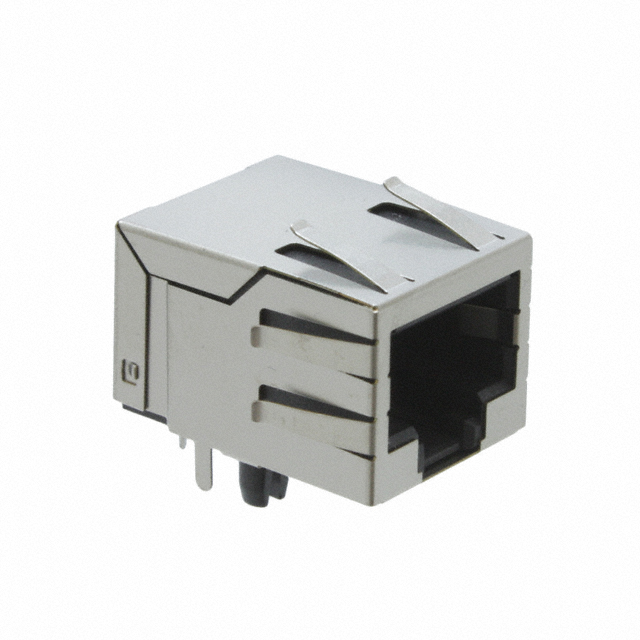

EDAC Inc. A63-113-300P131	Polybutylene Terephthalate (PBT) Polyester	0.38 µm	15 µin		1	90 °	Through Hole	Solder	1	10/100 Base-T AutoMDIX	Board Lock			Shielded	13.49 mm	0.531 in	Gold	Does Not Contain LED	Down	RJ45
