83503 Series
Manufacturer: Belden Inc.
Beta
⌘K

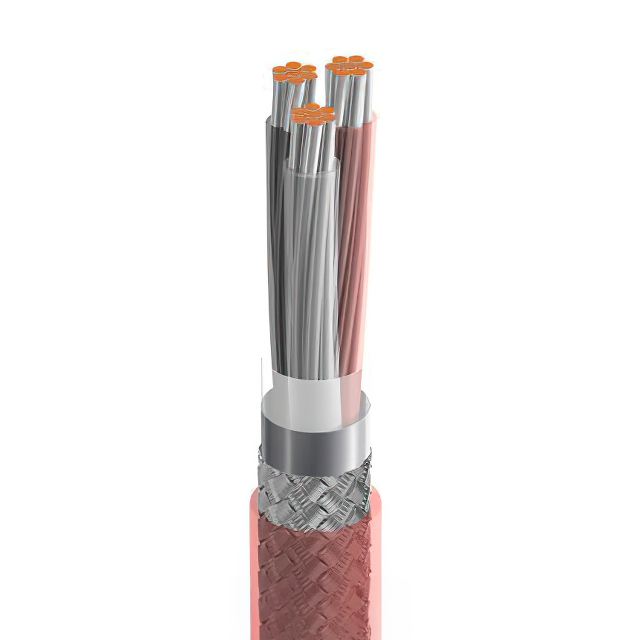

CABLE 3COND 24AWG RED SHLD
| Part | Shield Coverage | Shield Material | Usage | Jacket Color | Number of Conductors | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Shield Type | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Cable Type | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % 100 % | Aluminum Copper Tinned | Audio Control Instrumentation | Red | 3 | Fluorinated Ethylene-Propylene (FEP) Plenum | -70 °C | 200 °C | 7 | 32 AWG | Copper Tinned | Braid Foil | 304.8 m | 1000 ft | 0.135 in | 3.43 mm | 300 VDC | Multi-Conductor | UL Style CMP | 0.017 " | 0.432 mm | Fluorinated Ethylene-Propylene (FEP) | 24 AWG |
