170781 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
P.G RING UL.CSA(22-18) ROHS COMPLIANT: YES
| Part | Mounting Type | Length - Overall [x] | Length - Overall [x] | Wire Gauge [Max] | Wire Gauge [Min] | Contact Material | Color | Contact Finish | Termination | Terminal Type | Insulation | Stud/Tab Size | Thickness | Thickness | Width - Outer Edges [x] | Width - Outer Edges [x] | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

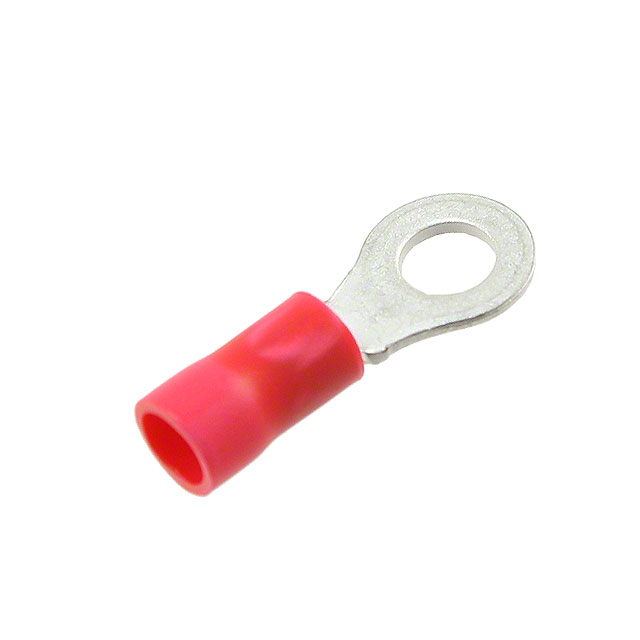

 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 21 mm | 0.827 in | 22 AWG | 17.5 AWG | Copper | Red | Tin | Crimp | Circular | Insulated | M5 Stud | 0.79 mm | 0.031 in | 8 mm | 0.315 in | |

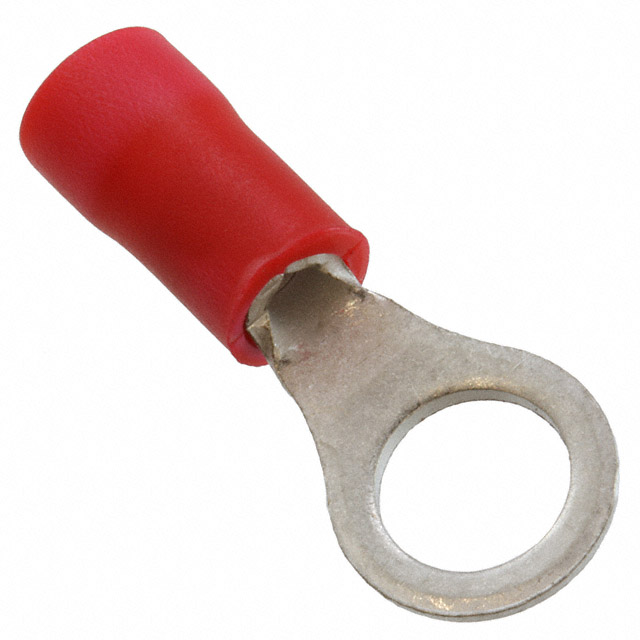

 TE Connectivity AMP Connectors | Free Hanging (In-Line) | 16 mm | 0.63 in | 22 AWG | 17.5 AWG | Copper | Red | Tin | Crimp | Circular | Insulated | 0.79 mm | 0.031 in | 8 mm | 0.315 in | 8 Stud |
