96190 Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 8.89-13.97MM M20

Part	Thread Size	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Material

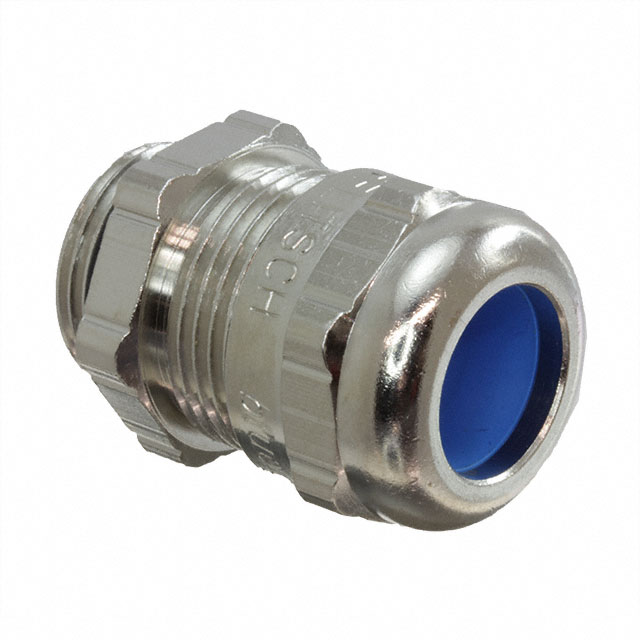

Pflitsch 96190.6	M20x1.5	Sealing Ring	-40 C	300 °C	20.1 mm	0.79 in	13.97 mm	0.55 in	Cable Gland	0.26 in	6.6 mm	IP68 IP69K NEMA 4X	8.89 mm	0.35 "	Silver	Brass Nickel Plated

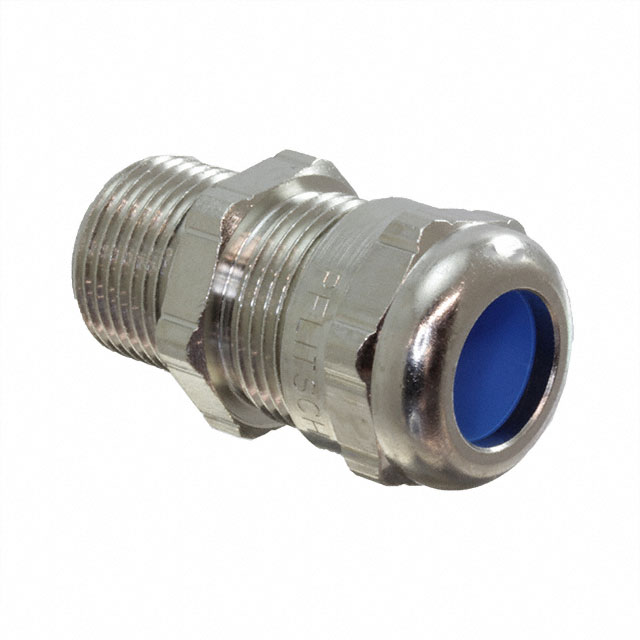

Pflitsch 96190.6/15	M20x1.5	Sealing Ring	-40 C	300 °C	20.1 mm	0.79 in	13.97 mm	0.55 in	Cable Gland	0.26 in	6.6 mm	IP68 IP69K NEMA 4X	8.89 mm	0.35 "	Silver	Brass Nickel Plated
