GSE10 Series

Catalog

SENSOR THROUGH-BEAM 40M PNP

Part	Sensing Method	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Output Configuration	Connection Method	Adjustment Type	Sensing Distance	Sensing Distance	Response Time	Light Source	Cable Length	Cable Length
SICK, Inc. 1065906	Through-Beam	60 °C	-30 °C	10 VDC	30 VDC	IP67	PNP	Connector M12	Adjustable Potentiometer	4000 cm	1574.803 in	500 µs	Infrared (880nm)
SICK, Inc. 1065905	Through-Beam	60 °C	-30 °C	10 VDC	30 VDC	IP67	NPN	Cable	Adjustable Potentiometer	4000 cm	1574.803 in	500 µs	Red (625nm)	78.74 "	2 m
SICK, Inc. 1065911	Through-Beam	60 °C	-30 °C	24 V	240 VDC	IP67	Dark-ON/Light-ON	Cable		35 m	1377.953 "	10 ms	Red (625nm)	78.74 "	2 m
SICK, Inc. 1065908	Through-Beam	60 °C	-30 °C	10 VDC	30 VDC	IP67	NPN	Cable	Adjustable Potentiometer	4000 cm	1574.803 in	500 µs	Infrared (880nm)	78.74 "	2 m

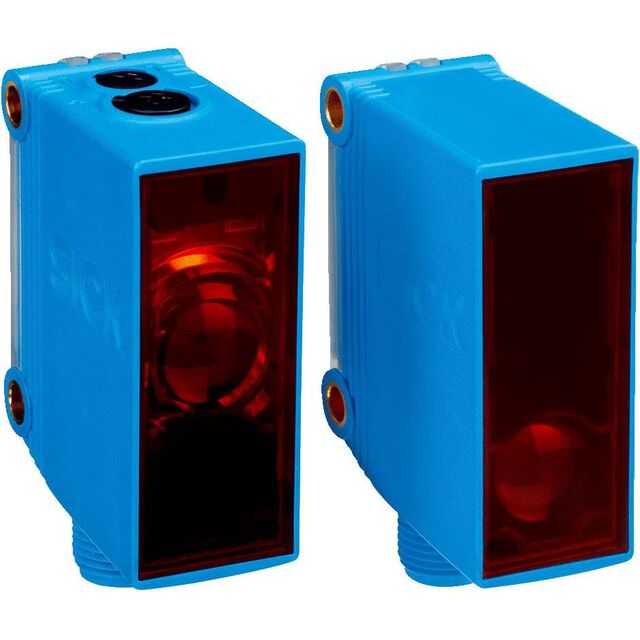

SICK, Inc. 1064706	Through-Beam	60 °C	-30 °C	10 VDC	30 VDC	IP67	PNP	Connector M12	Adjustable Potentiometer	4000 cm	1574.803 in	500 µs	Red (625nm)
SICK, Inc. 1065902	Through-Beam	60 °C	-30 °C	10 VDC	30 VDC	IP67	NPN	Cable		4000 cm	1574.803 in	500 µs	Red (625nm)	78.74 "	2 m
SICK, Inc. GSE10-P4112	Through-Beam	60 °C	-30 °C	10 VDC	30 VDC	IP67	PNP	Connector M12		35 m	1377.953 "	500 µs	Red (625nm)
SICK, Inc. 1064691	Through-Beam	60 °C	-30 °C	24 V	240 VDC	IP67	Dark-ON/Light-ON	Cable	Adjustable Potentiometer	4000 cm	1574.803 in	10 ms	Red (625nm)	78.74 "	2 m
SICK, Inc. 1065913	Through-Beam	60 °C	-30 °C	24 V	240 VDC	IP67	Dark-ON/Light-ON	Cable		4000 cm	1574.803 in	10 ms	Infrared (880nm)	78.74 "	2 m
SICK, Inc. 1065910	Through-Beam	60 °C	-30 °C	24 V	240 VDC	IP67	Dark-ON/Light-ON	Cable		4000 cm	1574.803 in	10 ms	Red (625nm)	78.74 "	2 m
