622-M50 Series
Manufacturer: EDAC Inc.
Beta
⌘K
622M SERIES RIGHT ANGLE D-SUB PL
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Backset Spacing | Backset Spacing | Material Flammability Rating | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Connector Style | Flange Feature | Contact Finish | Current Rating (Amps) | Termination | Flange Feature | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

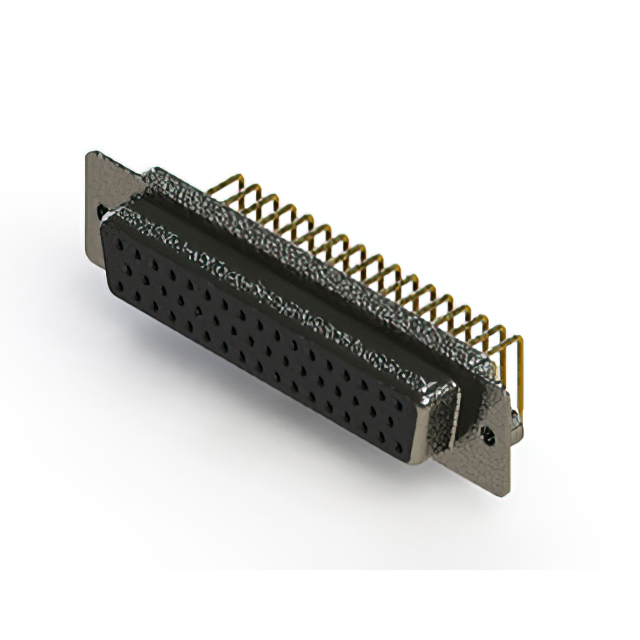

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Black | -55 C | 125 °C | Receptacle Female Sockets | Signal | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Board Lock Mounting Brackets Shielded | D-Sub | 4-40 | Gold | 5 A | Solder | |||

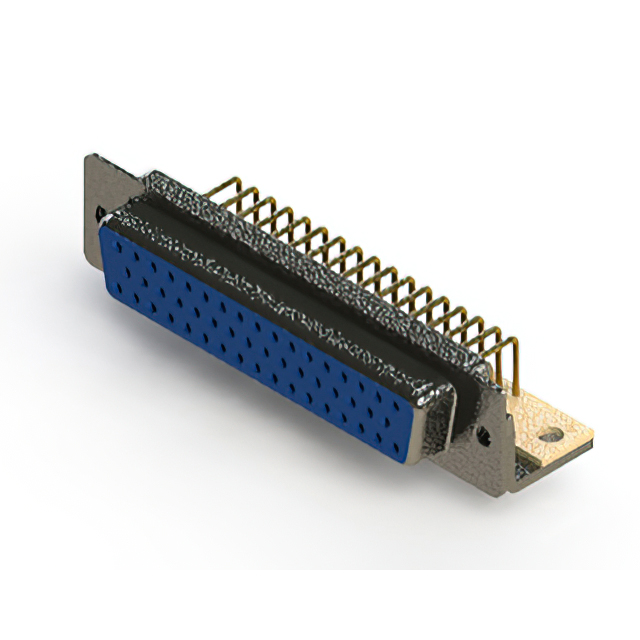

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Blue | -55 C | 125 °C | Receptacle Female Sockets | Signal | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Shielded | D-Sub | Housing/Shell | Gold | 5 A | Solder | 4-40 | ||

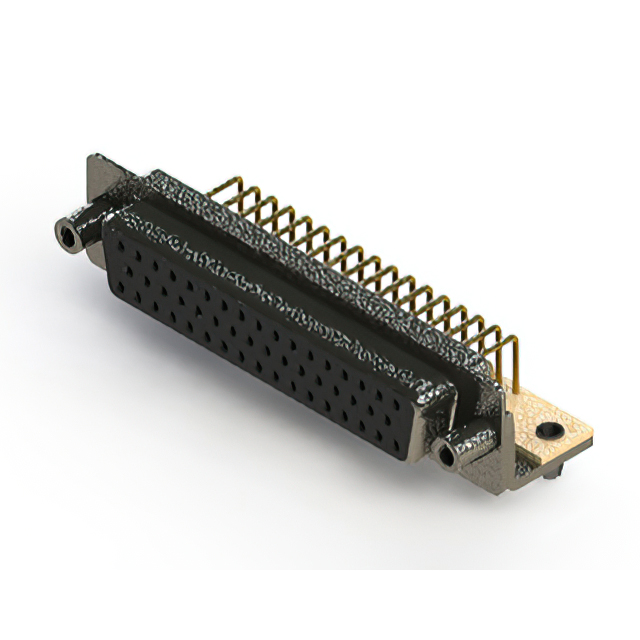

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Black | -55 C | 125 °C | Receptacle Female Sockets | Signal | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Shielded | D-Sub | Housing/Shell | Gold | 5 A | Solder | 4-40 | Nickel Plated Steel | |

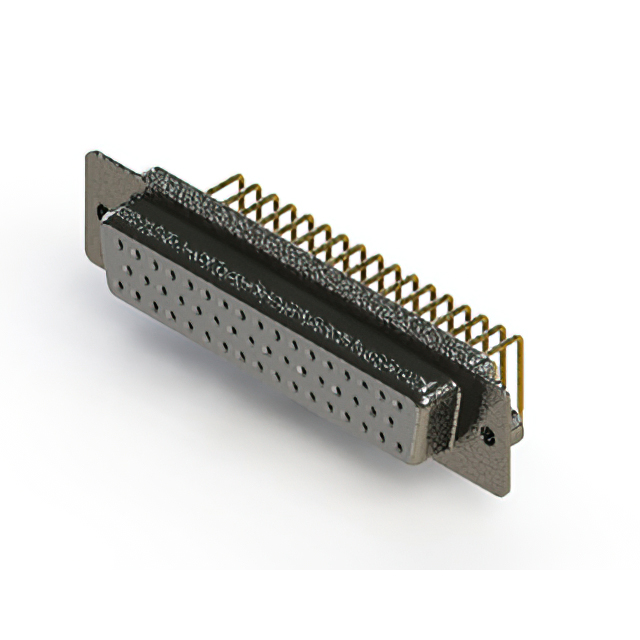

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | White | -55 C | 125 °C | Receptacle Female Sockets | Signal | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Shielded | D-Sub | Housing/Shell | Gold | 5 A | Solder | 4-40 | Flash | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Blue | -55 C | 125 °C | Receptacle Female Sockets | Signal | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Mounting Brackets Shielded | D-Sub | 4-40 | Gold | 5 A | Solder | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Black | -55 C | 125 °C | Receptacle Female Sockets | Signal | 0.38 µm | 15 µin | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Mounting Brackets Shielded | D-Sub | 4-40 | Gold | 5 A | Solder | |||

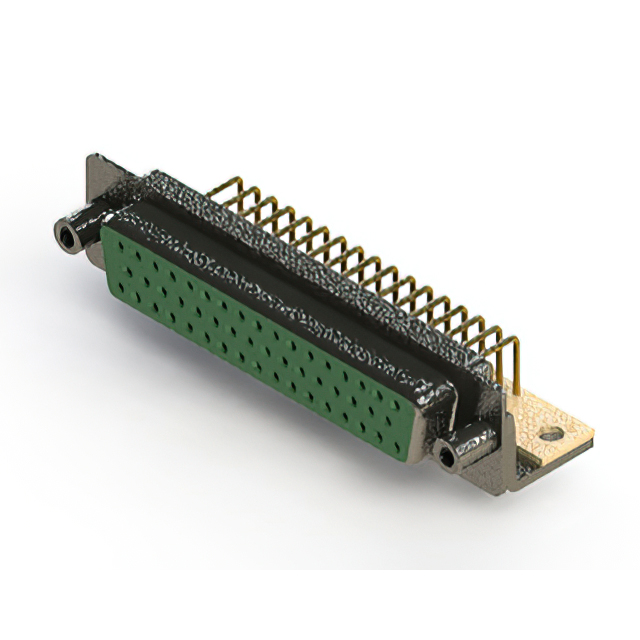

 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Green | -55 C | 125 °C | Receptacle Female Sockets | Signal | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Mounting Brackets Shielded | D-Sub | 4-40 | Gold | 5 A | Solder | Nickel Plated Steel | Flash | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Green | -55 C | 125 °C | Receptacle Female Sockets | Signal | 0.76 Ám | 30 Áin | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Mounting Brackets Shielded | D-Sub | 4-40 | Gold | 5 A | Solder | Nickel Plated Steel | ||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Green | -55 C | 125 °C | Receptacle Female Sockets | Signal | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Mounting Brackets Shielded | D-Sub | Housing/Shell | Gold | 5 A | Solder | 4-40 | Flash | |||
 EDAC Inc. | Polyamide (PA6T) Nylon 6T | Copper Alloy | Blue | -55 C | 125 °C | Receptacle Female Sockets | Signal | Board Edge Right Angle Through Hole | 3 | 7.2 mm | 0.283 in | UL94 V-0 | 50 | 5 | D DD | Mounting Brackets Shielded | D-Sub | Housing/Shell | Gold | 5 A | Solder | 4-40 | Flash |
