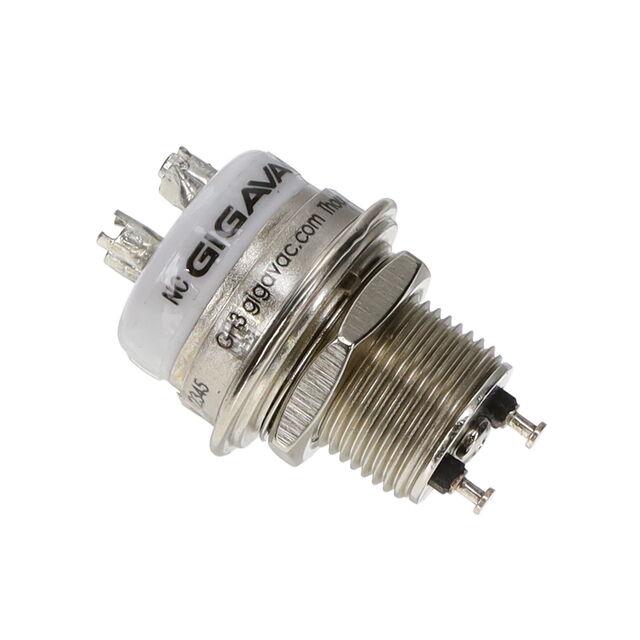

3.5KV SPDT HV RELAY
| Part | Mounting Type | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Operate Time | Coil Type | Must Operate Voltage | Contact Form | Coil Current | Release Time | Coil Voltage | Contact Material | Operating Temperature (Max) | Operating Temperature (Min) | Relay Type | Contact Rating (Current) | Termination Style | Must Release Voltage | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata - Gigavac Industrial | Panel Mount | 3500 VDC | 3500 VAC | 6 ms | Non Latching | 16 VDC | 1 C Form SPDT | 91.1 mA | 6 ms | 26.5 VDC | Tungsten (W) | 125 °C | -55 °C | General Purpose | 18 A | Solder Turret | 1 VDC | 335 Ohms |
 Sensata - Gigavac Industrial | Panel Mount | 3500 VDC | 3500 VAC | 6 ms | Non Latching | 16 VDC | 1 C Form SPDT | 91.1 mA | 6 ms | 26.5 VDC | Tungsten (W) | 125 °C | -55 °C | General Purpose | 18 A | Solder Turret | 1 VDC | 335 Ohms |
