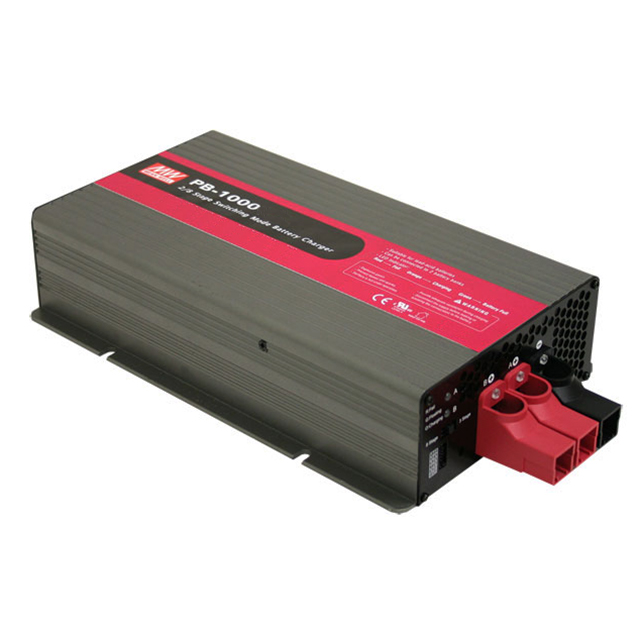

PB-1000 Series

Catalog

BATT CHRGR ENCLOSED 28.8V 34.7A

Part	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Weight	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Charge Current - Max	Features	Power - Max [Max]	Battery Cell Size	Voltage - Input [Max]	Voltage - Input [Min]	Termination Style	Mounting Type	Number of Cells	Voltage - Nominal	Battery Chemistry [custom]	Type	Charge Current - Max [Max]
MEAN WELL USA Inc. PB-1000-24	-20 ░C	60 °C	CB CE cURus TUV	3500 g	2.76 in	7.24 in	11.81 in	300 mm	70 mm	184 mm	34.7 A	LED Indicator	1000 W	24 V	264 VAC 370 VDC	90 VAC 127 VDC	Screw Terminal	Chassis Mount	1	28.8 V	Lead Acid Lithium-Ion	Enclosed
MEAN WELL USA Inc. PB-1000-12	-20 ░C	60 °C	CB CE cURus TUV	3500 g	2.76 in	7.24 in	11.81 in	300 mm	70 mm	184 mm		LED Indicator	1000 W	12 V	264 VAC 370 VDC	90 VAC 127 VDC	Screw Terminal	Chassis Mount	1	14.4 V	Lead Acid Lithium-Ion	Enclosed	60 A
