AWH 40 Series

Catalog

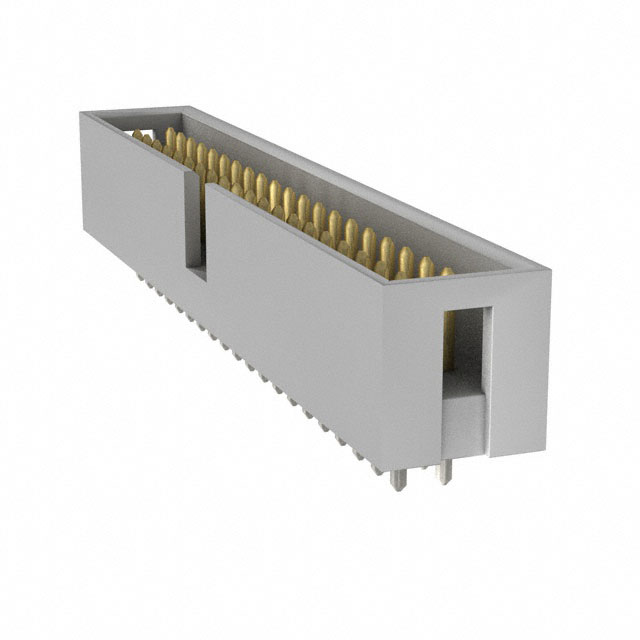

CONN HEADER VERT 40POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Contact Material	Fastening Type	Shrouding	Material Flammability Rating	Contact Finish - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Shape	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Termination	Number of Positions Loaded	Insulation Height	Insulation Height	Mounting Type	Contact Type	Number of Rows [custom]	Contact Finish Thickness - Mating	Style	Insulation Material	Current Rating (Amps)	Number of Positions	Features	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [z]
Assmann WSW Components AWH 40G-0202-T	0.1 "	2.54 mm	Brass	Push-Pull	Shrouded - 4 Wall	UL94 V-0	Tin	Header	-40 C	105 ░C	Gold	Square	0.13 "	3.3 mm	0.1 in	2.54 mm	Gray	Solder	All	17 mm	0.669 in	Through Hole	Male Pin	2	Flash	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	3 A	40	Keying Slot
Assmann WSW Components AWH 40A-0232-T	0.1 "	2.54 mm	Brass	Latch Lock/Eject Hooks Long	Shrouded - 4 Wall	UL94 V-0	Tin	Header	-40 C	105 ░C	Gold	Square			0.1 in	2.54 mm	Gray	Solder	All	8.3 mm		Right Angle Through Hole	Male Pin	2	Flash	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	3 A	40	Keying Slot	3.81 mm	0.15 in	0.327 "
