FFB03612 Series

Catalog

FAN AXIAL 36X28MM 12VDC WIRE

Part	Material - Frame	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Lifetime @ Temp.	Bearing Type	Features	Power (Watts)	RPM	Voltage - Rated	Termination	Air Flow	Air Flow	Weight [custom]	Weight [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Width [x]	Approval Agency	Static Pressure	Static Pressure	Fan Type	Size / Dimension [x]	Size / Dimension [y]

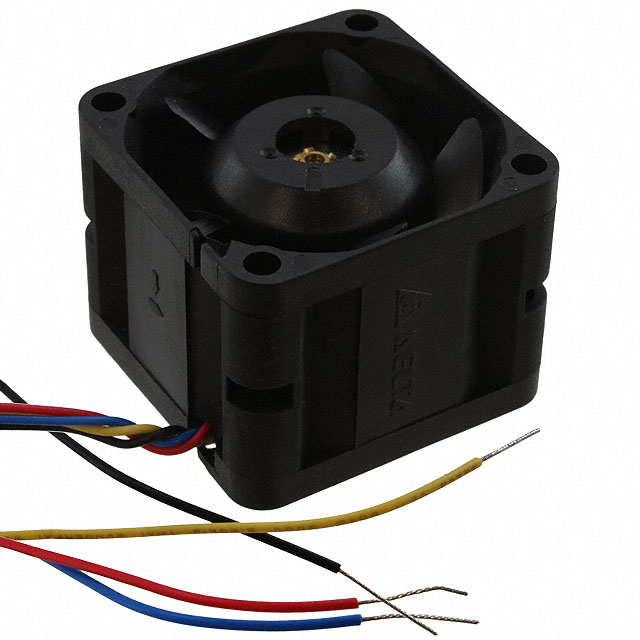

Delta Electronics FFB03612EHN-BGA	Plastic	750 mA	10.8 VDC	13.2 VDC	Plastic	40 °C 50000 Hrs	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	3.96 W	14500 RPM	12 VDC	4 Wire Leads	0.456 m³/min	16.3 CFM	32.21 g	0.071 lb	70 °C	-10 °C	50 dB(A)	28 mm	CE CSA UL VDE	249.1 Pa	1 in H2O	Tubeaxial	36 mm	36 mm
Delta Electronics FFB03612EHNYCL	Plastic	0.63 A	10.8 VDC	13.2 VDC	Plastic	70000 Hrs	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	7.56 W	19000 RPM	12 VDC	4 Wire Leads	0.588 m³/min	21 CFM	32.21 g	0.071 lb	80 °C	-10 °C	58 dB(A)	28 mm	CE cURus VDE	423.5 Pa	1.7 in H2O	Tubeaxial	36 mm	36 mm
