222DJV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Illumination	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Operating Force	Outline [x]	Outline [y]	Switch Function	Termination Style	Actuator Type	Circuit	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Mounting Type

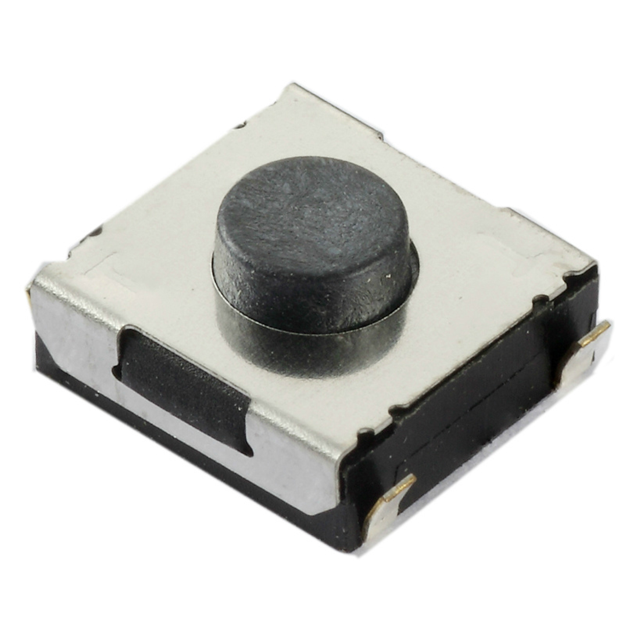

CTS Electrocomponents 222DJVCAR	1000000 Cycles	0.25 mm	Non-Illuminated	Tactile Feedback	85 °C	-40 C	0.05 A 12 VDC	160 gf	6.2 mm	6.2 mm	Off-Mom	J Lead	Standard	SPST-NO	3.5 mm	Top Actuated	Surface Mount

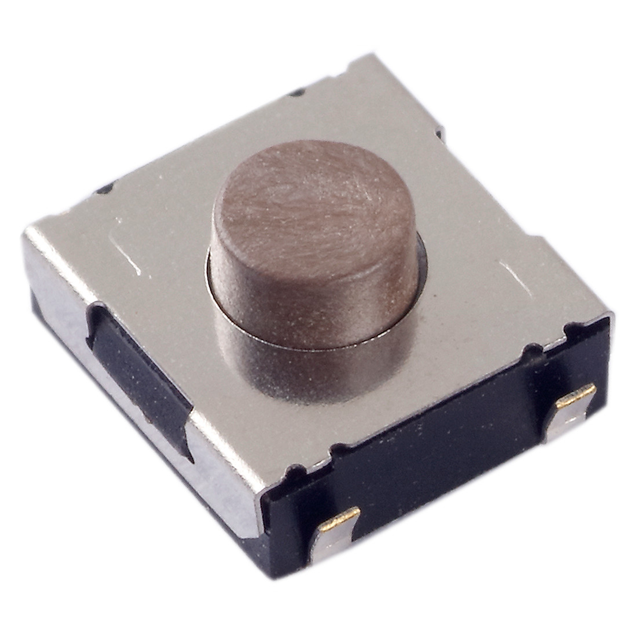

CTS Electrocomponents 222DJVCCR	500000 Cycles	0.25 mm	Non-Illuminated	Tactile Feedback	85 °C	-40 C	0.05 A 12 VDC	260 gf	6.2 mm	6.2 mm	Off-Mom	J Lead	Standard	SPST-NO	3.5 mm	Top Actuated	Surface Mount

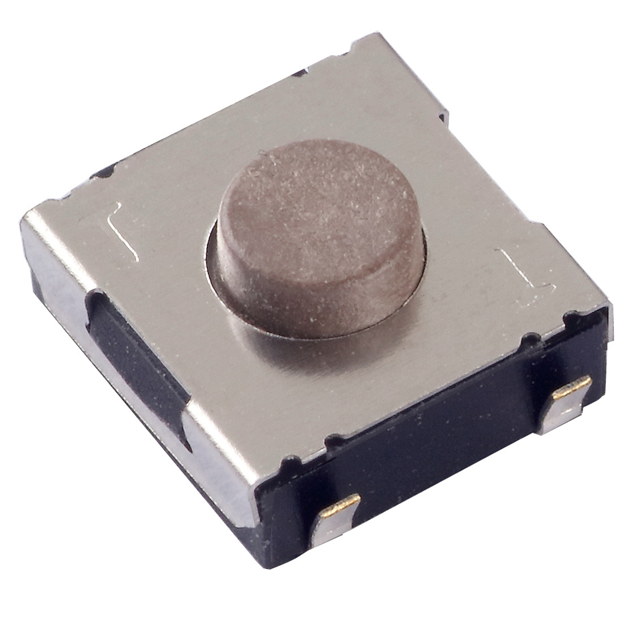

CTS Electrocomponents 222DJVBCR	500000 Cycles	0.25 mm	Non-Illuminated	Tactile Feedback	85 °C	-40 C	0.05 A 12 VDC	260 gf	6.2 mm	6.2 mm	Off-Mom	J Lead	Standard	SPST-NO	3.1 mm	Top Actuated	Surface Mount
CTS Electrocomponents 222DJVCBR	200000 Cycles	0.25 mm	Non-Illuminated	Tactile Feedback	85 °C	-40 C	0.05 A 12 VDC	360 gf	6.2 mm	6.2 mm	Off-Mom	J Lead	Standard	SPST-NO	3.5 mm	Top Actuated	Surface Mount

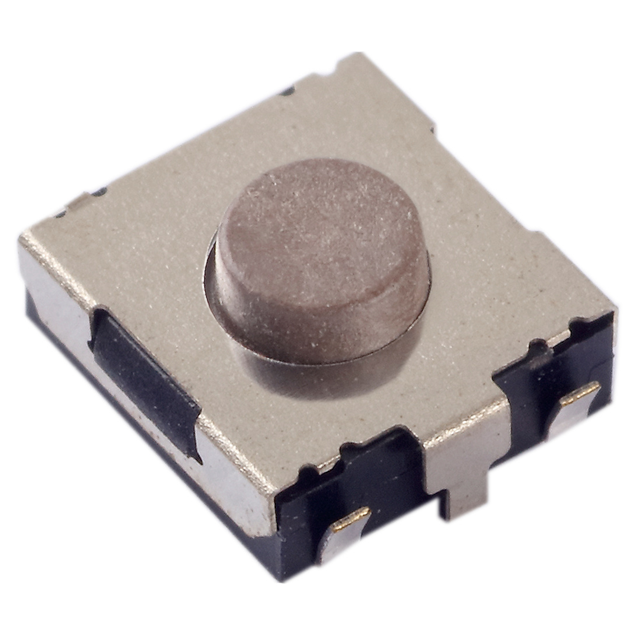

CTS Electrocomponents 222DJVBCRG	500000 Cycles	0.25 mm	Non-Illuminated	Grounding Pin Tactile Feedback	85 °C	-40 C	0.05 A 12 VDC	260 gf	6.2 mm	6.2 mm	Off-Mom	J Lead	Standard	SPST-NO	3.1 mm	Top Actuated	Surface Mount
