AC6200 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

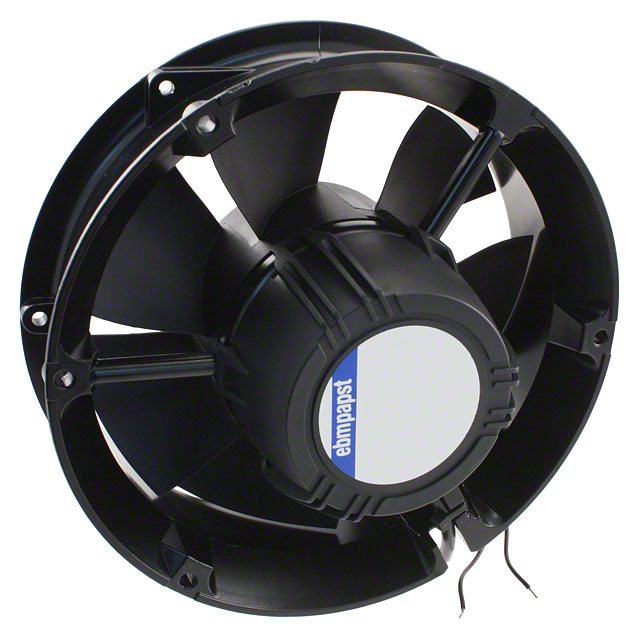

FAN AXIAL 172X51MM 85/265VAC
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Material - Frame | Voltage - Rated | Power (Watts) | Fan Type | Width [x] | Size / Dimension [diameter] | Size / Dimension | Termination | Bearing Type | Features | Ingress Protection | Air Flow | Air Flow | Noise | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Weight | Weight | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 265 VAC | 85 VAC | 80000 Hrs | Aluminum | 115 VAC | 14 W | Tubeaxial | 51 mm | 172 mm | Round | 2 Wire Leads | Ball | Electronic Commutation (EC) Locked Rotor Protection | IP54 - Dust Protected Water Resistant | 206 CFM | 5.77 m³/min | 50 dB(A) | 2850 RPM | -20 ░C | 70 °C | 907.2 g | 2 lbs | CSA UL VDE |
