ISO122 Series

±10-V input, voltage sensing isolated amplifier

Catalog

±10-V input, voltage sensing isolated amplifier

Part	-3db Bandwidth	Supplier Device Package	Number of Circuits	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case	Current - Output / Channel	Voltage - Supply Span (Max) [Max]	Voltage - Input Offset	Slew Rate	Current - Supply	Amplifier Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Texas Instruments ISO122JU/1K	50 kHz	8-SOIC	1	0.295 in	7.5 mm	8 Leads	28-SOIC	15 mA	36 V	20 mV	2 V/µs	5 mA	Isolation	Surface Mount	-25 °C	85 °C

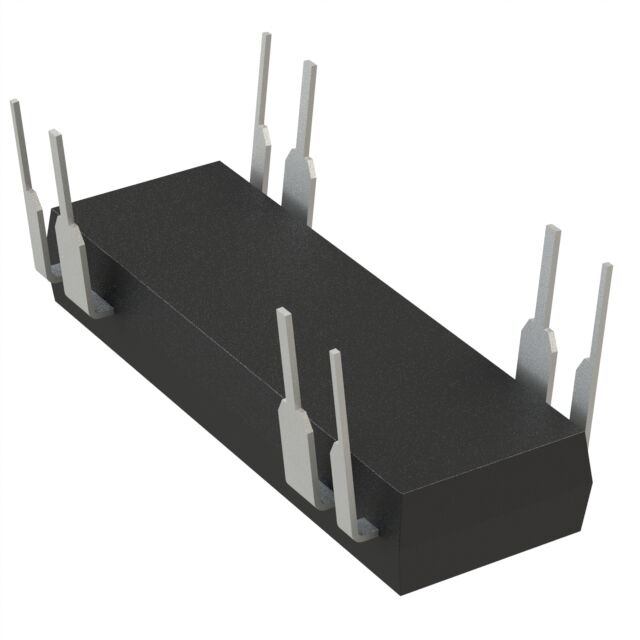

Texas Instruments ISO122JP	50 kHz	8-PDIP	1			0.3 in 7.62 mm	16-DIP 8 Leads	15 mA	36 V	20 mV	2 V/µs	5 mA	Isolation	Through Hole	-25 °C	85 °C
Texas Instruments ISO122U	50 kHz	8-SOIC	1	0.295 in	7.5 mm	8 Leads	28-SOIC	15 mA	36 V	20 mV	2 V/µs	5 mA	Isolation	Surface Mount	-25 °C	85 °C
Texas Instruments ISO122JU	50 kHz	8-SOIC	1	0.295 in	7.5 mm	8 Leads	28-SOIC	15 mA	36 V	20 mV	2 V/µs	5 mA	Isolation	Surface Mount	-25 °C	85 °C
Texas Instruments ISO122JUG4	50 kHz	8-SOIC	1	0.295 in	7.5 mm	8 Leads	28-SOIC	15 mA	36 V	20 mV	2 V/µs	5 mA	Isolation	Surface Mount	-25 °C	85 °C
Texas Instruments ISO122JPE4	50 kHz	8-PDIP	1			0.3 in 7.62 mm	16-DIP 8 Leads	15 mA	36 V	20 mV	2 V/µs	5 mA	Isolation	Through Hole	-25 °C	85 °C

Catalog

±10-V input, voltage sensing isolated amplifier

Key Features

• 100% Tested for High-Voltage BreakdownRated 1500 VrmsHigh IMR: 140 dB at 60 HzBipolar Operation: VO= ±10 V16-Pin Plastic DIP and 28-Lead SOICEase of Use: Fixed Unity Gain Configuration0.020% Maximum Nonlinearity±4.5-V to ±18-V Supply Range100% Tested for High-Voltage BreakdownRated 1500 VrmsHigh IMR: 140 dB at 60 HzBipolar Operation: VO= ±10 V16-Pin Plastic DIP and 28-Lead SOICEase of Use: Fixed Unity Gain Configuration0.020% Maximum Nonlinearity±4.5-V to ±18-V Supply Range

Description

The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO122 is easy to use. No external components are required for operation. The key specifications are 0.020% maximum nonlinearity, 50-kHz signal bandwidth, and 200-V/°C VOSdrift. A power supply range of 4.5 V to 18 V and quiescent currents of 5 mA on VS1and ±5.5 mA on VS2make the ISO122 ideal for a wide range of applications. The ISO122 is available in 16-pin plastic DIP and28-lead plastic surface-mount packages. The ISO122 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package. The ISO122 is easy to use. No external components are required for operation. The key specifications are 0.020% maximum nonlinearity, 50-kHz signal bandwidth, and 200-V/°C VOSdrift. A power supply range of 4.5 V to 18 V and quiescent currents of 5 mA on VS1and ±5.5 mA on VS2make the ISO122 ideal for a wide range of applications. The ISO122 is available in 16-pin plastic DIP and28-lead plastic surface-mount packages.
