BFB1012 Series

Catalog

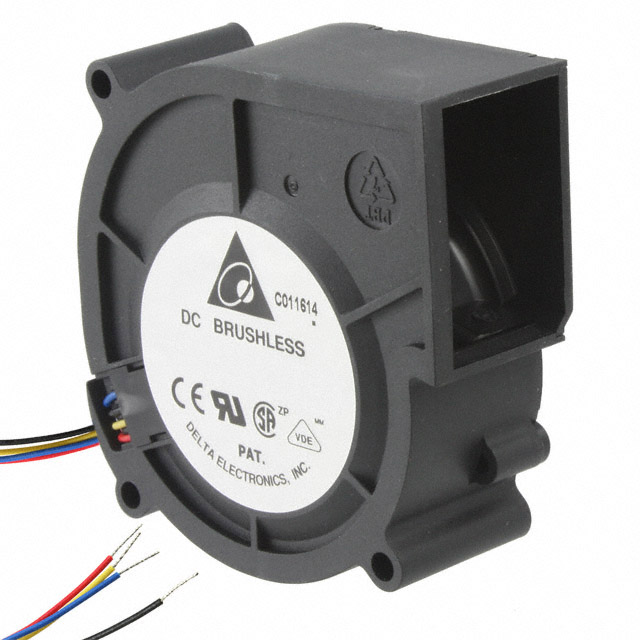

FAN BLOWER 96.6X32.9MM 12VDC

Part	Material - Blade	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Fan Type	RPM	Weight	Weight	Noise	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Width [y]	Air Flow	Air Flow	Power (Watts)	Features	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Static Pressure	Static Pressure	Width	Weight [custom]	Weight [custom]	Approval Agency	Width [x]	Ingress Protection

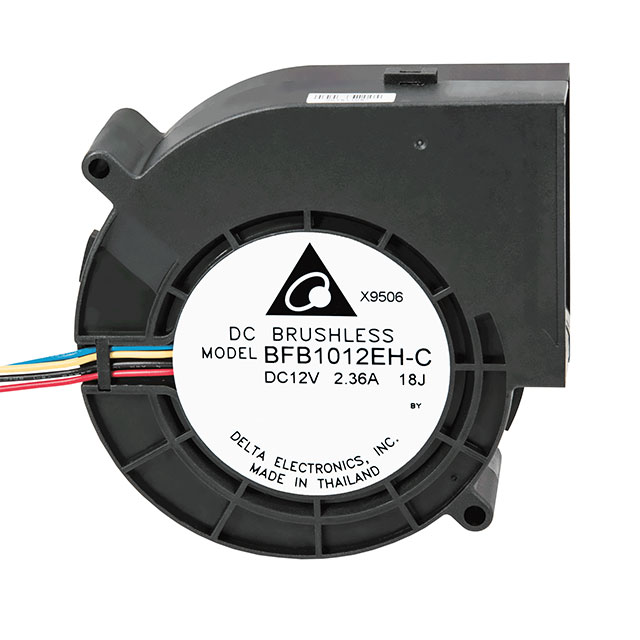

Delta Electronics BFB1012EH-C18J	Plastic	90000 Hrs	14 V	10.8 VDC	1.97 A	Plastic	Blower	5800 RPM	180.08 g	0.397 lb	62 dB(A)	Ball	70 °C	-10 °C	4 Wire Leads	32.9 mm	1.27 m³/min	45.5 CFM	23.64 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	94.3 mm	96.6 mm	Rectangular/Rounded	3.694 in H2O	920.1 Pa

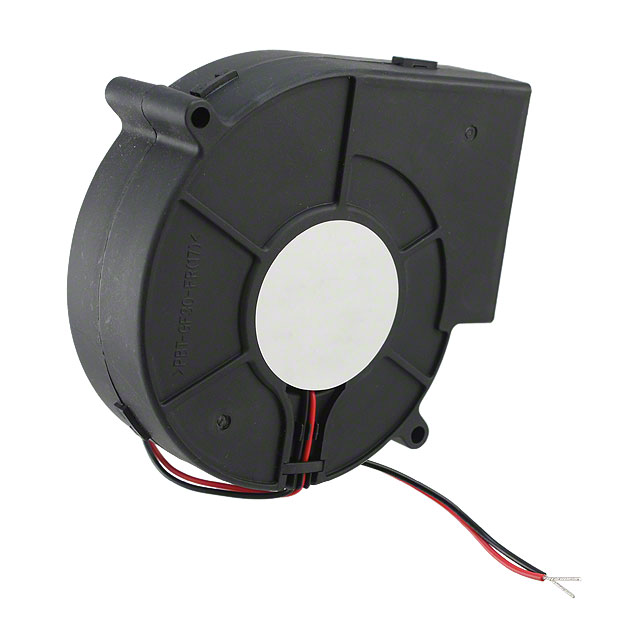

Delta Electronics BFB1012M-A	Plastic	40 °C 50000 Hrs	13.2 VDC	4 VDC	0.55 A	Plastic	Blower	3200 RPM			52.5 dB(A)	Ball	60 °C	-10 °C	2 Wire Leads		0.633 mł/min	22.6 CFM	6.6 W		12 VDC	94.4 mm	97.2 mm	Rectangular/Rounded	0.893 in H2O	222.4 Pa	33 mm	166.01 g	0.366 lb	CE CSA UL VDE

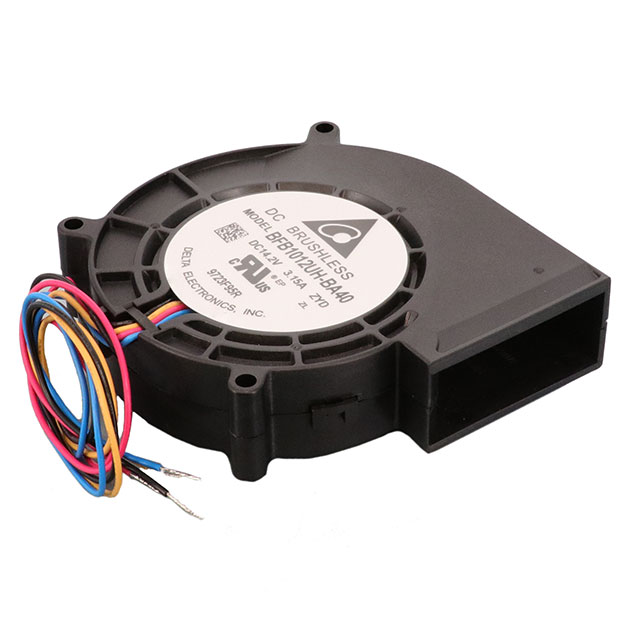

Delta Electronics BFB1012UH-BA40ZYD	Plastic	40 °C 50000 Hrs	16.8 VDC	12 VDC	2.15 A	Plastic	Blower	7000 RPM	175.09 g	0.386 lb	68 dB	Ball	50 °C	-10 °C	4 Wire Leads		1.04 mł/min	37 CFM	30.53 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	14.2 VDC	94.3 mm	96.6 mm	Rectangular/Rounded	4.764 in H2O	1186.7 Pa				CE CSA UL VDE	24.9 mm
Delta Electronics BFB1012HH-TP48	Plastic	40 °C 50000 Hrs	13.2 VDC	10.8 VDC	0.69 A	Plastic	Blower	3200 RPM	180.08 g	0.397 lb	53.5 dB	Ball	60 °C	-10 °C	4 Wire Leads		0.792 m³/min	28.3 CFM	8.28 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	94.4 mm	97.2 mm	Rectangular/Rounded	0.947 in H2O	235.9 Pa	33 mm			CE CSA UL VDE

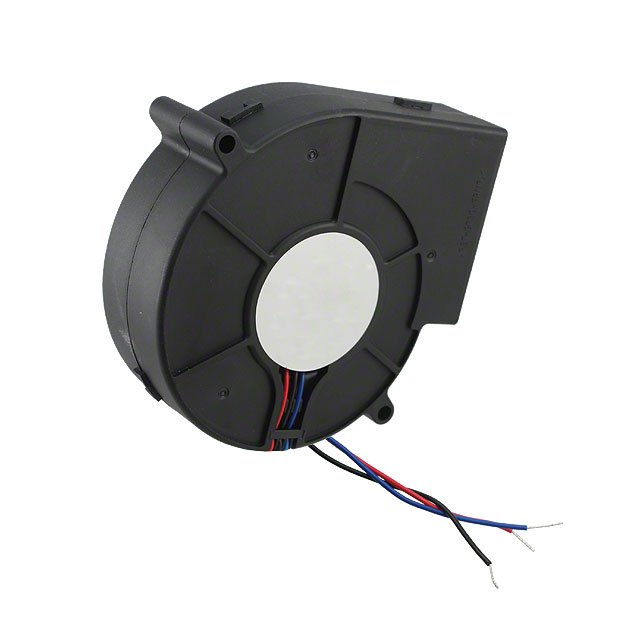

Delta Electronics BFB1012EH-AF00	Plastic	40 °C 50000 Hrs	12.6 VDC	7 V	2.45 A	Plastic	Blower	5300 RPM	180.08 g	0.397 lb	64 dB(A)	Ball	60 °C	-10 °C	3 Wire Leads		1.29 m³/min	46 CFM	29.4 W	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	94.4 mm	97.2 mm	Rectangular/Rounded			33 mm			CE CSA UL VDE

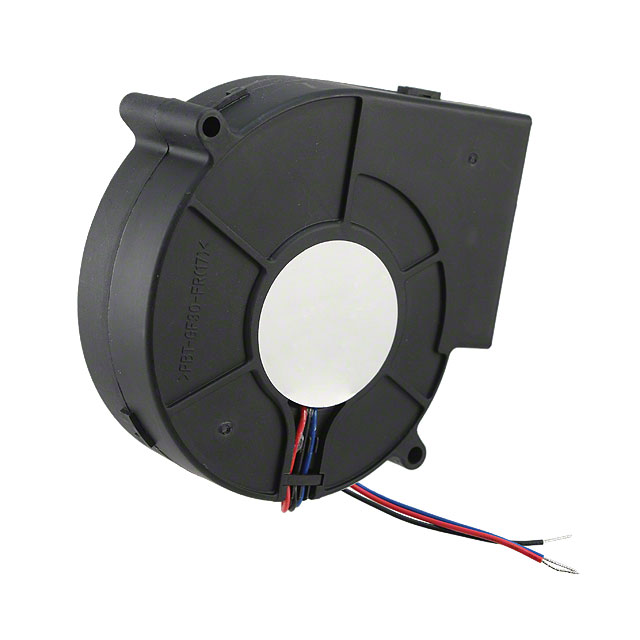

Delta Electronics BFB1012L-TA5R	Plastic	40 °C 50000 Hrs	13.2 VDC	3.5 VDC	0.37 A	Plastic	Blower	2700 RPM	180.08 g	0.397 lb	49.5 dB	Ball	60 °C	-10 °C	3 Wire Leads		0.65 m³/min	23.2 CFM	4.4 W	Locked Rotor Sensor	12 VDC				0.585 in H2O	145.7 Pa	33 mm			CE CSA UL VDE		IP55 - Dust Protected Water Resistant

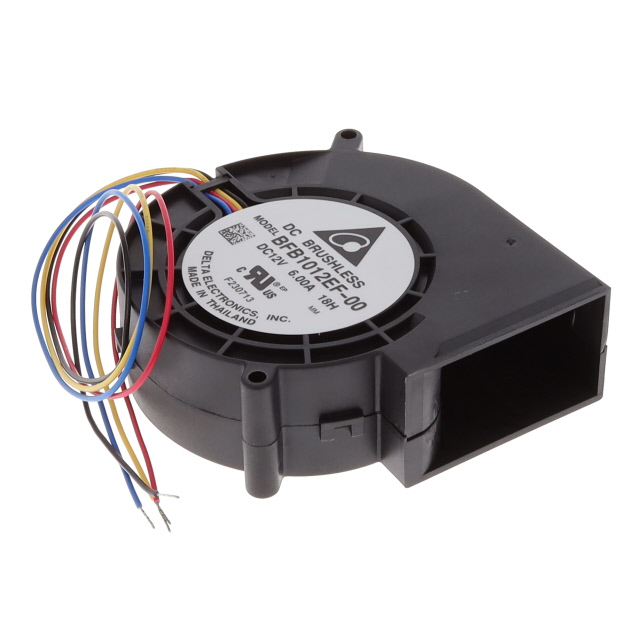

Delta Electronics BFB1012EF-0018H	Plastic	50000 Hrs	12.6 VDC	10.8 VDC	5 A	Plastic	Blower	7500 RPM	180.08 g	0.397 lb		Ball	70 °C	-10 °C	4 Wire Leads	32.9 mm	1.57 m³/min	56.1 CFM	60 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	94.3 mm	96.6 mm	Rectangular/Rounded	6.903 in H2O	1719.5 Pa

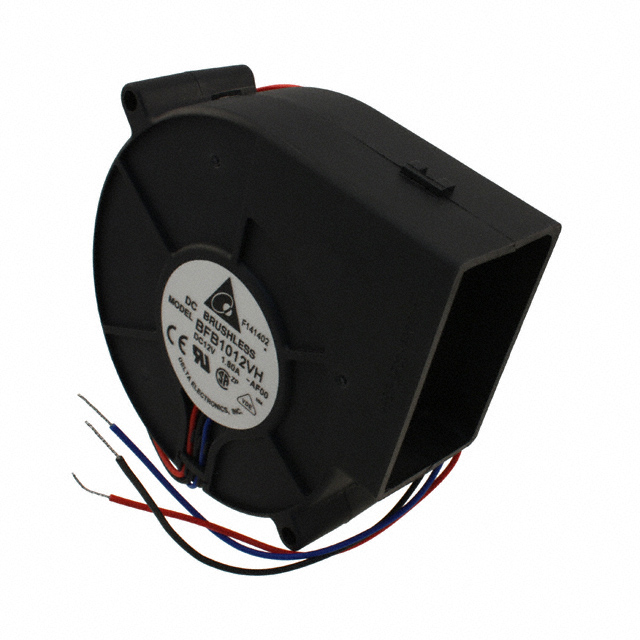

Delta Electronics BFB1012VH-AF00	Plastic	40 °C 50000 Hrs	13.2 VDC	7 V	1.5 A	Plastic	Blower	4500 RPM	180.08 g	0.397 lb	60 dB(A)	Ball	60 °C	-10 °C	3 Wire Leads		1.06 mł/min	38 CFM	18 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	12 VDC	94.4 mm	97.2 mm	Rectangular/Rounded	1.952 in H2O	486.2 Pa	33 mm			CE CSA UL VDE

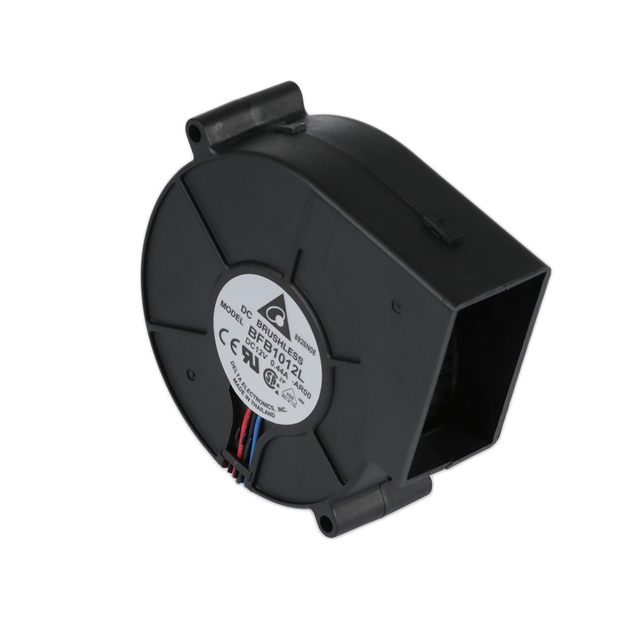

Delta Electronics BFB1012L-AR00	Plastic	40 °C 50000 Hrs	13.2 VDC	3.5 VDC	0.37 A	Plastic	Blower	2700 RPM	180.08 g	0.397 lb	49.5 dB	Ball	60 °C	-10 °C	3 Wire Leads		0.65 m³/min	23.2 CFM	4.4 W	Locked Rotor Sensor	12 VDC				0.585 in H2O	145.7 Pa	33 mm			CE CSA UL VDE
Delta Electronics BFB1012HD-04D4L	Plastic	40 °C 50000 Hrs	16 V	9 V	580 mA	Plastic	Blower	4000 RPM	125.19 g	0.276 lb	50.5 dB(A)	Ball	85 °C	-40 C	3 Wire Leads	22.9 mm	0.512 mł/min	18.3 CFM	6.96 W	Locked Rotor Protection PWM Control	12 VDC	80 mm	100 mm	Rectangular/Rounded	1.62 in H2O	403.5 Pa						IP55 - Dust Protected Water Resistant
