R19141 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

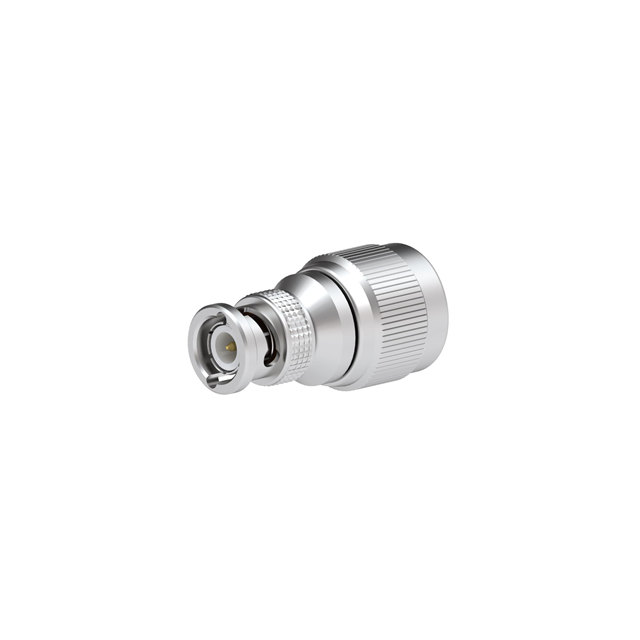

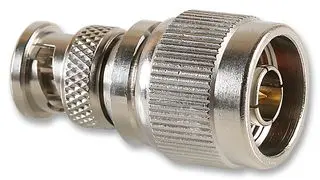

BNC MALE - N MALE STRAIGHT ADAPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Center Contact Material | Body Finish | Body Material | Adapter Series | Impedance | Adapter Type | Frequency - Max [Max] | Mounting Type | Center Gender | Fastening Type | Fastening Type | Center Contact Plating | Conversion Type | Convert To (Adapter End) | Style | Convert From (Adapter End) | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Brass | Nickel | Brass | BNC to N | 50 Ohms | Plug to Plug | 4 GHz | Free Hanging (In-Line) | Male to Male | Threaded | Bayonet Lock | Gold | Between Series | N Plug Male Pin | Straight | BNC Plug Male Pin | |

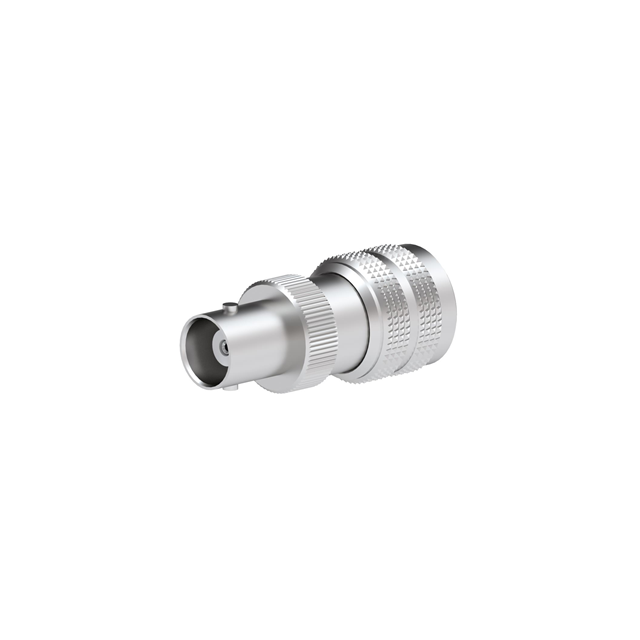

 Radiall USA, Inc. | -40 C | 100 °C | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper Brass | Chromium | Brass | BNC to MQ | 50 Ohms | Plug to Jack | 4 GHz | Free Hanging (In-Line) | Bayonet Lock Snap-On | Silver | Between Series | MQ Plug Male Pin | Straight | BNC Jack Female Socket | |||

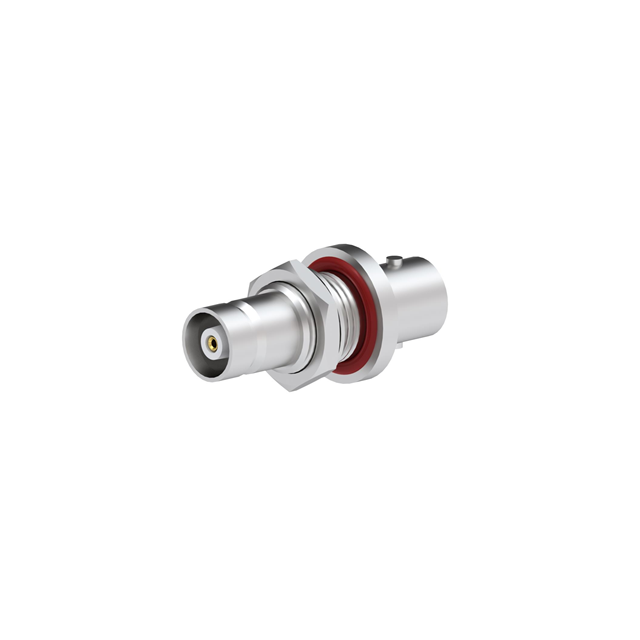

 Radiall USA, Inc. | Chromium | BNC to MQ | 50 Ohms | Jack to Jack | 4 GHz | Panel Mount | Female to Female | Bayonet Lock Snap-On | Silver | Between Series | Female Socket MQ Jack | Straight | BNC Jack Female Socket | Bulkhead | |||||||

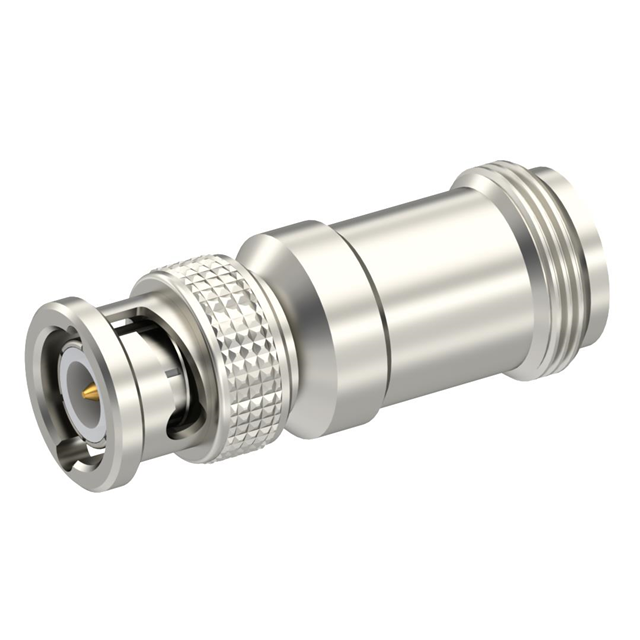

 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Nickel | Brass | BNC to N | 50 Ohms | Plug to Jack | 4 GHz | Free Hanging (In-Line) | Threaded | Bayonet Lock | Gold | Between Series | BNC Plug Male Pin | Straight | Female Socket N Jack |
