UPL220 Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K

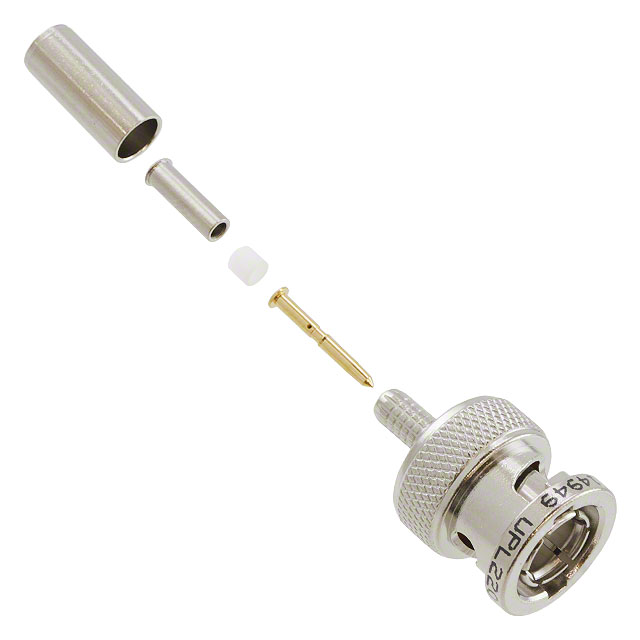

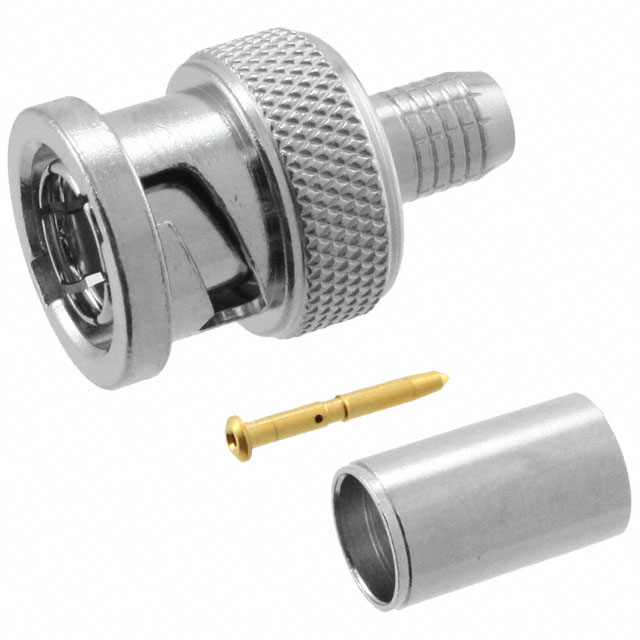

CONN BNC PLUG STR 75 OHM CRIMP
| Part | Body Finish | Dielectric Material | Body Material | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Connector Style | Contact Termination | Fastening Type | Impedance | Center Contact Material | Cable Group | Number of Ports | Connector Type | Frequency - Max [Max] | Housing Color | Mounting Type | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | Nickel | Polytetrafluoroethylene (PTFE) | Brass | 500 V | Gold | -65 ░C | 165 °C | Crimp | BNC | Crimp | Bayonet Lock | 75 Ohms | Brass | Belden 8218 Essex 21-597 YR23023 | 1 | Plug Male Pin | 4 GHz | Silver | Free Hanging (In-Line) | |
 Cinch Connectivity Solutions Trompeter | Nickel | Polytetrafluoroethylene (PTFE) | Brass | 500 V | Gold | -65 ░C | 165 °C | Crimp | BNC | Crimp | Bayonet Lock | 75 Ohms | Brass | 187 RG-179 | 1 | Plug Male Pin | 4 GHz | Silver | Free Hanging (In-Line) | 1 Bushing 1 Connector 1 Contact 1 Sleeve |
