207444 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 18POS 5MM

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Mounting Type	Number of Positions	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Finish - Mating	Insulation Color	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Termination	Contact Finish - Post	Style	Insulation Material	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insulation Height	Insulation Height	Shrouding	Voltage Rating	Fastening Type	Contact Type	Features
TE Connectivity Raychem Cable Protection 1-207444-1	5 mm	0.197 in	150 Áin	3.81 Ám	Automotive General Purpose Industrial	Through Hole	18	3	5 mm	0.197 "	Circular	Gold PdNi +Gold	Black Red	UL94 V-0	30 Áin	0.76 Ám	All	Solder	Tin	Board to Board Cable	Nylon Polyamide (PA)	Brass	0.181 in	4.6 mm	7.5 A	130 °C	-55 °C	Header	0.464 in	11.79 mm	Shrouded - 4 Wall	600 V	Latch Lock	Male Pin

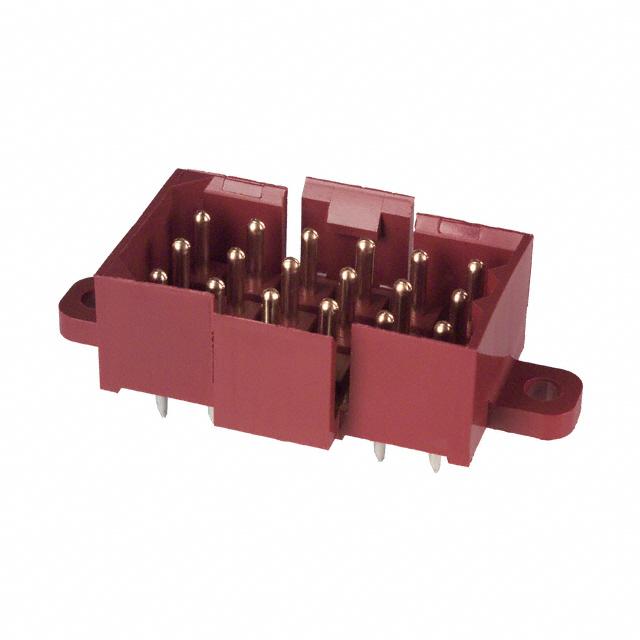

TE Connectivity Raychem Cable Protection 207444-3	5 mm	0.197 in	150 Áin	3.81 Ám	Automotive General Purpose Industrial	Through Hole	18	3	5 mm	0.197 "	Circular	Gold	Black Red	UL94 V-0	30 Áin	0.76 Ám	All	Solder	Tin-Lead	Board to Board Cable	Nylon Polyamide (PA)	Brass	0.181 in	4.6 mm	7.5 A	130 °C	-55 °C	Header	0.464 in	11.79 mm	Shrouded - 4 Wall	600 V	Latch Lock	Male Pin	Mounting Flange
TE Connectivity Raychem Cable Protection 207444-8	5 mm	0.197 in	150 Áin	3.81 Ám	Automotive General Purpose Industrial	Through Hole	18	3	5 mm	0.197 "	Circular	Gold	Black Red	UL94 V-0	30 Áin	0.76 Ám	All	Solder	Tin	Board to Board Cable	Nylon Polyamide (PA)	Brass	0.181 in	4.6 mm	7.5 A	130 °C	-55 °C	Header	0.464 in	11.79 mm	Shrouded - 4 Wall	600 V	Latch Lock	Male Pin	Mounting Flange
