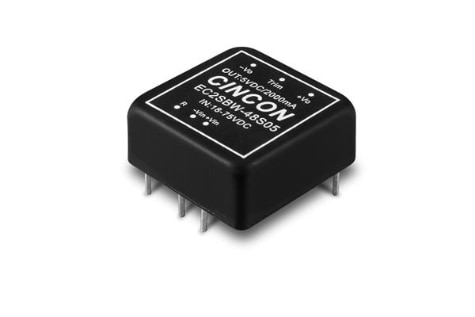

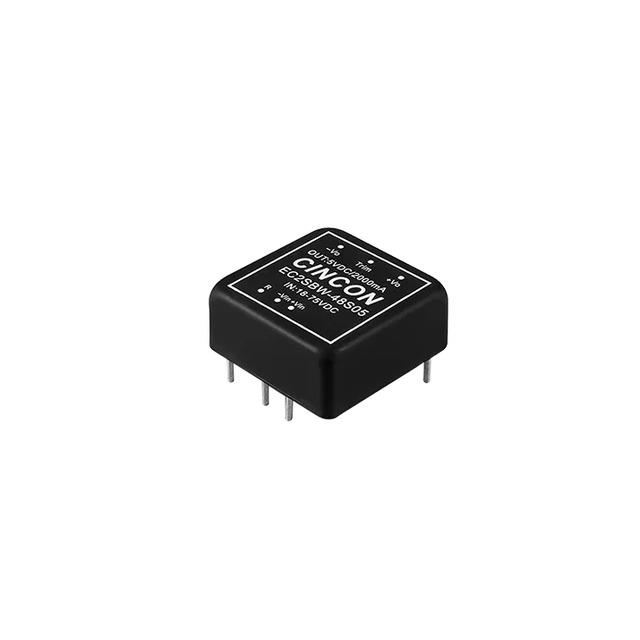

EC2SBW Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE
| Part | Voltage - Input (Min) [Min] | Voltage - Output 2 | Standard Number | Mounting Type | Efficiency | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Control Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Approval Agency | Features | Voltage - Input (Max) [Max] | Package / Case | Current - Output (Max) | Power (Watts) | Type | Applications | Current - Output (Max) [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 9 V | -5 V | 60950-1 | Through Hole | 84 % | 1.5 kV | -40 °C | 85 °C | 2 | Active Low Enable | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 5 V | CE | OCP OVP Remote On/Off SCP UVLO | 36 V | 6-DIP Module | 1 A | 10 W | Isolated Module | ITE (Commercial) | ||
 Cincon Electronics Co. LTD | 18 V | -12 V | 60950-1 | Through Hole | 86 % | 1.5 kV | -40 °C | 85 °C | 2 | Active High Enable | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 12 V | CE | OCP OVP Remote On/Off SCP UVLO | 75 V | 6-DIP Module | 10 W | Isolated Module | ITE (Commercial) | 416 mA | 416 mA | |
 Cincon Electronics Co. LTD | 18 V | 60950-1 | Through Hole | 86 % | 1.5 kV | -40 °C | 85 °C | 1 | Active Low Enable | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 15 V | CE | OCP OVP Remote On/Off SCP UVLO | 75 V | 6-DIP Module | 10 W | Isolated Module | ITE (Commercial) | 666 mA | |||
Cincon Electronics Co. LTD | 18 V | -5 V | 60950-1 | Through Hole | 84 % | 1.5 kV | -40 °C | 85 °C | 2 | Active Low Enable | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 5 V | CE | OCP OVP Remote On/Off SCP UVLO | 75 V | 6-DIP Module | 1 A | 10 W | Isolated Module | ITE (Commercial) | ||
Cincon Electronics Co. LTD | 18 V | 60950-1 | Through Hole | 1.5 kV | -40 °C | 85 °C | 1 | Active Low Enable | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 3.3 V | CE | OCP OVP Remote On/Off SCP UVLO | 75 V | 6-DIP Module | 8.3 W | Isolated Module | ITE (Commercial) | 2.5 A | ||||
 Cincon Electronics Co. LTD | 9 V | 62368-1 | Through Hole | 89 % | 3000 V | -40 °C | 105 C | 1 | Active High Enable | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 12 V | CE UKCA | Adjustable Output Remote On/Off | 36 V | 6-DIP Module | 10 W | Isolated Module | ITE (Commercial) | 833 mA | |||
Cincon Electronics Co. LTD | 9 V | 60950-1 | Through Hole | 84 % | 1.5 kV | -40 °C | 85 °C | 1 | Active Low Enable | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 5 V | CE | OCP OVP Remote On/Off SCP UVLO | 36 V | 6-DIP Module | 10 W | Isolated Module | ITE (Commercial) | 2 A |
