CFS-0401 Series

Catalog

DIP SWITCH, 4PST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Electrical Life	Length [custom]	Length	Body Material	Current Rating (Amps)	Termination Style	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Mounting Type	Number of Positions	Contact Material	Circuit	Actuator Type	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish
Nidec Components Corporation CFS-0401TA	1000 Cycles	0.457 in	11.61 mm	Polyphenylene Sulfide (PPS)	100 mA	J Lead	0.154 in	3.9 mm	2.54 mm	0.1 "	Surface Mount	4	Copper Alloy	SPST	Slide (Standard)	Flush Recessed	85 °C	-40 C	6 V	Gold
Nidec Components Corporation CFS-0401TB	1000 Cycles	0.457 in	11.61 mm	Polyphenylene Sulfide (PPS)	100 mA	Gull Wing	0.146 in	3.7 mm	2.54 mm	0.1 "	Surface Mount	4	Copper Alloy	SPST	Slide (Standard)	Flush Recessed	85 °C	-40 C	6 V	Gold

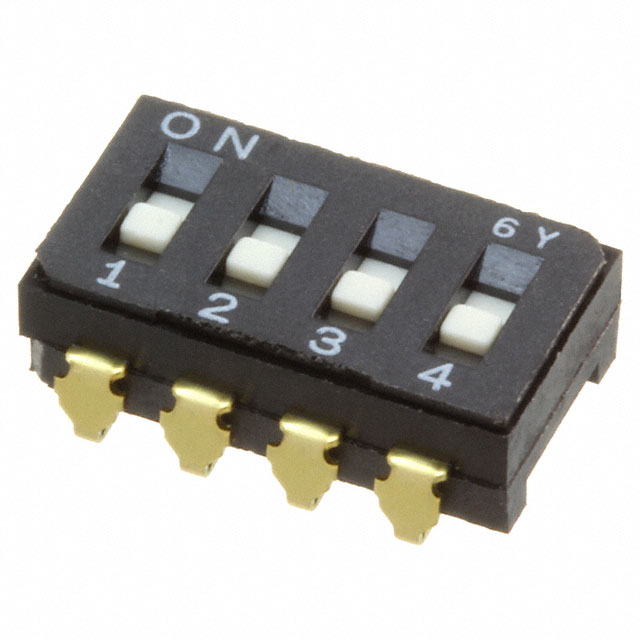

Nidec Components Corporation CFS-0401MA	1000 Cycles	0.457 in	11.61 mm	Polyphenylene Sulfide (PPS)	100 mA	J Lead	0.154 in	3.9 mm	2.54 mm	0.1 "	Surface Mount	4	Copper Alloy	SPST	Slide (Standard)	Flush Recessed	85 °C	-40 C	6 V	Gold
