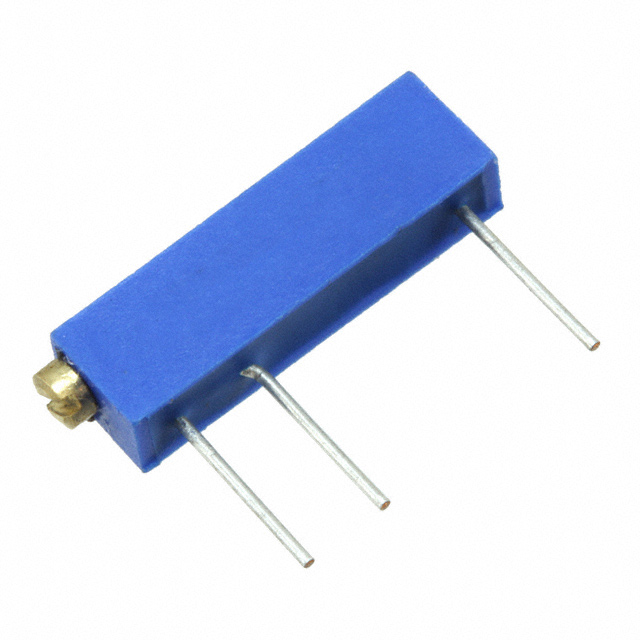

3082P Series

Catalog

TRIMMER-1/2 RECTANGULAR MT CERMET ROHS COMPLIANT: YES

Part	Temperature Coefficient	Termination Style	Resistive Material	Mounting Type	Resistance	Power (Watts)	Tolerance	Number of Turns	Size / Dimension [x]	Size / Dimension [y]	Adjustment Type	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. 3082P-1-203LF	100 ppm/°C	PC Pins	Cermet	Through Hole	20 kOhms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
Bourns Inc. 3082P-45-103LF	100 ppm/°C	PC Pins	Cermet	Through Hole	10000 Ohms	300 mW	10 %	10	0.169 "	0.115 in	Side Adjustment	2.92 mm	4.3 mm
Bourns Inc. 3082P-45-102LF	100 ppm/°C	PC Pins	Cermet	Through Hole	1000 Ohms	300 mW	10 %	10	0.169 "	0.115 in	Side Adjustment	2.92 mm	4.3 mm
Bourns Inc. 3082P-1-501LF	100 ppm/°C	PC Pins	Cermet	Through Hole	0.5 kOhms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
Bourns Inc. 3082P-1-503LF	100 ppm/°C	PC Pins	Cermet	Through Hole	50000 Ohms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
Bourns Inc. 3082P-1-102LF	100 ppm/°C	PC Pins	Cermet	Through Hole	1000 Ohms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
Bourns Inc. 3082P-1-203	100 ppm/°C	PC Pins	Cermet	Through Hole	20 kOhms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
Bourns Inc. 3082P-1-104LF	100 ppm/°C	PC Pins	Cermet	Through Hole	100 kOhms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
Bourns Inc. 3082P-1-202	100 ppm/°C	PC Pins	Cermet	Through Hole	2 kOhms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
Bourns Inc. 3082P-1-201LF	100 ppm/°C	PC Pins	Cermet	Through Hole	200 Ohms	300 mW	10 %	10	0.15 " 3.8 mm	0.115 in 2.92 mm	Side Adjustment
