Pts8450 Series Series

4.5 × 3.4 Side Actuated SMT Tact Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

4.5 × 3.4 Side Actuated SMT Tact Switch

Part	Operating Force	Switch Travel	Circuit	Contact Rating @ Voltage	Actuator Type	Actuator Length, Right Angle	Outline [x]	Outline [y]	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Illumination	Actuator Orientation	Termination Style	Mounting Type
Littelfuse/Commercial Vehicle Products PTS845VK20PSMTR4 LFS	260 gf	0.2 mm	SPST-NO	0.05 A 12 VDC	Standard	3.4 mm	4.5 mm	2.55 mm	100000 Cycles	90 °C	-40 °C	Off-Mom	Non-Illuminated	Side Actuated	Gull Wing	Surface Mount Right Angle

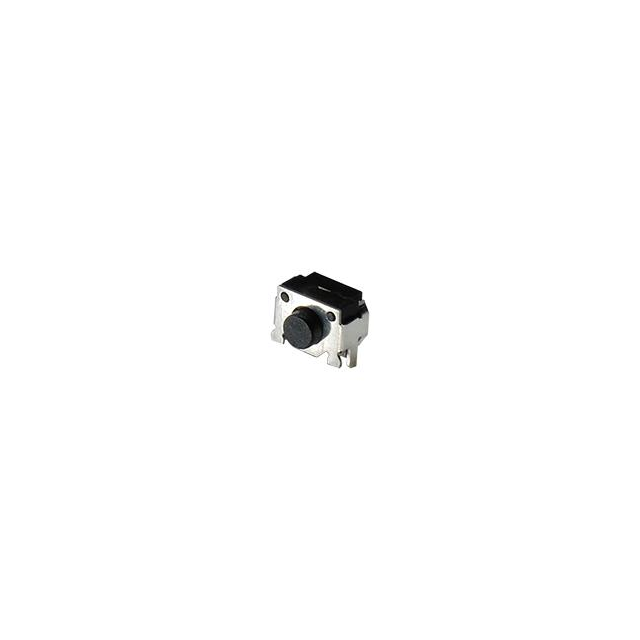

Littelfuse/Commercial Vehicle Products PTS845VM20PSMTR4 LFS		0.2 mm	SPST-NO	0.05 A 12 VDC	Standard	3.4 mm	4.5 mm	2.55 mm	100000 Cycles	90 °C	-40 °C	Off-Mom	Non-Illuminated	Side Actuated	Gull Wing	Surface Mount Right Angle
Littelfuse/Commercial Vehicle Products PTS845VH20PSMTR2LFS	200 gf	0.2 mm	SPST-NO	0.05 A 12 VDC	Standard	3.4 mm	4.5 mm	2.55 mm	1000000 Cycles	85 °C	-40 °C	Off-Mom	Non-Illuminated	Side Actuated	Gull Wing	Surface Mount Right Angle

Catalog

4.5 × 3.4 Side Actuated SMT Tact Switch

Key Features

• 4.5 x 3.4 x 3.3 mm package

• SMT termination

• Side actuated with bracket peg design

• 80, 160 and 260 gf versions

• Lifecycles up to 1,000,000

Description

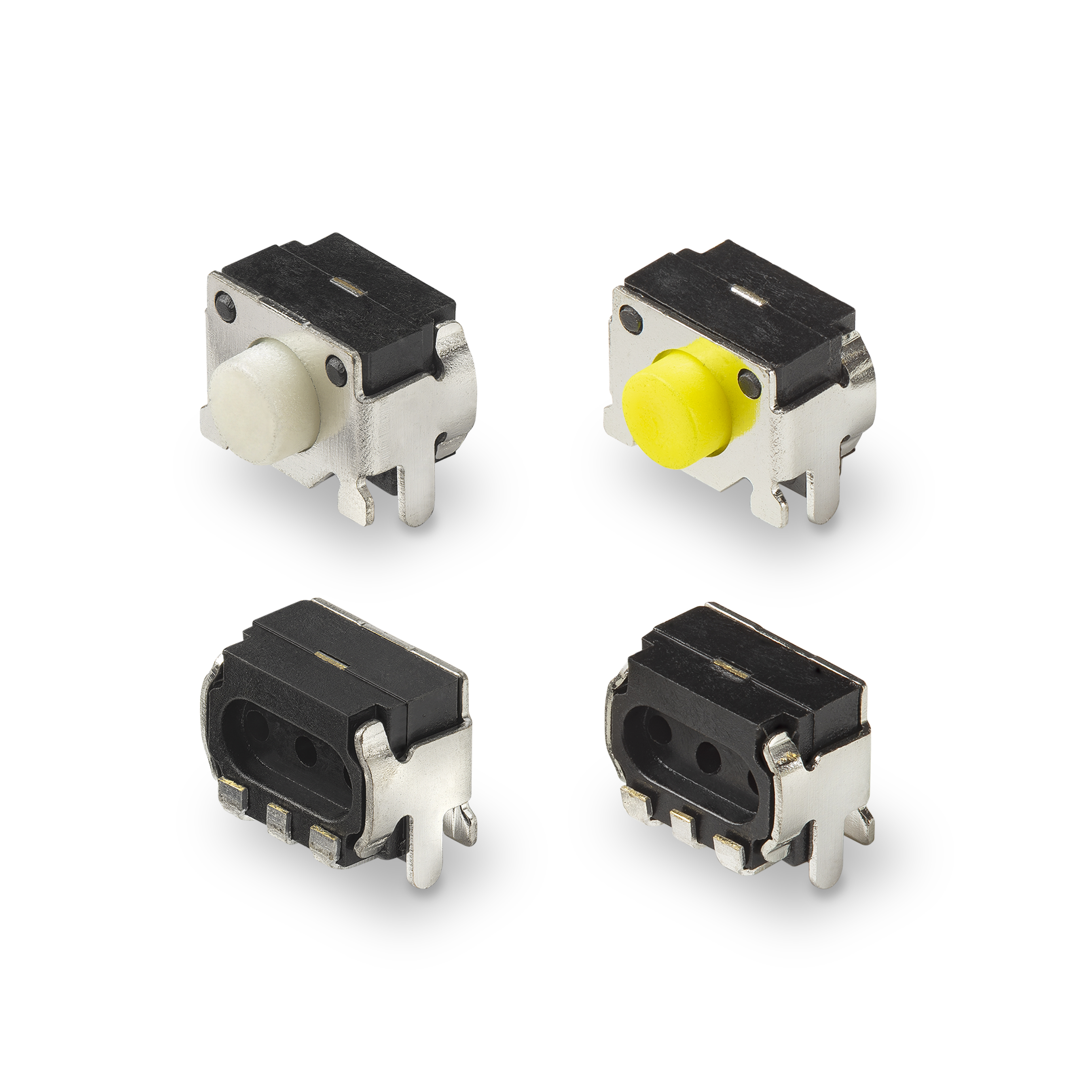

The PTS845 series features a compact, side-actuated tactile switch that enables designers to either free up space on the PCB for added functionality or reduce the overall size of their design. It offers operating forces of 80, 160, and 260 gf. The bracket peg design ensures better mounting strength. The PTS845 tactile switch is suitable for a wide range of applications, including telecom devices, gaming peripherals, and dash cameras
