4130-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

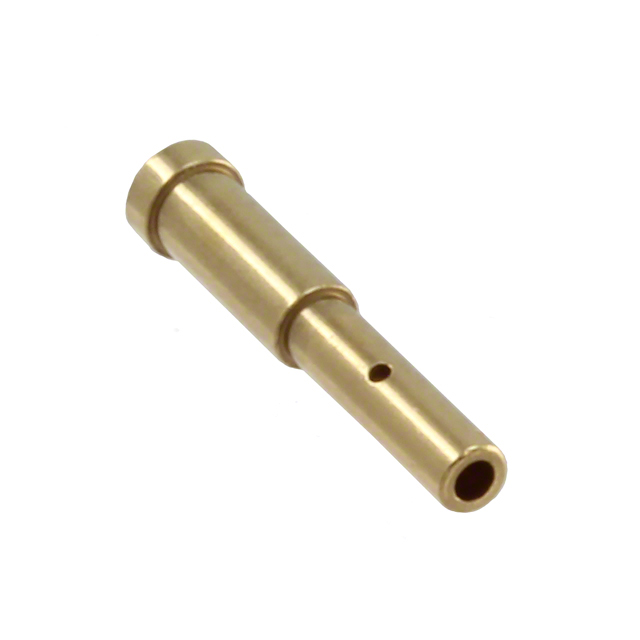

CONN PIN RCPT .032-.046 CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Termination | Tail Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Finish | Length - Overall | Length - Overall | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | Crimp | No Tail | 30 Áin | 0.76 Ám | Beryllium Copper | Gold | 11.43 mm | 0.45 in | 1.63 mm | 0.064 in | 0.09 in | 2.29 mm |
