21511 Series
Manufacturer: Pflitsch
Beta
⌘K

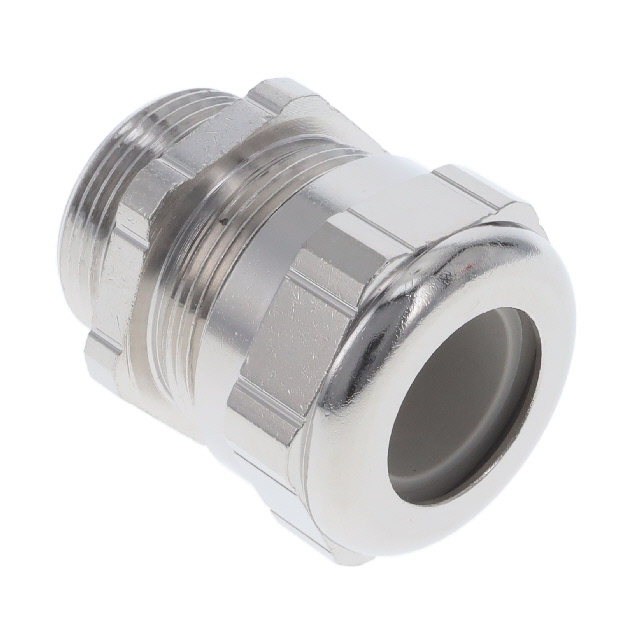

CABLE GLAND 13.97-18.03MM PG21
| Part | Thread Size | Ingress Protection | Color | Panel Hole Size | Panel Hole Size | Type | Operating Temperature [Min] | Operating Temperature [Max] | Thread Length | Thread Length | Material | Includes | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pflitsch | PG21 | IP68 - Dust Tight Waterproof NEMA 4X | Silver | 1.12 in | 28.4 mm | Cable Gland | -40 C | 300 °C | 0.43 in | 10.92 mm | Brass Nickel Plated | Sealing Ring | 18.03 mm | 0.71 in | 13.97 mm | 0.55 in |
