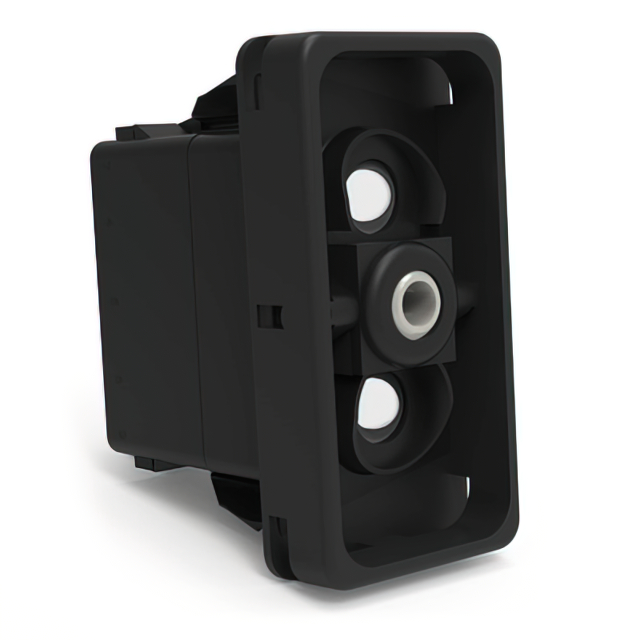

V4D2U661 Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER SPDT 20A 12V
| Part | Ingress Protection | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Illumination Voltage (Nominal) | Switch Function | Circuit | Actuator Marking | Current Rating (Amps) | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Electrical Life | Mechanical Life | Approval Agency | Illumination Type, Color | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | IP66/IP68 | 21.08 mm | 36.83 mm | Quick Connect - 0.250" (6.3mm) | 12 VAC/DC | On-On | SPDT | Varies by Cap | 20 A | 12 V | 85 °C | -40 °C | Panel Mount Snap-In | 100000 Cycles | 100000 Cycles | CSA UL VDE | Incandescent | Actuator Arm Cap Required - Illuminated |
