JL04V-2E Series

Catalog

CONN RCPT MALE 7P SOLDER CUP

Part	Connector Type	Mounting Feature	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Applications	Contact Finish - Mating	Shell Finish	Color	Contact Material	Current Rating (Amps)	Cable Opening	Cable Opening	Insert Material	Fastening Type	Ingress Protection	Mounting Type	Features	Voltage Rating	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Material	Shell Size - Insert	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Current Rating (Amps)

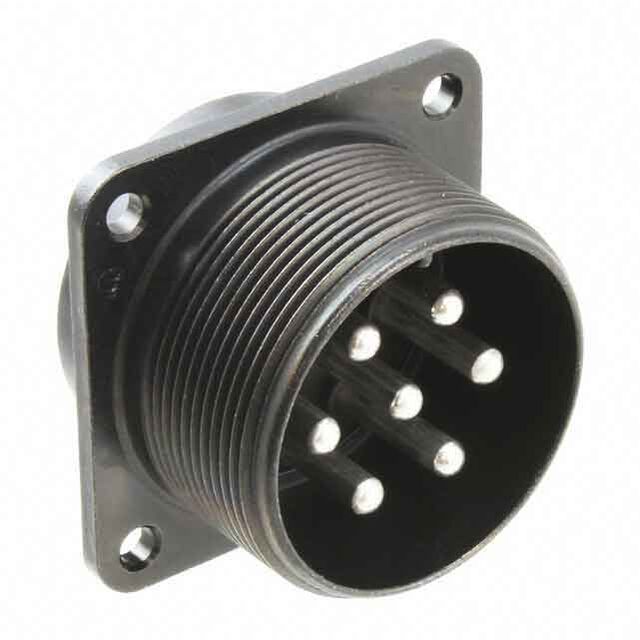

JAE Electronics JL04V-2E24-10PE(G)-B-R	Receptacle Male Pins	Flange	7	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	46 A	1.417 "	36 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground	250 VAC	Metal	24	10	Aluminum Alloy
JAE Electronics JL04V-2E20-4PE-B-R	Receptacle Male Pins	Flange	4	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	23 A	1.165 in	29.6 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal	20	4	Aluminum Alloy

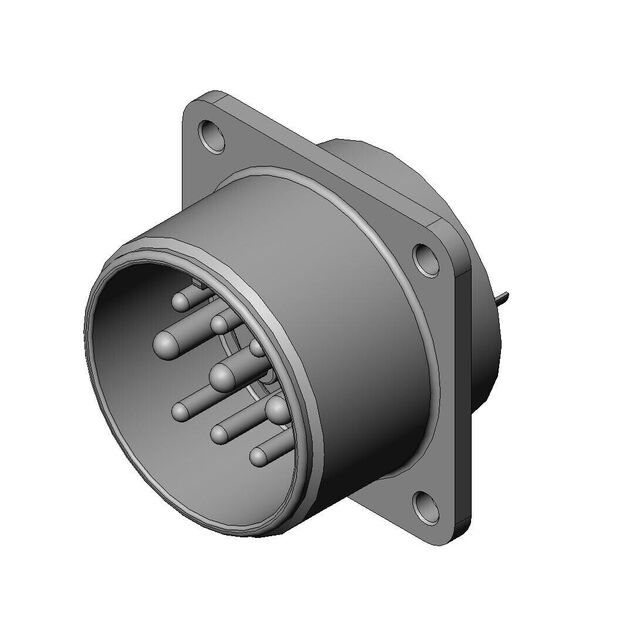

JAE Electronics JL04V-2E24-11PE-B-R	Receptacle Male Pins	Flange	9	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	23 A 46 A	1.417 "	36 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal			Aluminum Alloy	24-11

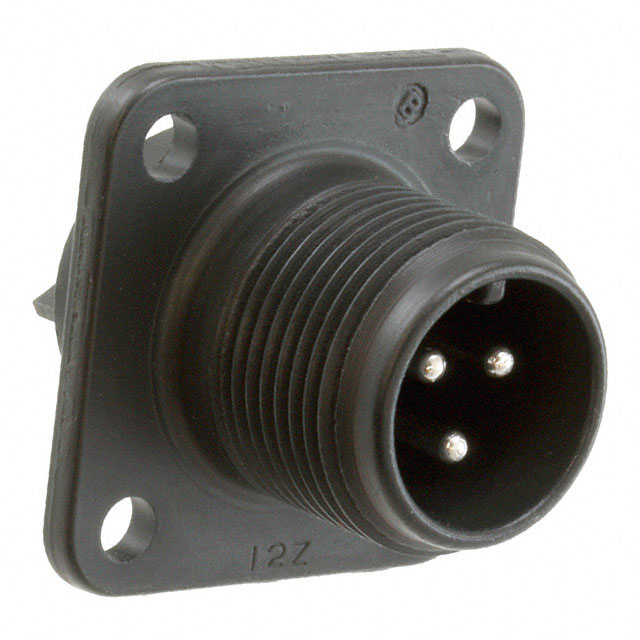

JAE Electronics JL04V-2E10SL-3PE-B-R	Receptacle Male Pins	Flange	3	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	13 A	0.622 in	15.8 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal			Aluminum Alloy	10SL-3

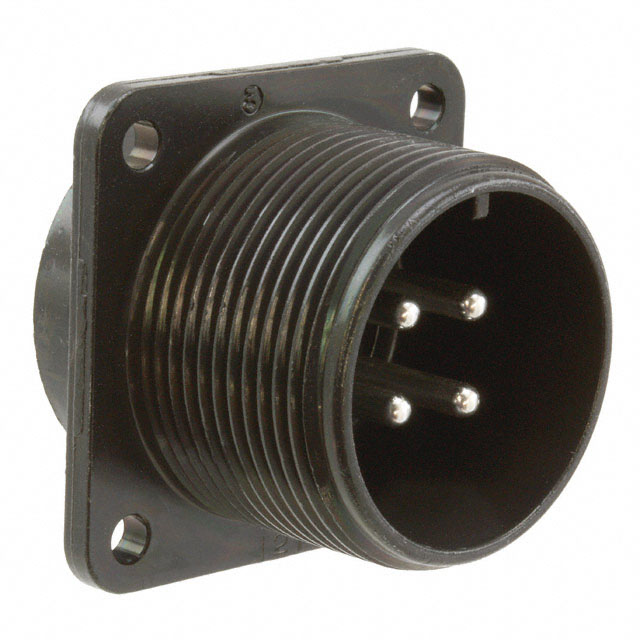

JAE Electronics JL04V-2E18-10PE-B-R	Receptacle Male Pins	Flange	4	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	23 A	1.063 in	27 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal			Aluminum Alloy		18	10
JAE Electronics JL04V-2E22-J1PE-R	Receptacle Male Pins	Flange	18	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy		1.26 in	32 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal			Aluminum Alloy	22-J1			13A 23A 5A
JAE Electronics JL04V-2E20-15PE-B-R	Receptacle Male Pins	Flange	7	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	23 A	1.165 in	29.6 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal	15	20	Aluminum Alloy

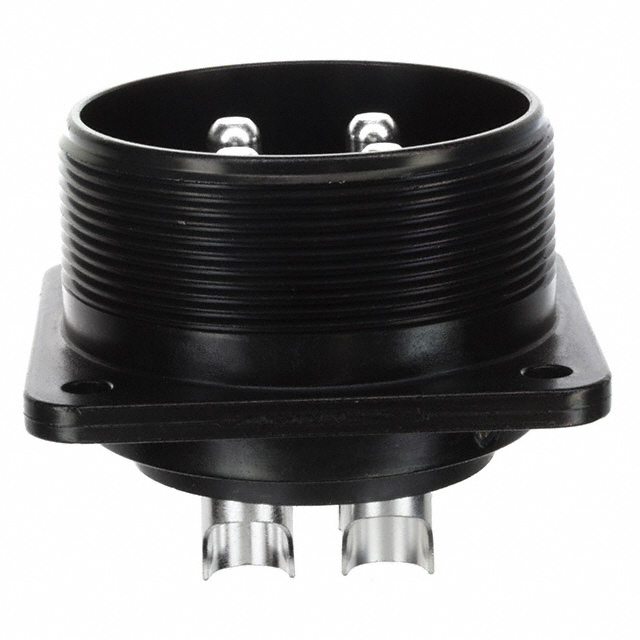

JAE Electronics JL04V-2E32-17PE-B-R	Receptacle Male Pins	Flange	4	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	80 A	1.884 in	47.85 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal			Aluminum Alloy	32-17

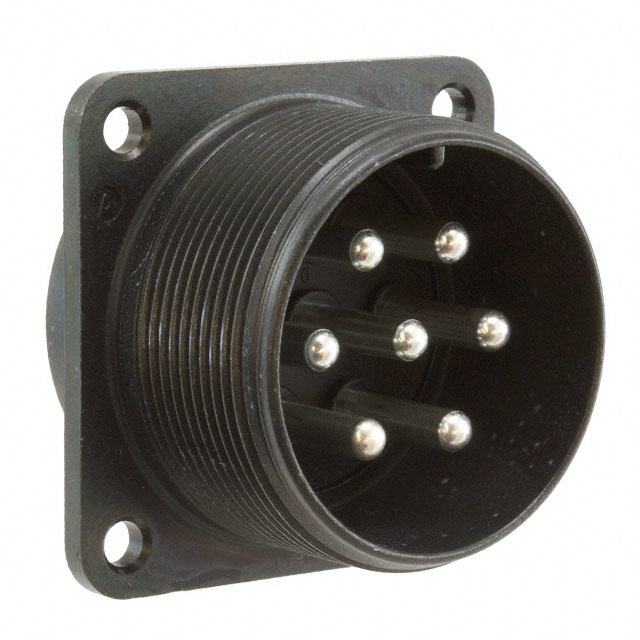

JAE Electronics JL04V-2E24-10PE-B-R	Receptacle Male Pins	Flange	7	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	46 A	1.417 "	36 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground		Metal	24	10	Aluminum Alloy
JAE Electronics JL04V-2E18-12PE-B-R	Receptacle Male Pins	Flange	6	-55 C	125 °C	N (Normal)	Industrial Medical Telecommunications Test Equipment & Measurement	Silver	Zinc	Black	Copper Alloy	13 A	0.978 in	24.85 mm	Silicon Rubber	Threaded	IP67 - Dust Tight Waterproof	Panel Mount	Ground	250 VAC	Metal	18	12	Aluminum Alloy
