MB2065S Series

Catalog

SWITCH PUSHBUTTON SPDT 6A 125V

Part	Mechanical Life	Electrical Life	Switch Function	Termination Style	Voltage Rating - DC	Features	Mounting Type	Actuator Type	Current Rating (Amps)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Marking	Circuit	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Ingress Protection

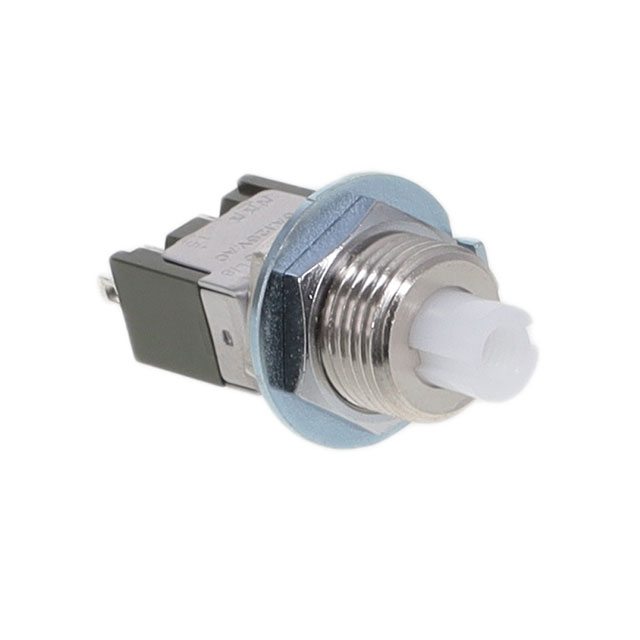

NKK Switches MB2065SB1W01	100000 Cycles	25000 Steps	On-On	Solder Lug	30 V	Epoxy Sealed Terminals	Panel Mount Rear	Plunger for Cap	3 A 6 A	125 V	12.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C
NKK Switches MB2065SS2W13-BG	100000 Cycles	25000 Steps	On-On	PC Pin	30 V	Epoxy Sealed Terminals	Through Hole	Button Round	3 A 6 A	125 V	6.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C	Blue
NKK Switches MB2065SD3W01-CC	50000 Cycles	25000 Steps	On-On	Solder Lug	30 V	Epoxy Sealed Terminals	Panel Mount Rear	Button Round	3 A 6 A	125 V	6.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C	Red	IP67 - Dust Tight Waterproof
NKK Switches MB2065SS2G30-BH	100000 Cycles	50000 Cycles	On-On	PC Pin	28 V	Epoxy Sealed Terminals	Right Angle Through Hole	Button Round	0.4 VA	28 V		No Marking	SPDT	Standard	85 °C	-30 ░C

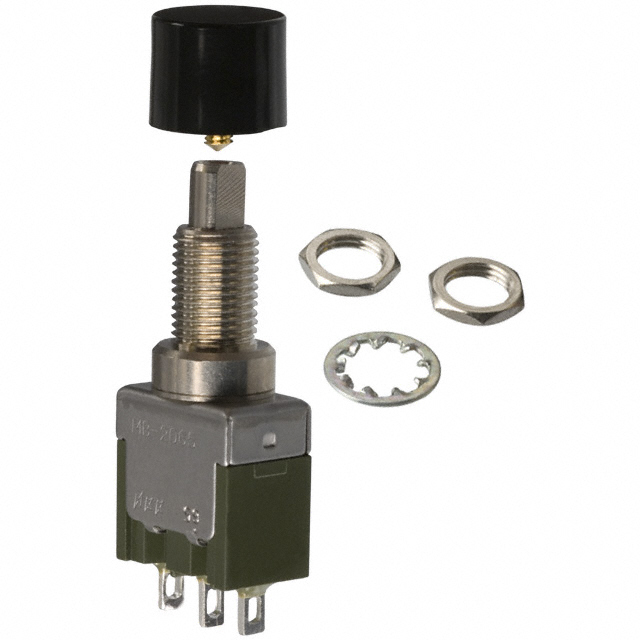

NKK Switches MB2065SS1W01-CA	100000 Cycles	25000 Steps	On-On	Solder Lug	30 V	Epoxy Sealed Terminals	Panel Mount Rear	Button Round	3 A 6 A	125 V	6.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C	Black

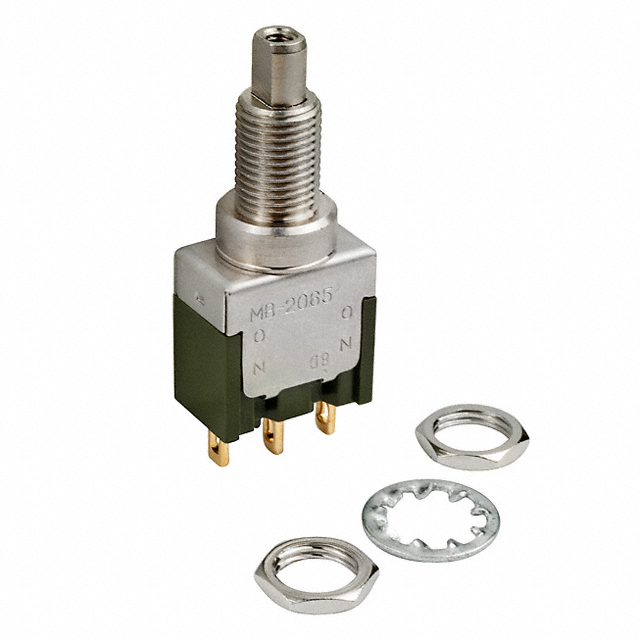

NKK Switches MB2065SS1G01	100000 Cycles	50000 Cycles	On-On	Solder Lug	28 V	Epoxy Sealed Terminals	Panel Mount Rear	Plunger for Cap	0.4 VA	28 V	6.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C
NKK Switches MB2065SS1W01-CG	100000 Cycles	25000 Steps	On-On	Solder Lug	30 V	Epoxy Sealed Terminals	Panel Mount Rear	Button Round	3 A 6 A	125 V	6.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C	Blue

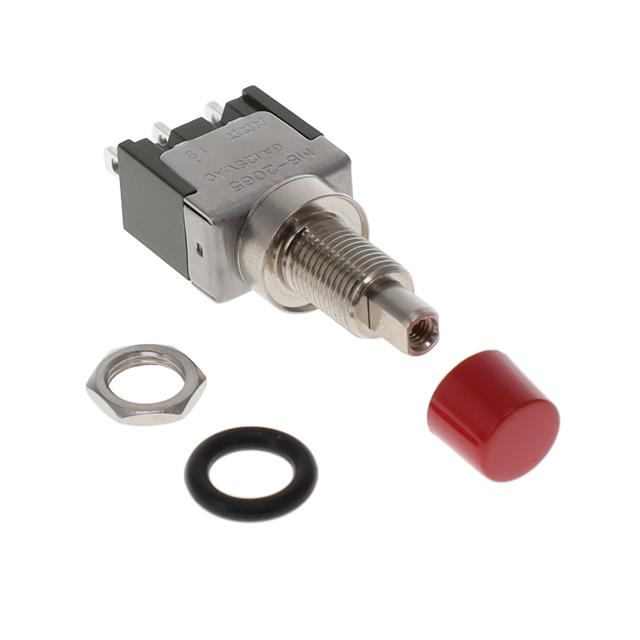

NKK Switches MB2065SD3W01-BC	50000 Cycles	25000 Steps	On-On	Solder Lug	30 V	Epoxy Sealed Terminals	Panel Mount Rear	Button Round	3 A 6 A	125 V	6.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C	Red	IP67 - Dust Tight Waterproof
NKK Switches MB2065SB1W01-4G-A	100000 Cycles	25000 Steps	On-On	Solder Lug	30 V	Epoxy Sealed Terminals	Panel Mount Rear	Button Round	3 A 6 A	125 V	12.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C	Blue
NKK Switches MB2065SS1W01-BG	100000 Cycles	25000 Steps	On-On	Solder Lug	30 V	Epoxy Sealed Terminals	Panel Mount Rear	Button Round	3 A 6 A	125 V	6.5 mm	No Marking	SPDT	Standard	85 °C	-30 ░C	Blue
