VLD25 Series

Manufacturer: CUI Inc.

Catalog

LED DRIVER 9V/12V/15V/18V/24V 6-PIN DIP MODULE

Part	Features	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Type	Voltage - Input (Max) [Max]	Dimming	Power (Watts)	Voltage - Output [Max]	Voltage - Output [Min]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Approval Agency	Topology	Number of Outputs	Package / Case	Weight	Weight

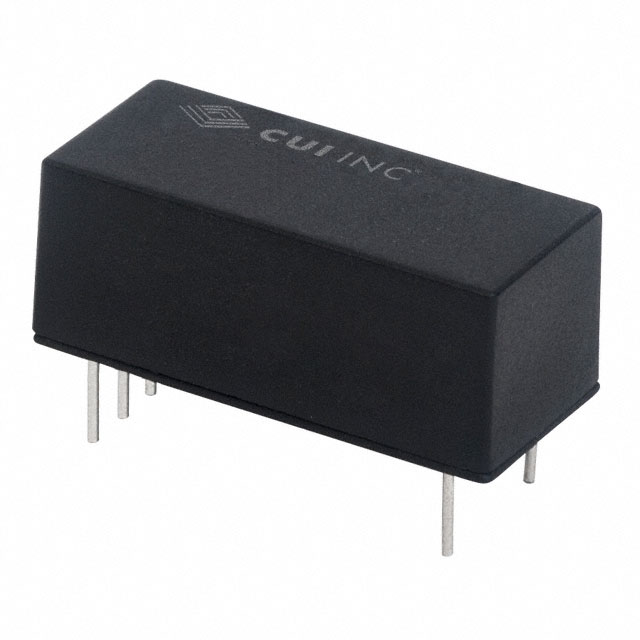

CUI Inc. VLD25-500-DIP	Remote On/Off SCP	Through Hole	22.9 mm	9.5 mm	0.9 in	10.2 mm	0.37 in	0.4 "	95 %	Constant Current	46 V	Analog PWM	18 W	36 V	3.3 V	5.5 V	500 mA	71 °C	-40 C	4.08 g	0.009 lb	CE EN IEC	Buck	1	6-DIP Module

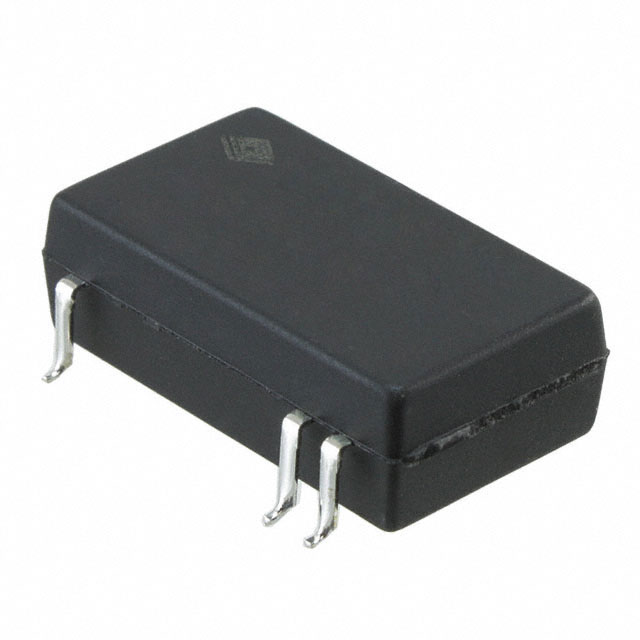

CUI Inc. VLD25-300-SMT-TR	Remote On/Off SCP	Surface Mount	0.94 " 23.9 mm	0.31 in 8 mm		0.71 in 18.1 mm			96 %	Constant Current	48 V	Analog PWM	11 W	36 V	3.3 V	5.5 V	0.3 A	85 °C	-40 C				Buck	1	16-SMD Gull Wing 6 Leads	0.013 lb	5.9 g
CUI Inc. VLD25-300-DIP	Remote On/Off SCP	Through Hole	22.9 mm	9.5 mm	0.9 in	10.2 mm	0.37 in	0.4 "	95 %	Constant Current	46 V	Analog PWM	11 W	36 V	3.3 V	5.5 V	0.3 A	85 °C	-40 C	4.08 g	0.009 lb	CE EN IEC	Buck	1	6-DIP Module
CUI Inc. VLD25-700-DIP	Remote On/Off SCP	Through Hole	22.9 mm	9.5 mm	0.9 in	10.2 mm	0.37 in	0.4 "	95 %	Constant Current	46 V	Analog PWM	25 W	36 V	3.3 V	5.5 V	700 mA	71 °C	-40 C	4.08 g	0.009 lb	CE EN IEC	Buck	1	6-DIP Module
CUI Inc. VLD25-350-SMT-TR	Remote On/Off SCP	Surface Mount	0.94 " 23.9 mm	0.31 in 8 mm		0.71 in 18.1 mm			96 %	Constant Current	48 V	Analog PWM	13 W	36 V	3.3 V	5.5 V	350 mA	85 °C	-40 C				Buck	1	16-SMD Gull Wing 6 Leads	0.013 lb	5.9 g
CUI Inc. VLD25-350-DIP	Remote On/Off SCP	Through Hole	22.9 mm	9.5 mm	0.9 in	10.2 mm	0.37 in	0.4 "	95 %	Constant Current	46 V	Analog PWM	13 W	36 V	3.3 V	5.5 V	350 mA	85 °C	-40 C	4.08 g	0.009 lb	CE EN IEC	Buck	1	6-DIP Module
