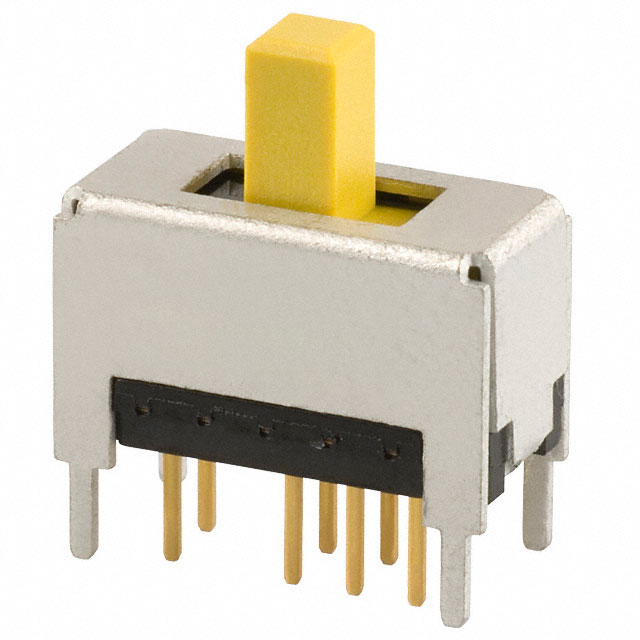

CRFS-2304 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH SLIDE DP3T 100MA 12V
| Part | Actuator Material | Operating Force [Min] | Operating Force [Max] | Switch Travel | Electrical Life | Circuit | Mounting Type | Switch Function | Contact Material | Actuator Type | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Contact Timing | Current Rating (Amps) | Termination Style | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | Polyamide (PA) Nylon | 153 gf | 255 gf | 2 mm | 10000 Cycles | DP3T | Through Hole | On-On-On | Copper Alloy | Standard | 10 mm | 85 °C | -40 C | Gold | Non-Shorting (BBM) | 100 mA | PC Pin | 12 V |
