RJE72488 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

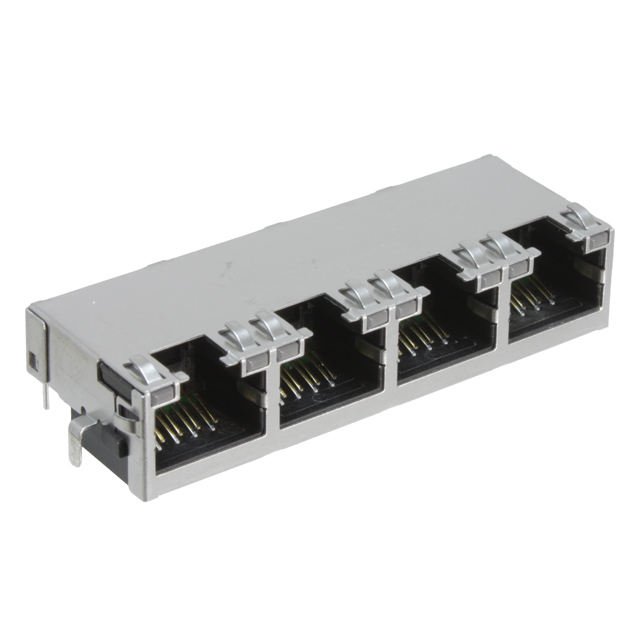

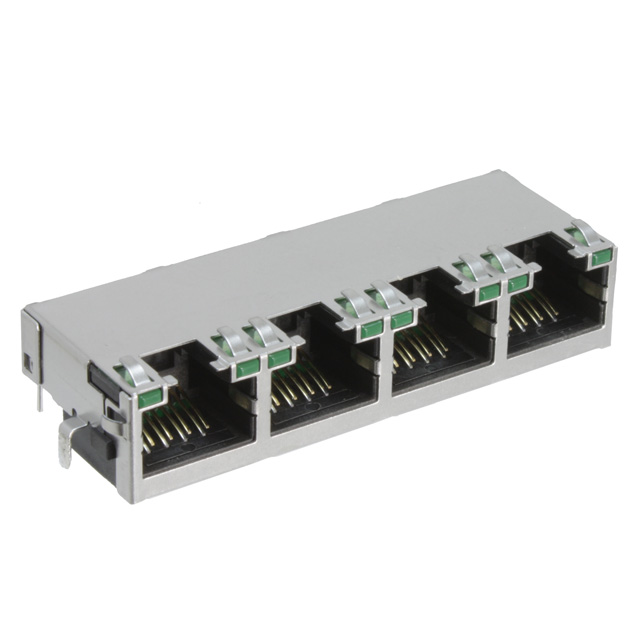

CONN MOD JACK 8P8C R/A SHLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Tab Direction | Number of Rows | Termination | Orientation | Connector Type | Shielding | Mounting Type | Number of Ports | Number of Positions/Contacts | Contact Finish | Contact Material | LED Color | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Yellow - Green | Cat5e |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Green Yellow | Cat5e |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Green - Green | Cat5e |
 Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Green - Green | Cat5e |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Yellow - Yellow | Cat5e |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Green Red Yellow | Cat5e |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Yellow - Green | Cat5e |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Green - Yellow | Cat5e |
Amphenol ICC (Commercial Products) | 50 µin | 1.27 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Green - Yellow | Cat5e |
Amphenol ICC (Commercial Products) | 15 µin | 0.38 µm | 85 °C | -40 C | Thermoplastic | Up | 1 | Solder | 90 ° | Jack | EMI Finger Shielded | Board Edge Panel Mount Through Hole | 4 | 8p8c (RJ45 Ethernet) | Gold | Phosphor Bronze | Green - Yellow | Cat5e |
