1522 Series

Catalog

CONN BARRIER STRP 22CIRC 0.375"

Part	Material Flammability Rating	Terminal Screw Material	Mounting Type	Operating Temperature	Material - Insulation	Current Rating (Amps)	Number of Wire Entries	Terminal Block Type	Bottom Termination	Features	Top Termination	Pitch	Pitch	Number of Circuits	Wire Gauge [Max]	Wire Gauge [Min]	Barrier Type	Number of Rows [custom]	Terminal Screw Finish
Curtis Industries 1522W	UL94 V-0	Steel	Chassis Panel	110 °C	Polyphenylene Oxide (PPO)	20 A	44	Barrier Block	Closed	Flange	Screws with Captive Plate	9.53 mm	0.375 in	22	22 AWG	10 AWG	2 Wall (Dual)	2
Curtis Industries 1522-3/4ST	UL94 V-0		Chassis Panel	110 °C	Polyphenylene Oxide (PPO)	20 A	44	Barrier Block	Closed	Flange	Screws with Solder Lugs Single	9.53 mm	0.375 in	22	22 AWG	10 AWG	2 Wall (Dual)	2	Tin
Curtis Industries 1522-ST	UL94 V-0		Chassis Panel	110 °C	Polyphenylene Oxide (PPO)	20 A	44	Barrier Block	Closed	Flange	Dual Screws with Solder Lugs	9.53 mm	0.375 in	22	22 AWG	10 AWG	2 Wall (Dual)	2	Tin
Curtis Industries 1522-YSY	UL94 V-0	Steel	Chassis Panel Through Hole	110 °C	Polyphenylene Oxide (PPO)	20 A	44	Barrier Block	PC Pin	Flange	Screws	9.53 mm	0.375 in	22	22 AWG	10 AWG	2 Wall (Dual)	2

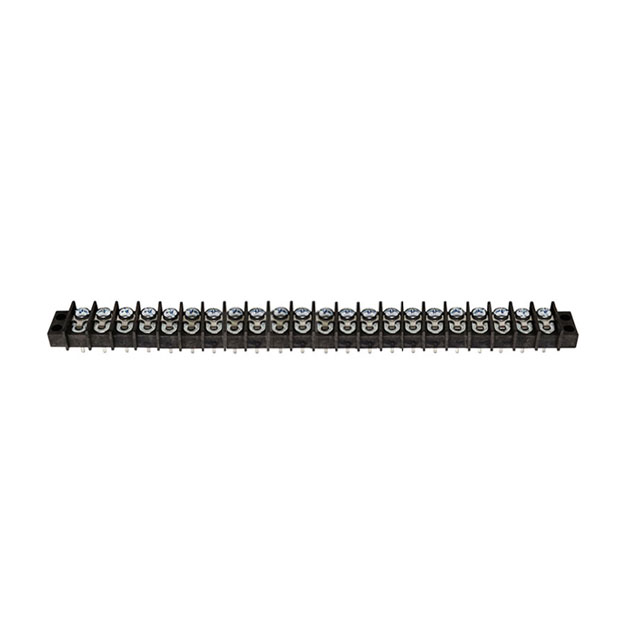

Curtis Industries 1522-Y	UL94 V-0	Steel	Chassis Panel Through Hole	110 °C	Polyphenylene Oxide (PPO)	20 A	44	Barrier Block	PC Pin	Flange	Screws	9.53 mm	0.375 in	22	22 AWG	10 AWG	2 Wall (Dual)	2
