DEUTSCH 369 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

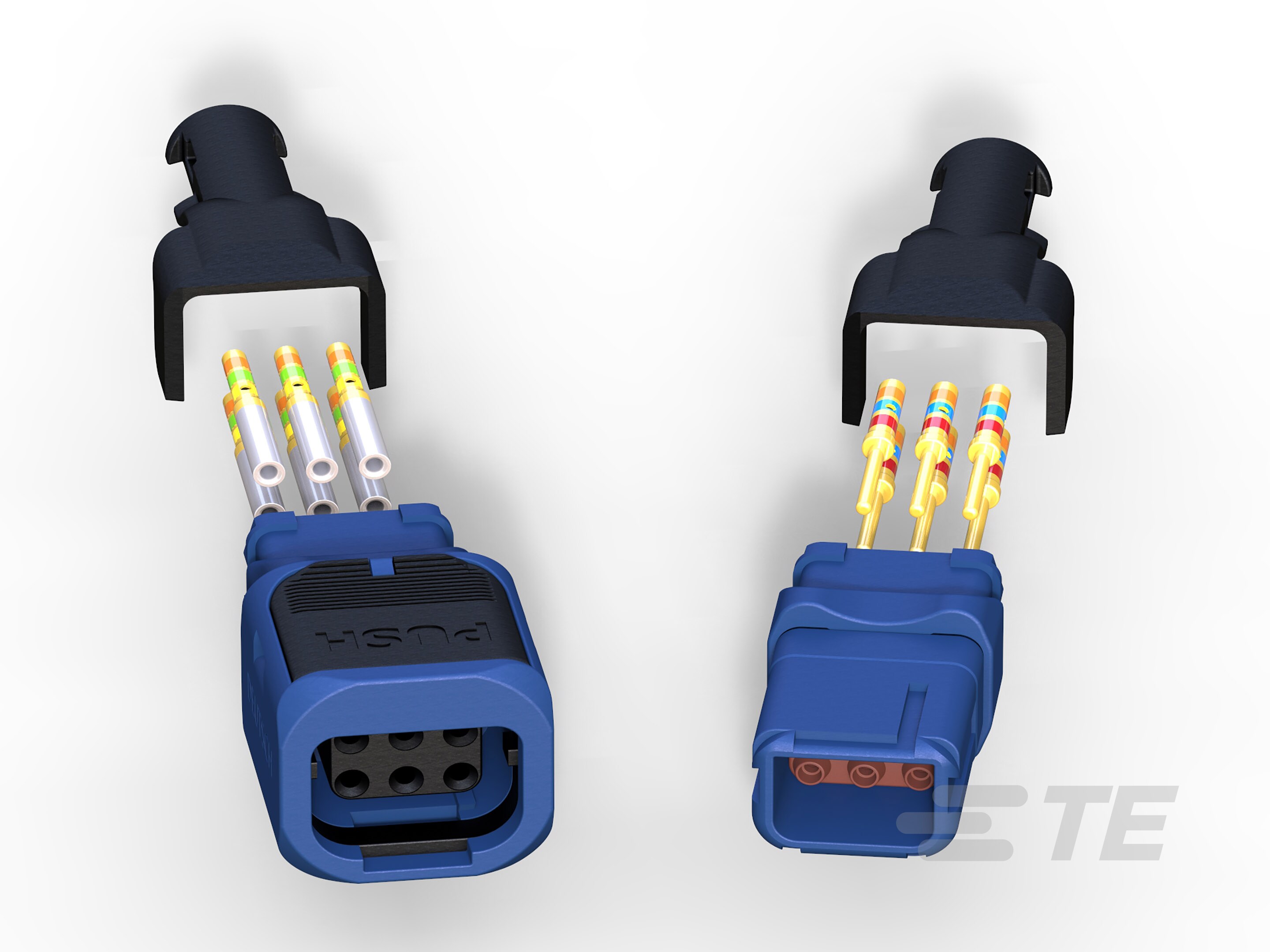

CONN RECTANGULAR M 9 POS 2.54MM CRIMP ST CABLE MOUNT
...
| Part | Number of Positions | Fastening Type | Contact Type | Features | Insulation Material | Number of Rows [custom] | Mounting Type | Color | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Material Flammability Rating | Style | Voltage Rating | Number of Rows | Termination | Current Rating (Amps) | Insulation Color | Contact Finish - Mating | Number of Positions Loaded | Contact Finish | Pitch | Pitch | Row Spacing | Row Spacing | Wire Type | Cable Termination | Wire Gauge [Max] | Wire Gauge [Min] | Shrouding | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 9 | Friction Lock | Male or Female | IP67 | Thermoplastic | 3 | Free Hanging (In-Line) | Black | Crimp | 175 °C | -55 C | Receptacle | ||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Push-Pull | Female Socket | Through Hole | 175 °C | -55 C | Receptacle | 0.1 " | 2.54 mm | Gold | UL94 V-0 | Board to Cable/Wire | 400 VAC 500 V | 1 | Solder | 5 A | Black | Gold | All | ||||||||||||||||||||
TE Connectivity AMP Connectors | 9 | Push-Pull | Male Pin | Sealed | 3 | Free Hanging (In-Line) | Yellow | Plug | Gold | 0.1 " | 2.54 mm | 2.54 mm | 0.1 " | Discrete | Crimp | 24 AWG | 19.5 AWG | |||||||||||||||||||||
 TE Connectivity AMP Connectors | 6 | Push-Pull | Female Socket | Sealed | 2 | Free Hanging (In-Line) | Red | Plug | Gold | 0.1 " | 2.54 mm | 2.54 mm | 0.1 " | Discrete | Crimp | 24 AWG | 19.5 AWG | |||||||||||||||||||||
TE Connectivity AMP Connectors | 9 | Push-Pull | Male Pin | Board Guide | Thermoplastic | 3 | Panel Mount Right Angle Through Hole | 175 °C | -55 C | Header | 0.1 " | 2.54 mm | Gold | Board to Cable/Wire | 400 VAC 500 V | Solder | 5 A | Yellow | Gold | All | Shrouded - 4 Wall | Circular | 0.1 in | 2.54 mm | Phosphor Bronze | |||||||||||||
 TE Connectivity AMP Connectors | Female Socket | IP65 | Free Hanging (In-Line) | Black | Plug | 1 | Gold | 0.1 " | 2.54 mm | Crimp | 28 AWG | 22 AWG | ||||||||||||||||||||||||||
TE Connectivity AMP Connectors | Push-Pull | Male Pin | Sealed | Free Hanging (In-Line) | Green | Receptacle | 1 | Gold | 0.1 " | 2.54 mm | Discrete | Crimp | 28 AWG | 22 AWG | ||||||||||||||||||||||||
TE Connectivity AMP Connectors | 6 | Push-Pull | Male Pin | Sealed | 2 | Free Hanging (In-Line) | Black | Receptacle | Gold | 0.1 " | 2.54 mm | 2.54 mm | 0.1 " | Discrete | Crimp | 24 AWG | 19.5 AWG | |||||||||||||||||||||
TE Connectivity AMP Connectors | 6 | Push-Pull | Male Pin | Sealed | Thermoplastic | 2 | Free Hanging (In-Line) | Green | Crimp | 175 °C | -55 C | Plug | 0.1 " | 2.54 mm | 2.54 mm | 0.1 " | ||||||||||||||||||||||
TE Connectivity AMP Connectors | 9 | Push-Pull | Male Pin | Sealed | 3 | Free Hanging (In-Line) | Red | Receptacle | Gold | 0.1 " | 2.54 mm | 2.54 mm | 0.1 " | Discrete | Crimp | 28 AWG | 22 AWG |
