FZ23RS Series

Catalog

OM4 2 FIBER 3MM JACKET PATCHCORD RISER S

Part	2nd Connector	1st Connector	Length - Overall [x]	Length - Overall [x]	Return Loss	Type	Bend Radius [radius]	Fiber Type	Insertion Loss	Cable Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Color - Connectors	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall

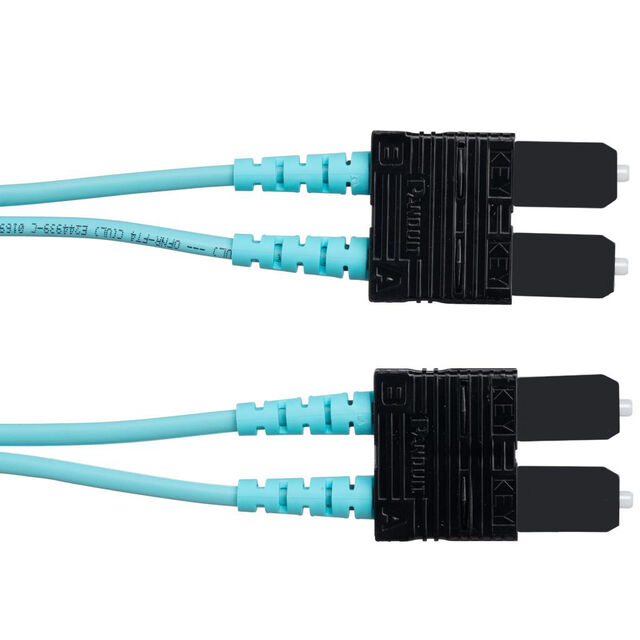

Panduit Corp FZ23RSNSNSNM002	SC Duplex	SC Duplex	6.6 ft	2 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C
Panduit Corp FZ23RSNSNSNM001	SC Duplex	SC Duplex	3.3 ft	1 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C
Panduit Corp FZ23RSNSNSNF010	SC Duplex	SC Duplex	10 ft	3.1 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C
Panduit Corp FZ23RSNSNSNM019	SC Duplex	SC Duplex	62.3 ft	19 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C
Panduit Corp FZ23RSNSNSNM8.5	SC Duplex	SC Duplex			26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C	8.5 m	28 ft
Panduit Corp FZ23RSNSNSNM007	SC Duplex	SC Duplex	23 ft	7 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C
Panduit Corp FZ23RSNSNSNM012	SC Duplex	SC Duplex	39.4 ft	12 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C

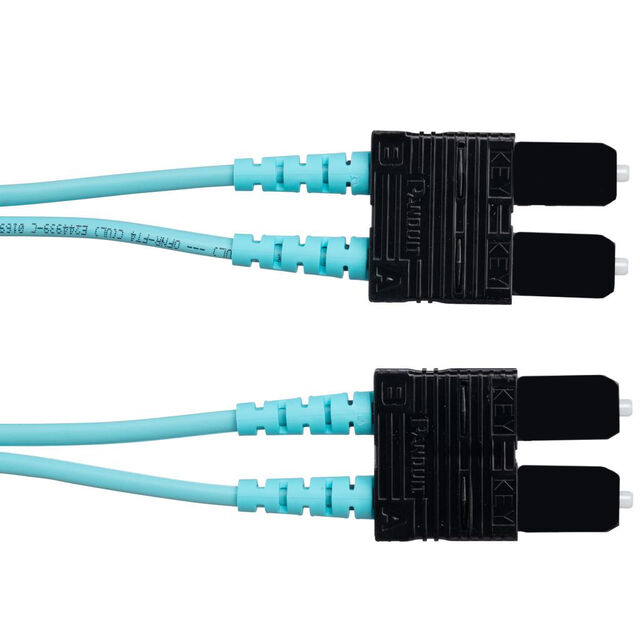

Panduit Corp FZ23RSNSNSNM008	SC Duplex	SC Duplex	26.2 ft	8 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C
Panduit Corp FZ23RSNSNSNM044	SC Duplex	SC Duplex	144.3 ft	44 m	26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C
Panduit Corp FZ23RSNSNSNF011	SC Duplex	SC Duplex	11 ft		26 dB	Duplex Multimode OM4	29 mm	50/125	0.25 dB	Buffered Fiber	3 mm	0.12 in	Black	-20 C	70 °C	3.4 m
