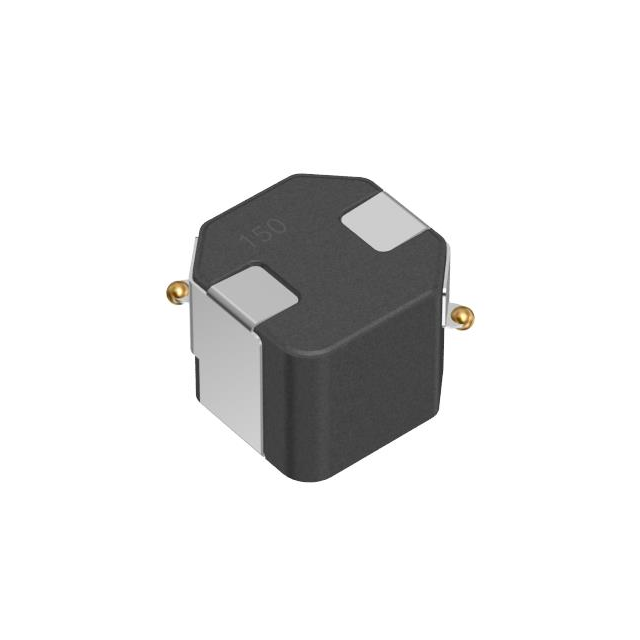

SPM7054VC Series
Manufacturer: TDK Corporation
Beta
⌘K
POWER INDUCTOR, 22UH, SHIELDED, 4.7A ROHS COMPLIANT: YES
| Part | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance | Material - Core | Mounting Type | Current - Saturation (Isat) | Shielding | Ratings | DC Resistance (DCR) | Current Rating (Amps) | Inductance Frequency - Test | Tolerance | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Drum Core Wirewound | 5.4 mm | 0.213 in | Nonstandard | 155 C | -55 C | 7.5 mm | 0.276 in | 0.295 " | 7 mm | 22 µH | Metal Composite | Surface Mount | 6.4 A | Shielded | AEC-Q200 | 65.2 mOhm | 4 A | 100 kHz | 20 % | 7054 |
 TDK Corporation | Drum Core Wirewound | 5.4 mm | 0.213 in | Nonstandard | 155 C | -55 C | 7.5 mm | 0.276 in | 0.295 " | 7 mm | 100 µH | Metal Composite | Surface Mount | 2.6 A | Shielded | AEC-Q200 | 334 mOhm | 1.8 A | 100 kHz | 20 % | 7054 |
