MAX16990 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

36V BOOST 1 MHZ IN UMAX OR TQFN

Part	Output Type	Number of Outputs	Grade	Output Phases	Topology	Function	Control Features	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Frequency - Switching [Min]	Frequency - Switching [Max]	Duty Cycle (Max) [Max]	Supplier Device Package	Qualification	Output Configuration	Mounting Type	Supplied Contents	Board Type	Utilized IC / Part	Current - Output	Main Purpose	Frequency - Switching	Outputs and Type	Outputs and Type	Voltage - Output	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case
Analog Devices Inc./Maxim Integrated MAX16990ATCD/VY+T	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	12-WFQFN Exposed Pad	220 kHz	1 MHz	93 %	12-TQFN-SW (3x3)	AEC-Q100	Positive	Surface Mount Wettable Flank
Analog Devices Inc./Maxim Integrated MAX16990ATCF/V+	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	12-WFQFN Exposed Pad	220 kHz	1 MHz	93 %	12-TQFN (3x3)	AEC-Q100	Positive	Surface Mount
Analog Devices Inc./Maxim Integrated MAX16990ATCE/V+	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	12-WFQFN Exposed Pad	220 kHz	1 MHz	93 %	12-TQFN (3x3)	AEC-Q100	Positive	Surface Mount

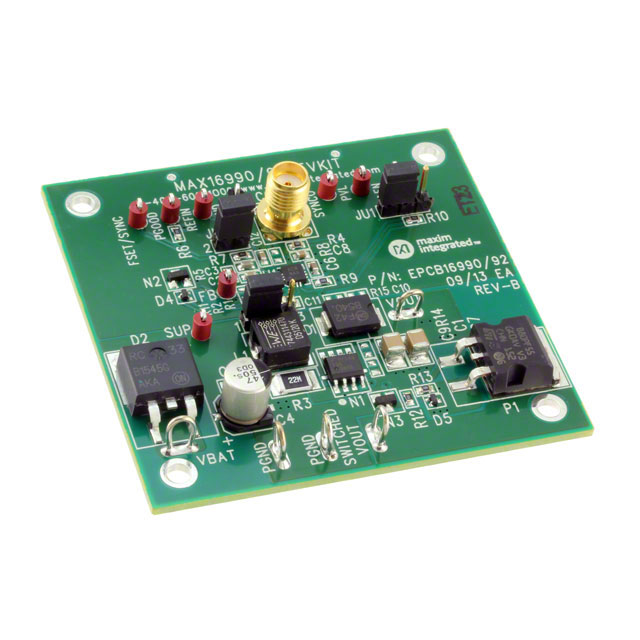

Analog Devices Inc./Maxim Integrated MAX16990EVKIT#																				Board(s)	Fully Populated	MAX16990	2 A	DC/DC Converter	400 kHz	Non-Isolated	1	8 V	Boost	4.5 V	36 V
Analog Devices Inc./Maxim Integrated MAX16990AUBA/V+	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	10-MSOP 10-TFSOP Exposed Pad	220 kHz	1 MHz	93 %	10-uMAX-EP	AEC-Q100	Positive	Surface Mount													0.118 in 3 Lead
Analog Devices Inc./Maxim Integrated MAX16990AUBB/V+	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	10-MSOP 10-TFSOP Exposed Pad	220 kHz	1 MHz	93 %	10-uMAX-EP	AEC-Q100	Positive	Surface Mount													0.118 in 3 Lead
Analog Devices Inc./Maxim Integrated MAX16990AUBA/V+T	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	10-MSOP 10-TFSOP Exposed Pad	220 kHz	1 MHz	93 %	10-uMAX-EP	AEC-Q100	Positive	Surface Mount													0.118 in 3 Lead
Analog Devices Inc./Maxim Integrated MAX16990ATCC/V+T	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	12-WFQFN Exposed Pad	220 kHz	1 MHz	93 %	12-TQFN (3x3)	AEC-Q100	Positive	Surface Mount
Analog Devices Inc./Maxim Integrated MAX16990ATCD/VY+	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	12-WFQFN Exposed Pad	220 kHz	1 MHz	93 %	12-TQFN-SW (3x3)	AEC-Q100	Positive	Surface Mount Wettable Flank
Analog Devices Inc./Maxim Integrated MAX16990ATCD/V+T	Transistor Driver	1	Automotive	1	Boost SEPIC	Step-Up Step-Up/Step-Down	Current Limit Enable Frequency Control Power Good	4.5 V	36 V	-40 °C	125 ¯C	12-WFQFN Exposed Pad	220 kHz	1 MHz	93 %	12-TQFN (3x3)	AEC-Q100	Positive	Surface Mount
