CPS Series

Catalog

PUSHBUTTON SWITCHES 22MM METAL BACKLITE RED/GREEN CERAMIC

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Color - Actuator/Cap	Voltage Rating - AC	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]	Actuator Marking	Mounting Type	Panel Cutout Dimensions [diameter]	Termination Style	Voltage Rating - DC	Switch Function	Features	Illumination Type, Color	Actuator Type	Type
SCHURTER Inc. 3-101-428	IP67 - Dust Tight Waterproof	60 °C	-40 C	SPST	100 mA	Clear	42 V	5 VDC	28 VDC	No Marking	Panel Mount Front	22.1 mm	Wire Leads	60 VDC	Off-On	Ceramic Actuator Finger Guide	Green/Red LED	Button Flush Round	Capacitive Illuminated

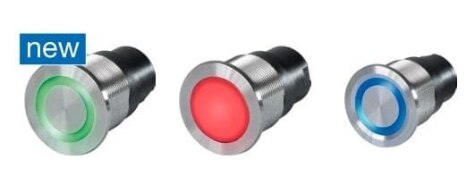

SCHURTER Inc. 3-101-414	IP67 - Dust Tight Waterproof	60 °C	-40 C	SPST-NO	100 mA	Clear	42 V	5 VDC	28 VDC	No Marking	Panel Mount Front	19.1 mm	Wire Leads	60 VDC	Off-Mom	Ceramic Actuator	Blue Green LED Red	Button Flush Round	Capacitive Illuminated
SCHURTER Inc. 3-101-401	IP67 - Dust Tight Waterproof	60 °C	-40 C	SPST	100 mA	Silver	42 V	5 VDC	28 VDC	No Marking	Panel Mount Front	16.1 mm	Wire Leads	60 VDC	Off-On		Green/Red LED	Button Flush Round	Capacitive Illuminated
