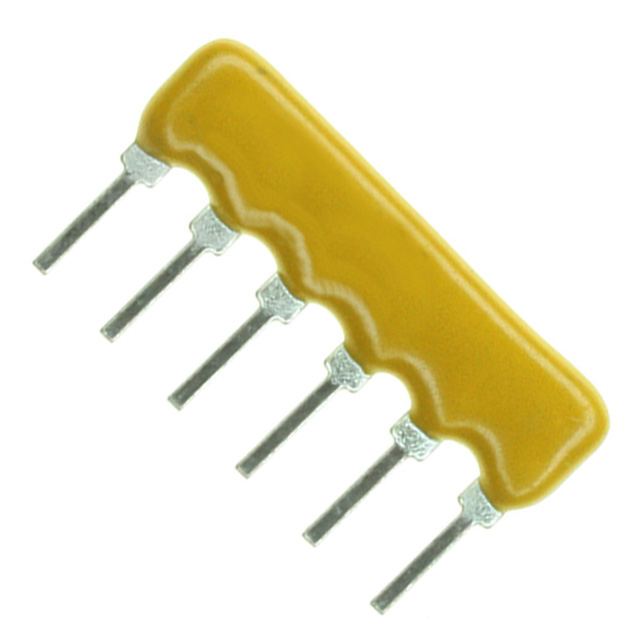

4606X Series
Manufacturer: Bourns Inc.
Beta
⌘K

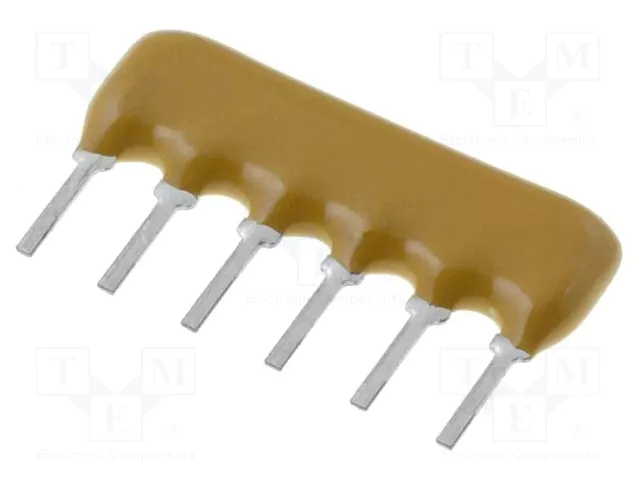

RES ARRAY 5 RES 20K OHM 6SIP
| Part | Resistance (Ohms) | Circuit Type | Power Per Element | Temperature Coefficient | Operating Temperature [Min] | Operating Temperature [Max] | Number of Pins | Mounting Type | Supplier Device Package | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Resistors | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Resistance (Ohms) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 20 kOhms | Bussed | 200 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 5 | 2 % | 5.08 mm | 0.2 in | ||
Bourns Inc. | Isolated | 300 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 3 | 2 % | 5.08 mm | 0.2 in | 1k | ||
Bourns Inc. | 22 Ohms | Bussed | 200 mW | 250 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 5 | 5.08 mm | 0.2 in | ±1Ohm | ||
Bourns Inc. | 1 MΩ | Isolated | 300 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 3 | 2 % | 5.08 mm | 0.2 in | ||
Bourns Inc. | 33 Ohms | Isolated | 300 mW | 250 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 3 | 5.08 mm | 0.2 in | ±1Ohm | ||
Bourns Inc. | Bussed | 200 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 5 | 2 % | 5.08 mm | 0.2 in | 15k | ||
 Bourns Inc. | 1.2 kOhms | Bussed | 200 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 5 | 2 % | 5.08 mm | 0.2 in | ||
Bourns Inc. | 8.2 kOhms | Bussed | 200 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 5 | 2 % | 5.08 mm | 0.2 in | ||
Bourns Inc. | 2.2 kOhms | Isolated | 300 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 3 | 2 % | 5.08 mm | 0.2 in | ||
Bourns Inc. | 270 Ohms | Bussed | 200 mW | 100 ppm/°C | -55 C | 125 °C | 6 | Through Hole | 6-SIP | 6-SIP | 0.598 " | 0.098 in | 2.49 mm | 15.19 mm | 5 | 2 % | 5.08 mm | 0.2 in |
