5BC-3 Series

Catalog

GENERAL PURPOSE VISIBLE DOME-STYLE LED,GREEN/ORANGE-RED,WHITE DIFFUSED,LED-2B

Part	Color	Lens Size	Lens Size	Mounting Type	Configuration	Lens Color	Voltage - Forward (Vf) (Typ)	Lens Style	Lens Transparency	Viewing Angle	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak	Supplier Device Package	Height (Max) [Max] [z]	Current - Test	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating	Size / Dimension [diameter]

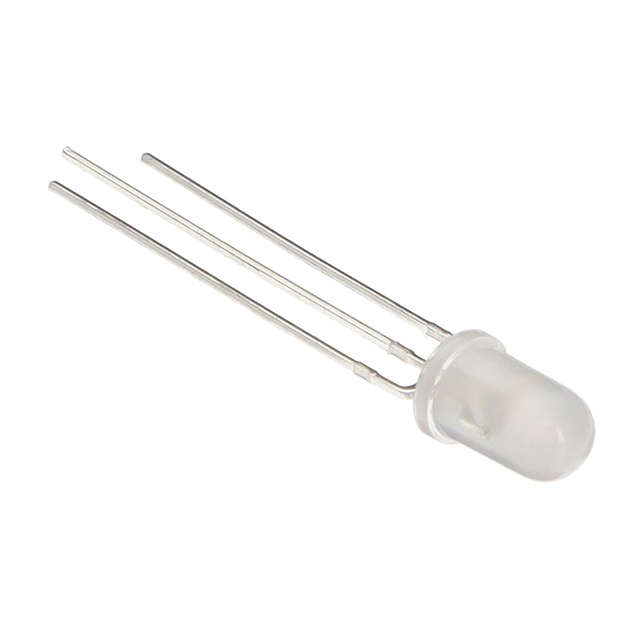

Bivar Inc. 5BC-3-F	Green Red	5 mm	T-1 3/4	Through Hole	Common Cathode	White	2 V 2.1 V	Round with Domed Top	Diffused	40 °	Radial - 3 Leads	35 mcd	35 mcd	20 mA	20 mA	568 nm 625 nm	T-1 3/4	8.6 mm

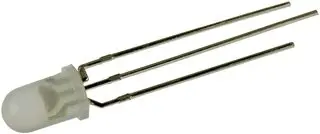

Bivar Inc. 5BC-3-CA-F	Green Red	5 mm	T-1 3/4	Through Hole	Common Anode	White	2 V 2.1 V	Round with Domed Top	Diffused	40 °	Radial - 3 Leads	4 mcd	6 mcd	20 mA	20 mA	568 nm 625 nm	T-1 3/4	8.6 mm
Bivar Inc. 5BC-3-Y/G	Green Yellow	5 mm	T-1 3/4	Through Hole	Common Cathode	White		Round with Domed Top	Diffused	40 °	Radial - 3 Leads					568 nm 590 nm	T-1 3/4	8.6 mm	20 mA 20 mA	2.1 V	2 V	30 mcd 35 mcd
Bivar Inc. 5BC-3-R/Y-CA	Red Yellow	5 mm	T-1 3/4	Through Hole	Common Anode	White	2 V 2 V	Round with Domed Top	Diffused	40 °	Radial - 3 Leads					590 nm 625 nm	T-1 3/4 (5mm)	10.31 mm	20 mA 20 mA			4 mcd 4 mcd	5 mm

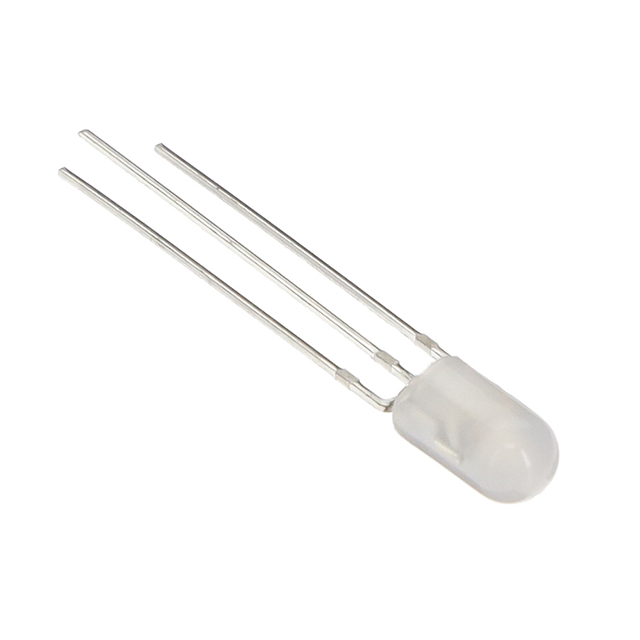

Bivar Inc. 5BC-3	Green Red	5 mm	T-1 3/4	Through Hole	Common Cathode	White	2 V 2.1 V	Round with Domed Top	Diffused	40 °	Radial - 3 Leads	35 mcd	35 mcd	20 mA	20 mA	568 nm 625 nm	T-1 3/4	8.6 mm
