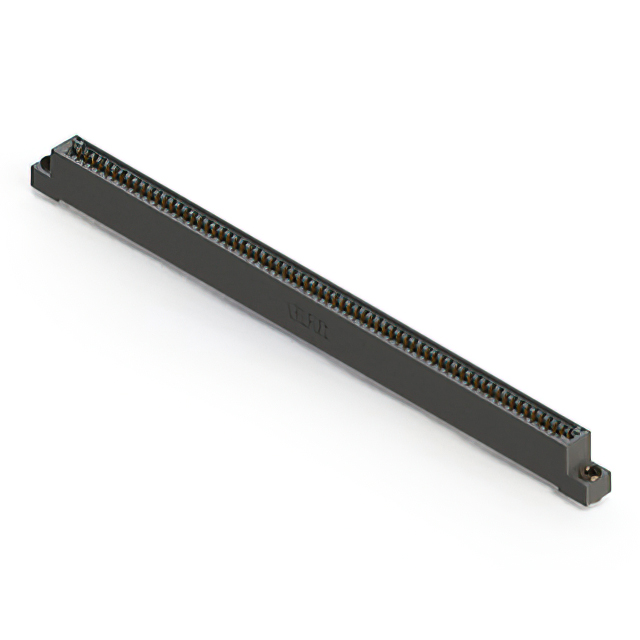

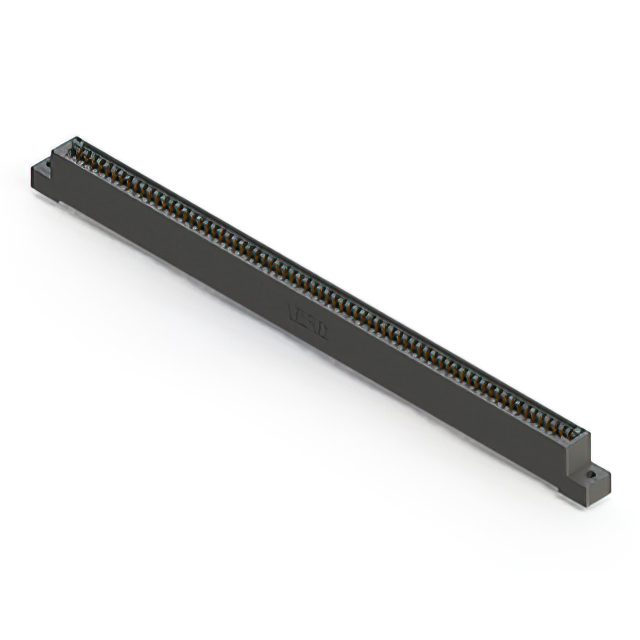

395-070 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE DUAL FMALE 70POS 0.100
...
| Part | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Termination | Features | Flange Feature | Contact Finish | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Gender | Read Out | Number of Rows | Termination Rows | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole Right Angle | Solder | Card Guides | 4-40 Threaded Insert Top Mount Opening | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 35 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Dual | 2 | 2 | Non Specified - Dual Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | Solder | Flush Mount Top Opening Unthreaded | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 35 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Dual | 2 | 2 | Non Specified - Dual Edge | 3.96 mm | 0.156 in | |||
 EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | Solder | 4-40 Threaded Insert Top Mount Opening | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 70 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Single | 1 | 1 | Non Specified - Single Edge | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole Right Angle | Solder | M3 Threaded Insert Top Mount Opening | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 35 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Dual | 2 | 2 | Non Specified - Dual Edge | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole Right Angle | Solder | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 70 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Single | 1 | 1 | Non Specified - Single Edge | ||||
 EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | Solder | Floating Bobbin Flush Mount | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 70 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Single | 1 | 1 | Non Specified - Single Edge | 2.95 mm | 0.116 in | |||
 EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | Solder | Flush Mount M3 Threaded Insert Top Opening | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 35 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Dual | 2 | 2 | Non Specified - Dual Edge | |||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | Wire Wrap | Card Guides | 4-40 Threaded Insert Top Mount Opening | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 70 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Single | 1 | 1 | Non Specified - Single Edge | ||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Through Hole | Wire Wrap | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 35 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Dual | 2 | 2 | Non Specified - Dual Edge | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Board Edge Straddle Mount | Solder | Card Extender | Gold | Cantilever | 70 | 2.54 mm | 0.1 in | 35 | -40 °C | 105 ░C | Black | Copper Alloy | Female | Dual | 2 | 2 | Non Specified - Dual Edge | 3.25 mm | 0.128 in |
