PE4001 Series
Manufacturer: Pasternack
Beta
⌘K
HD-BNC(F) SOLDER ATTACH
| Part | Body Finish | Body Material | Center Contact Plating | Dielectric Material | Mounting Type | Center Contact Material | Fastening Type | Impedance | Housing Color | Connector Style | Frequency - Max [Max] | Shield Termination | Number of Ports | Connector Type | Contact Termination | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Through Hole | Brass | Bayonet Lock | 75 Ohms | Silver | BNC HD | 12 GHz | Solder | 1 | Female Socket Jack | Solder | |
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Panel Mount Through Hole | Brass | Bayonet Lock | 75 Ohms | Silver | BNC HD | 12 GHz | Solder | 1 | Female Socket Jack | Solder | Bulkhead - Front Side Nut |
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Panel Mount Right Angle Through Hole | Brass | Bayonet Lock | 75 Ohms | Silver | BNC | 12 GHz | Solder | 1 | Female Socket Jack | Solder | Bulkhead - Front Side Nut |
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Panel Mount | Brass | Bayonet Lock | 75 Ohms | Silver | BNC | 12 GHz | Solder | 1 | Female Socket Jack | Solder | Bulkhead - Front Side Nut |
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Panel Mount Right Angle Through Hole | Brass | Snap-On | 75 Ohms | Silver | 1.0/2.3 | 12 GHz | Solder | 1 | Female Socket Jack | Solder | Bulkhead - Front Side Nut |
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Panel Mount Right Angle Through Hole | Brass | Bayonet Lock | 75 Ohms | Silver | BNC HD | 12 GHz | Solder | 1 | Female Socket Jack | Solder | Bulkhead - Front Side Nut |
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Through Hole | Brass | Bayonet Lock | 75 Ohms | Silver | BNC | 12 GHz | Solder | 1 | Female Socket Jack | Solder | |
 Pasternack | Nickel | Brass | Gold | Polytetrafluoroethylene (PTFE) | Board Edge End Launch Panel Mount | Brass | Bayonet Lock | 75 Ohms | Silver | BNC HD | 12 GHz | Solder | 1 | Female Socket Jack | Solder | Bulkhead - Front Side Nut |

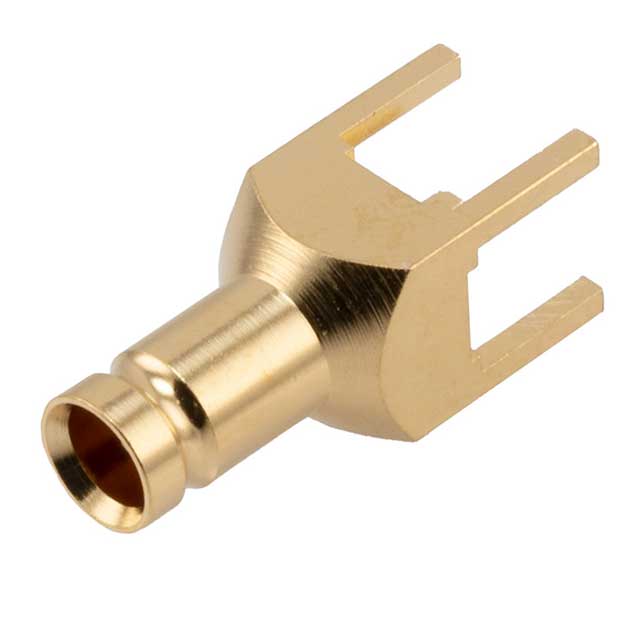

 Pasternack | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | Through Hole | Brass | Snap-On | 75 Ohms | Gold | 1.0/2.3 | 12 GHz | Solder | 1 | Female Socket Jack | Solder |
