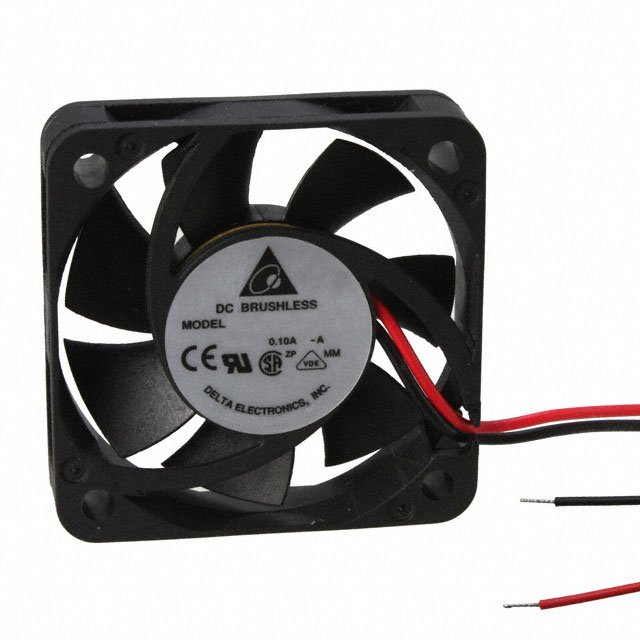

AFB0405 Series

Catalog

FAN AXIAL 40X10MM BALL 5VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Frame	Material - Blade	Bearing Type	Features	RPM	Termination	Static Pressure	Static Pressure	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Noise	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Width [y]	Air Flow	Air Flow	Fan Type	Approval Agency
Delta Electronics AFB0405HHA-AF00	70000 Hrs	5.5 V	4 VDC	0.09 A	Plastic	Plastic	Ball	Locked Rotor Protection Speed Sensor (Tach)	7000 RPM	3 Wire Leads	47.3 Pa	0.19 in H2O	5 V	70 °C	-10 °C	14.06 g	0.031 lb	31.5 dB	40 mm	40 mm	450 mW	10 mm	0.23 mł/min	8.2 CFM	Tubeaxial	CE CSA UL VDE
Delta Electronics AFB0405LA-A	70000 Hrs	5.5 V	4.5 V	30 mA	Plastic	Plastic	Ball		4000 RPM	2 Wire Leads	17 Pa	0.068 in H2O	5 V	70 °C	-10 °C	14.06 g	0.031 lb	16 dB	40 mm	40 mm	150 mW	10 mm	0.123 m³/min	4.4 CFM	Tubeaxial	CE CSA UL VDE
Delta Electronics AFB0405VHA-A	70000 Hrs	5.5 V	4.5 V	110 mA	Plastic	Plastic	Ball		8000 RPM	2 Wire Leads	60.3 Pa	0.242 in H2O	5 V	70 °C	-10 °C	14.06 g	0.031 lb	35.5 dB	40 mm	40 mm	550 mW	10 mm	0.26 m³/min	9.3 CFM	Tubeaxial	CE CSA UL VDE

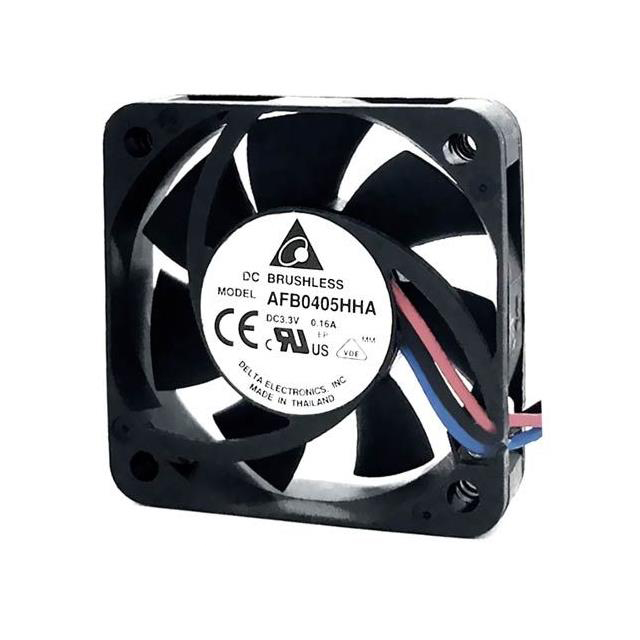

Delta Electronics AFB0405HA-AR00	70000 Hrs	5.5 V	4.5 V	70 mA	Plastic	Plastic	Ball	Locked Rotor Sensor	6000 RPM	3 Wire Leads	34.9 Pa	0.14 in H2O	5 V	70 °C	-10 °C	14.06 g	0.031 lb	27 dB(A)	40 mm	40 mm	350 mW	10 mm	0.193 m³/min	6.9 CFM	Tubeaxial	CE CSA UL VDE
Delta Electronics AFB0405MA-A	70000 Hrs	5.5 V	4.5 V	50 mA	Plastic	Plastic	Ball		5000 RPM	2 Wire Leads	26 Pa	0.104 in H2O	5 V	70 °C	-10 °C	14.06 g	0.031 lb	21.5 dB(A)	40 mm	40 mm	0.25 W	10 mm	0.16 m³/min	5.7 CFM	Tubeaxial	CE CSA UL VDE

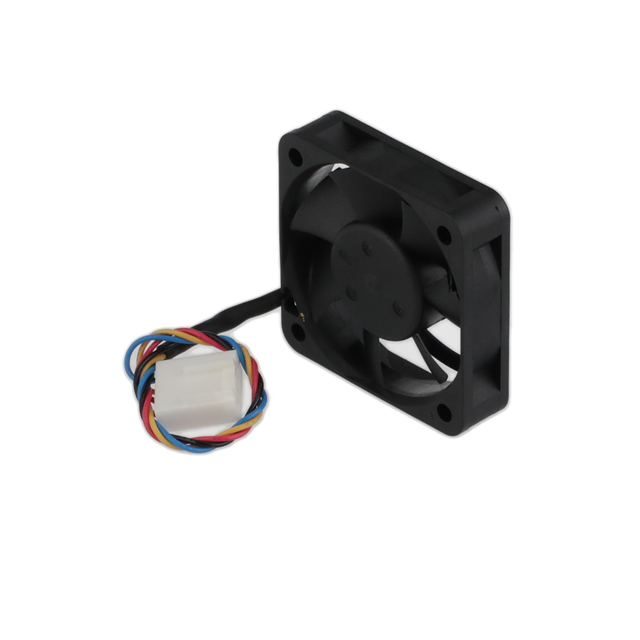

Delta Electronics AFB0405MA-AFGE	70000 Hrs	5.5 V	4.5 V	50 mA	Plastic	Plastic	Ball	Locked Rotor Protection PWM Control Speed Sensor (Tach)	5000 RPM	4 Position Rectangular Connector	26 Pa	0.104 in H2O	5 V	70 °C	-10 °C	14.06 g	0.031 lb	21.5 dB(A)	40 mm	40 mm	0.25 W	10 mm	0.16 m³/min	5.7 CFM	Tubeaxial	CE cURus VDE
