TPS65135 Series
Manufacturer: Texas Instruments
Beta
⌘K
SPLIT-RAIL CONVERTER, SINGLE-INDUCTOR, MULTIPLE-OUTPUT (SIMO) REGULATOR
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Output [Max] | Voltage - Output [Min] | Supplier Device Package | Mounting Type | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Outputs and Type | Outputs and Type | Board Type | Supplied Contents | Contents | Current - Output | Main Purpose | Voltage - Output | Utilized IC / Part | Regulator Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | AMOLED Display Converter | 85 °C | -40 C | 16-WFQFN Exposed Pad | 6 VDC | -7 V | 16-WQFN (3x3) | Surface Mount | 2 | 5.5 V | 2.5 V | ||||||||||

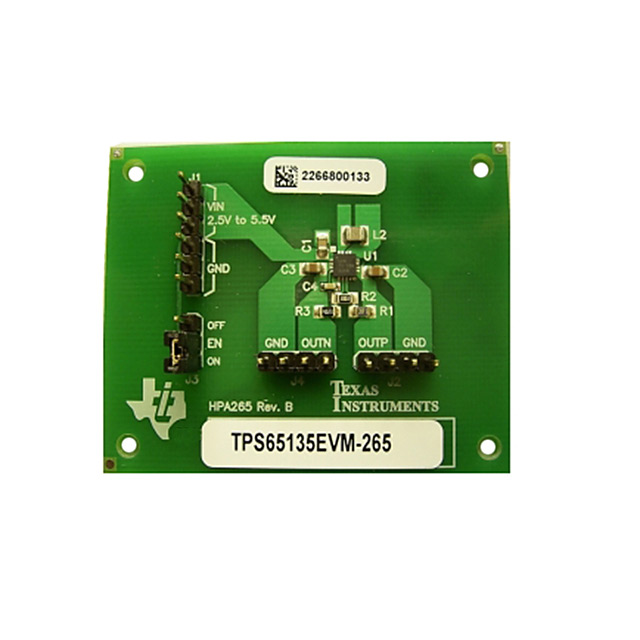

 Texas Instruments | 5.5 V | 2.5 V | 2 | 2 Non-Isolated Outputs Non-Isolated | Fully Populated | Board(s) | Board(s) | 80 mA | DC/DC Positive and Negative | 5 V | TPS65135 | Buck-Boost |
